Antwerpen 29 March 2014 |
|
Name |

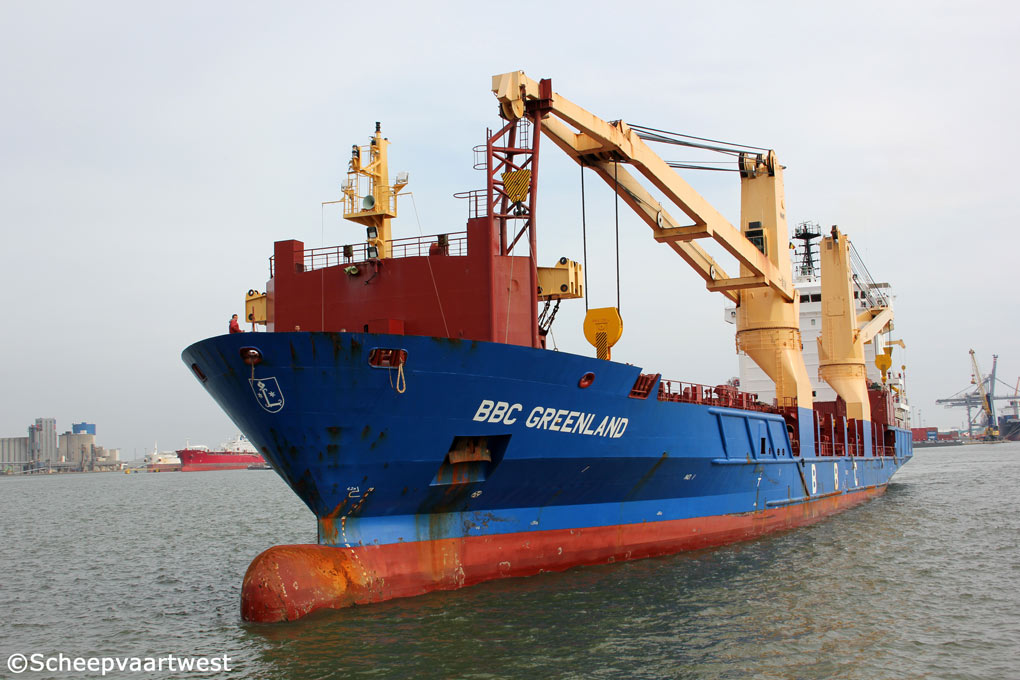

BBC GREENLAND |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Grain and timber fitted - Tweendecker |
|
IMO-number |
9427079 |
|
Call sign |
V2CN2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
7.014 t |
|
DWT |
7.536 t |
|
NT |
3.375 t |
|
Number of 20ft containers |
In hold: 238 On deck: 363 Total: 601 |
|
Number of 40ft containers |
In hold: 112 + 14 TEU On deck: 168 + 27 TEU Total: 280 + 41 TEU |
|
Container capacity 14t |
377 |
|
Reefer capacity |
60 At different positions / increase of sockets possible |
|
Length |
119,81 m overall 113,75 m registered |
|
Breadth |
20,20 m |
|
Draught |
7,59 m |
|
Height above keel |
38,15 m |
|
Freeboard |
2.220 mm |
|
Depth |
9,80 m moulded |
|
Speed |
16,5 knots |
|
Built |
2007 |
|
Keel laid |
16.12.2004 |
|
Launch date |
31.12.2006 |
|
Date of completion |
27.04.2007 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
SB356-2 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Movable bulkhead |
1x Movable - Tweendeck pontoons can be used as bulkhead |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm diesel engine - 6.300 kW at 500 rpm Year of manufacture: 2006 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 155 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 34,69 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 84,00 m² Year of manufacture: 2006 Manufacturer: MP Rohrverformungstechnik GmbH Kirchstr. 15 57629 Norken Federal Republic of Germany |
|
Electric installations |
3x Plants each 400/230 V - 500 kVA 1x Plant 400 V - 750 kVA 1x Plant 400 V - 307 kVA |
|
Shaft generator |
1x 750 kVA / 600 kW |
|
Generators |
3x MAN main diesel generatorsets each 500 kVA / 400 kW |
|
Emergency generator |
1x Diesel generatorset 307 kVA / 205 kW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 750 litres - 12,0 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Number of holds |
2 Hold 1: 6.20 x 9,95 m / 12,35 x 15,15 x 10,80 m Hold 2: 52,00 x 16,10 x 10,80 m |
|
Hold capacity |
Grain/ Bale space: Hold 1: 2.333 m³ / 2.319 m³ Hold 2: 9.167 m³ / 9.132 m³ |
|
Number of hatches |
2 Hatch 1: 6,20 x 10,32 m / 13,00 x 15,53 m Hatch 2: 53,30 x 17,20 m |
|
Hatch cover type |
No. 1 pontoon type No. 2 folding type, can be partly opened and disconnected |
|
Strength |
Tanktop: 16 t/m² Tween deck 1: 2,5 t/m² Tween deck 2: 3,0 t/m² On deck: 2,5 t/m² |
|
Hold ventilation |
Up to 20 air-changes per hour |
|
Tank capacities |
IFO: 775 m³ MGO: 105 m³ Ballast: 3.997 m³ Fresh water: 140 m³ |
|
Anchor equipment |
3x Anchors weight each 4.320 kg Chain length: 550,00 m |
|
Cargo gear |
2x NMF portside - SWL 250 t / 4,5 - 12,00 m 200 t / 4,5 - 15,00 m 150 t / 4,5 - 20,00 m 100 t / 4.5 - 26,00 m 35 t / 2,5 - 34,50 m (No. 2 as above, but 35 t / 2,5 - 31,50 m) Combinable: 500 t |
|
Crew size |
16 persons, 16 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG Hafenstr. 12 26789 Leer Federal Republic of Germany |
|
Operator |
BBC Chartering |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "FÖHR" Hafenstr. 12 26789 Leer Federal Republic of Germany |
|
Latest data adjustment |
04 May 2014 |
