Antwerpen 28 March 2014 |
 |
 |
 |
 |
 |
 |
|||||

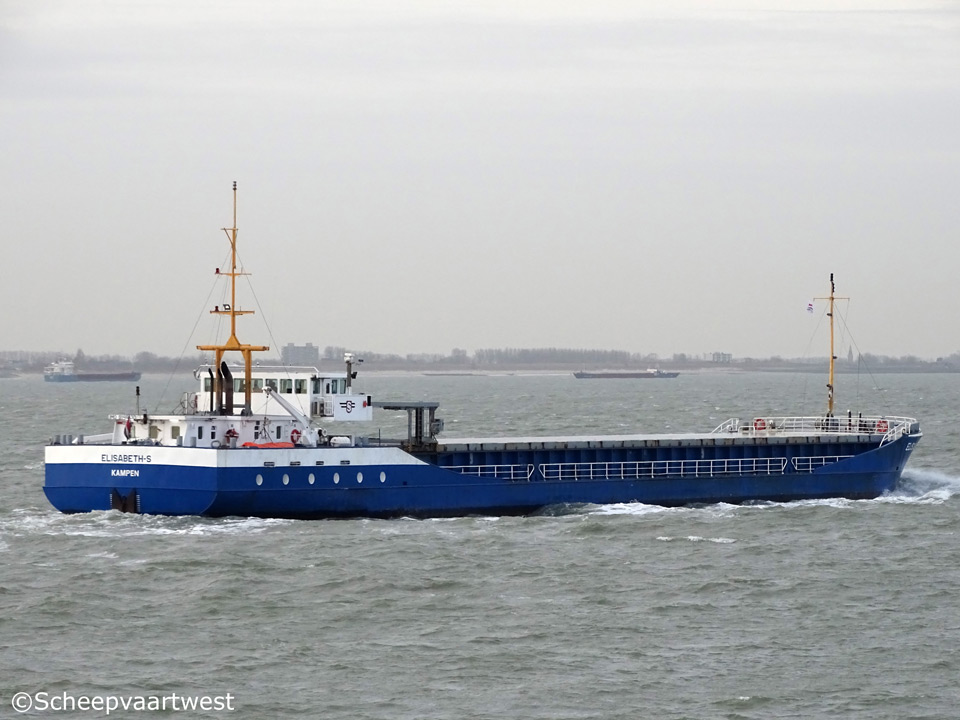

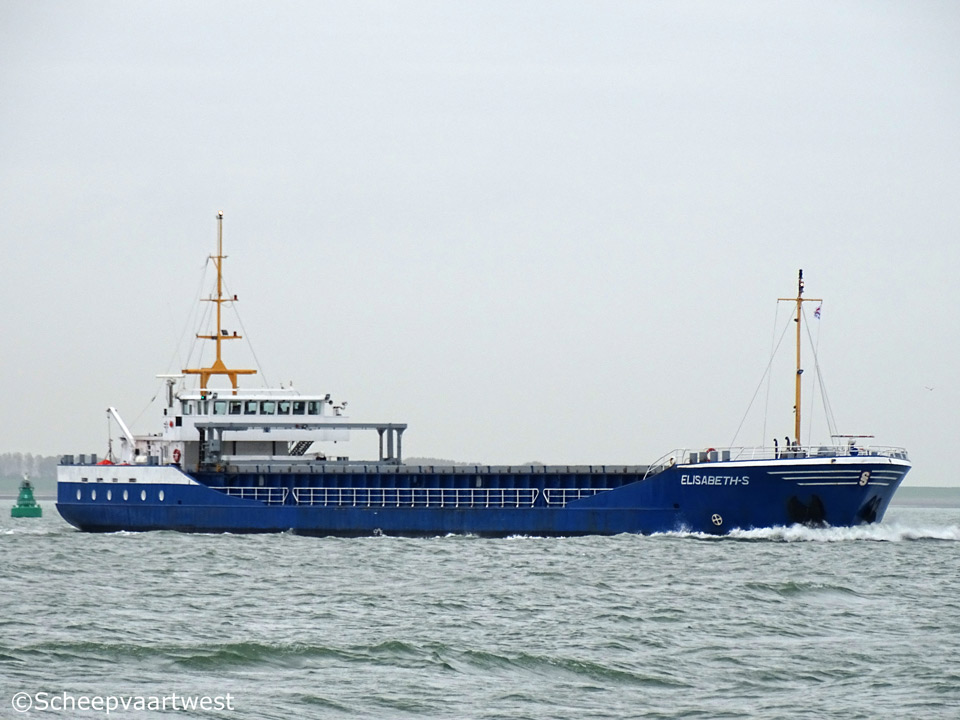

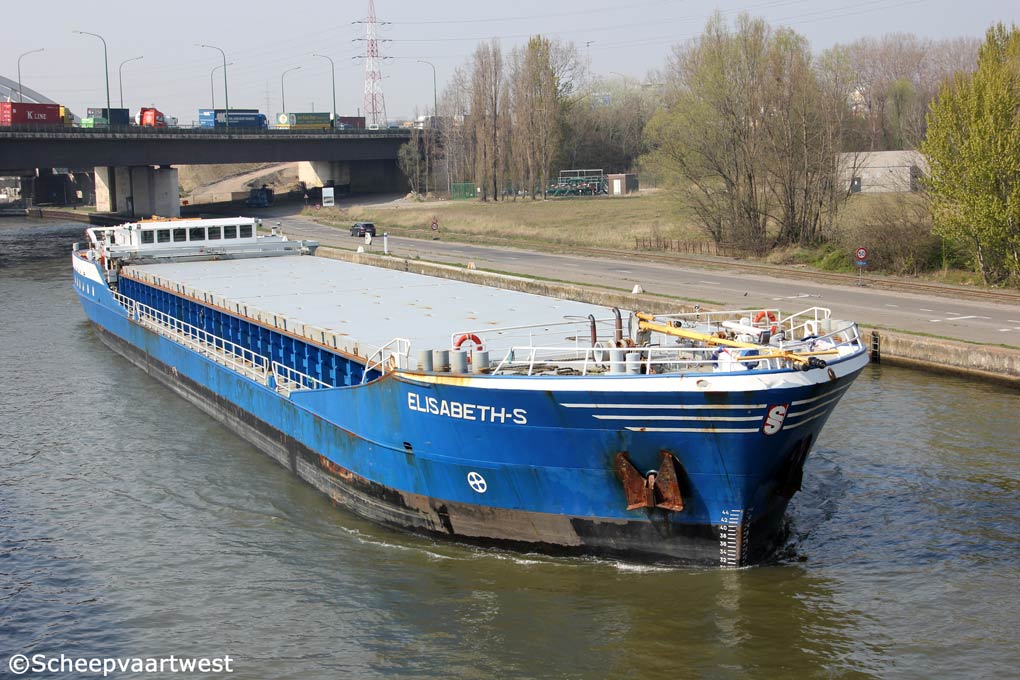

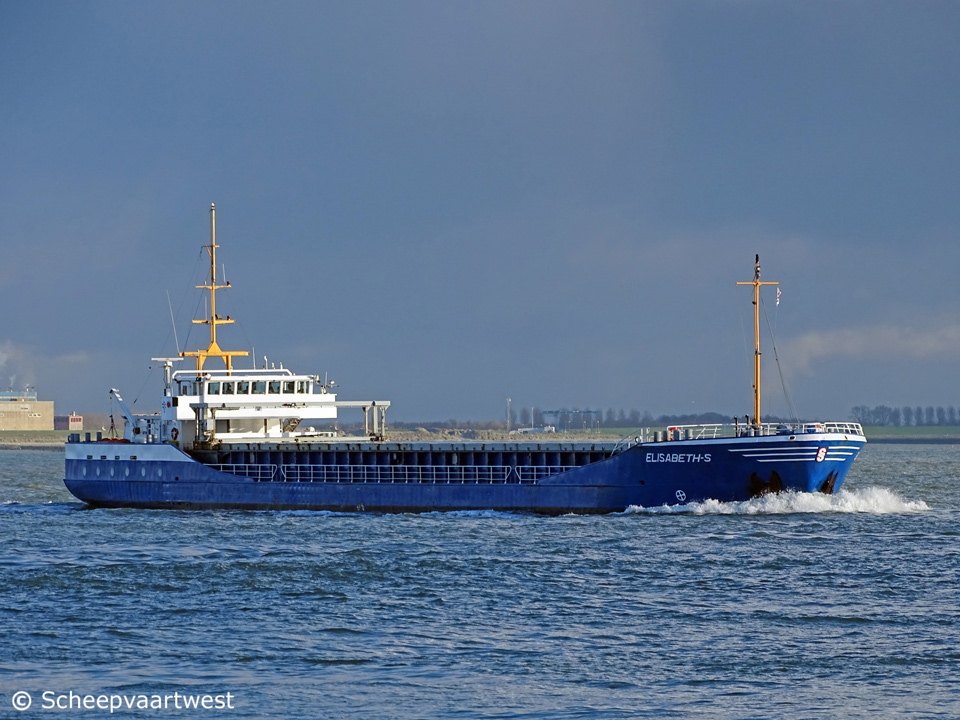

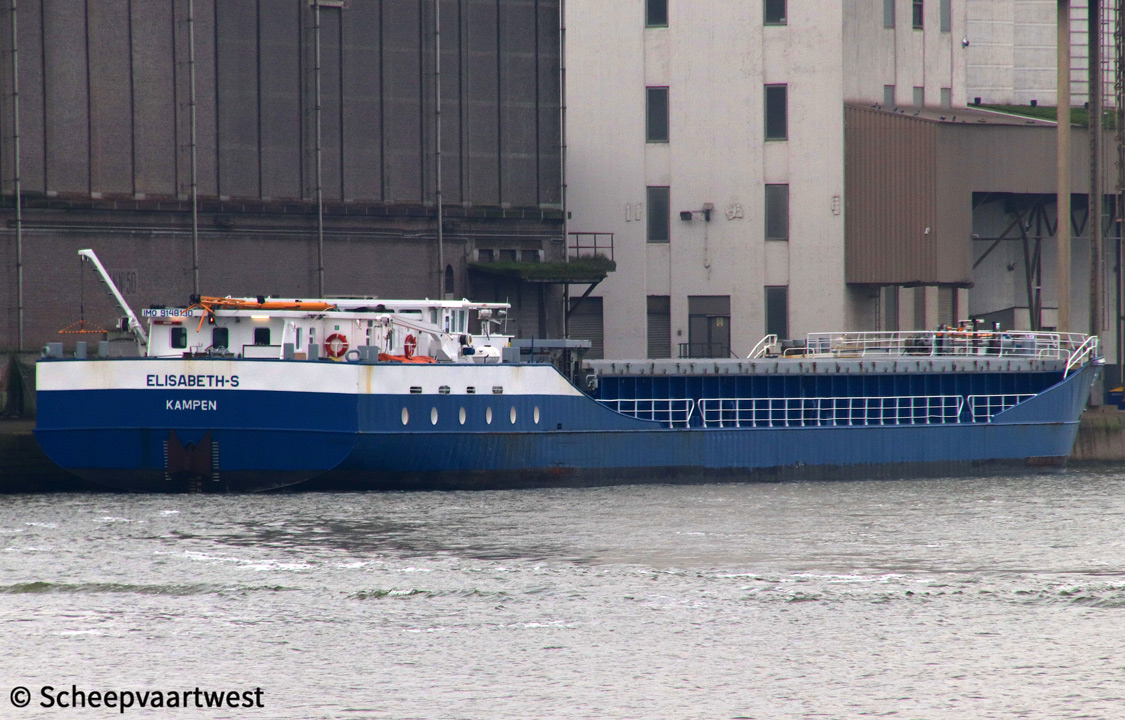

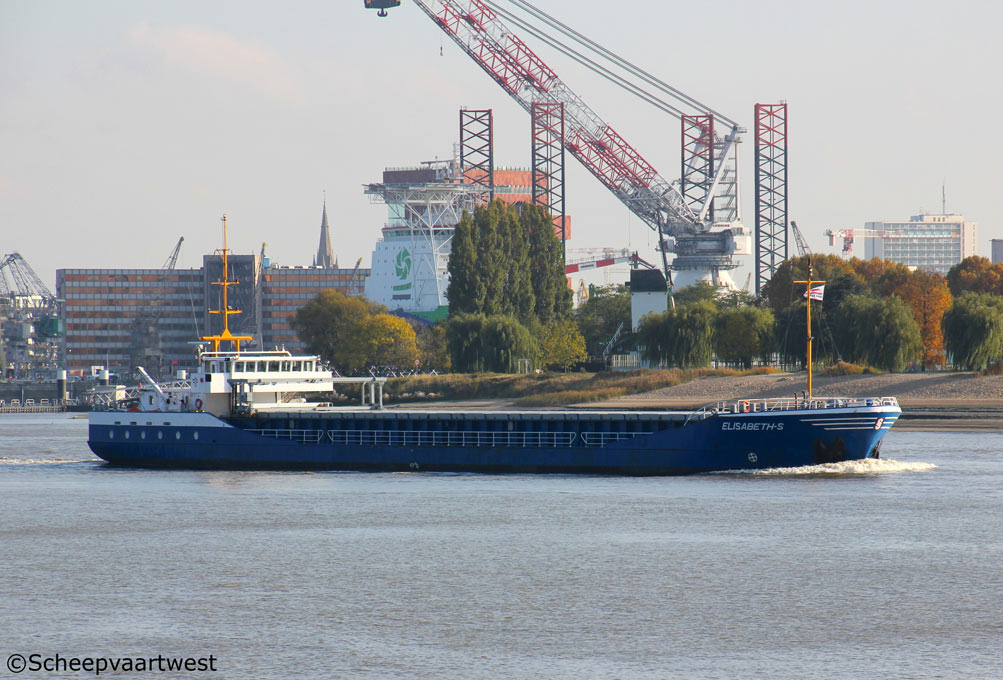

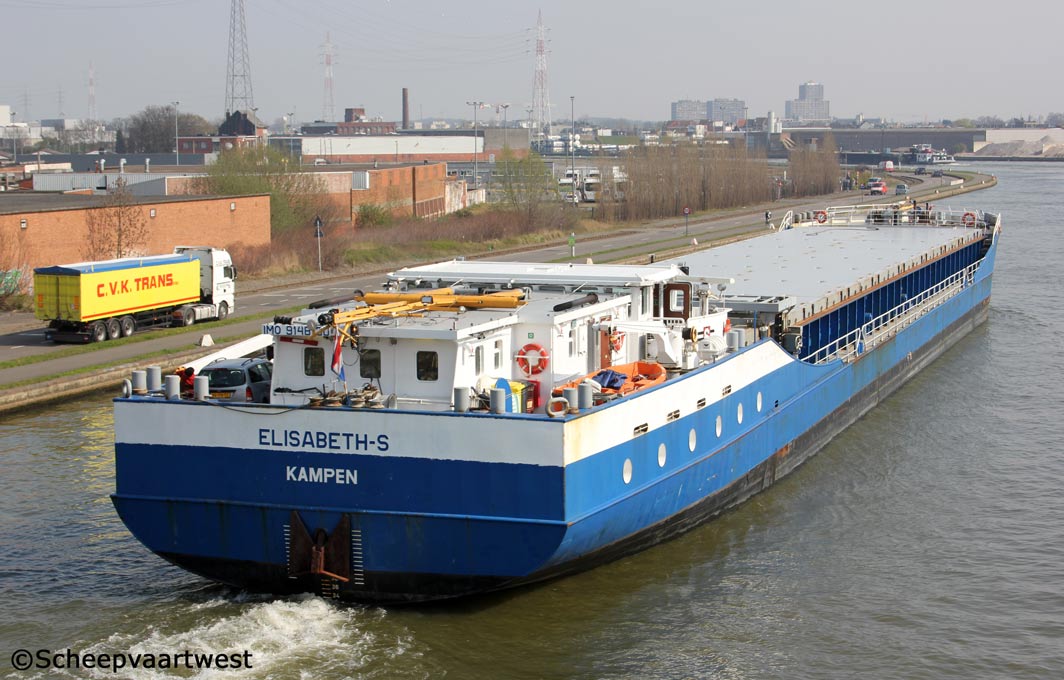

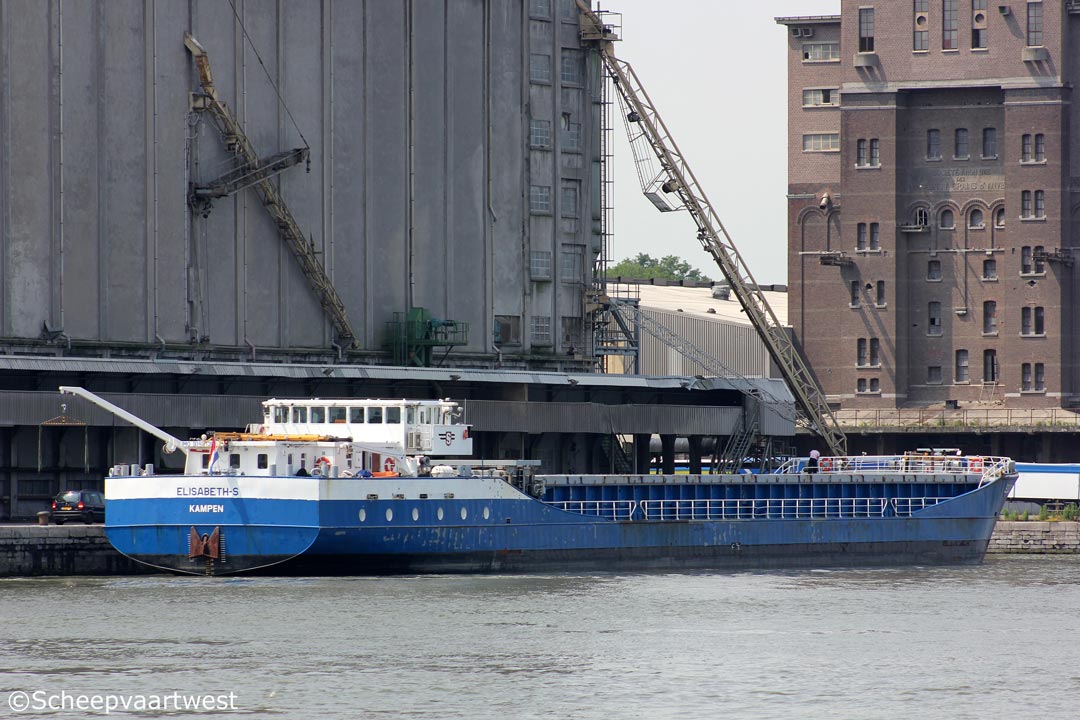

| Antwerpen 28/03/14 | Antwerpen 29/10/15 | Antwerpen 22/07/14 | Antwerpen 22/07/14 | Westerschelde 12/01/17 | Westerschelde 22/10/15 | |||||
 |
 |
|
| Westerschelde 29/11/17 | Antwerpen 31/12/19 | |
|
Name |
ELISABETH-S |
|
Previous names |
1997 - 09/2013 Union Elisabeth |
|
Type |
Multi-purpose single-deck dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9148130 |
|
Call sign |
PCEM |
|
Flag |
The Netherlands |
|
Port of registry |
Kampen |
|
GT |
1.905 t |
|
DWT |
Summer: 2.665 |
|
NT |
991 t |
|
Number of 20ft containers |
106 |
|
Length |
88,62 m overall 84,99 m between perpendiculars |
|
Breadth |
12,60 m extreme 12,40 m moulded |
|
Draught |
3,99 m |
|
Depth |
5,30 m moulded |
|
Speed |
10,0 knots |
|
Built |
1997 |
|
Keel laid |
20/12/1995 |
|
Launch date |
24/03/1997 |
|
Delivery date |
06/09/1997 |
|
Builder casco |
CSPL - Československá Plavba Labská, A.S. Děčín Czechoslovakia Yard number: Y9148130 |
|
Builder completion |
Scheepswerf Peters B.V Kampen The Netherlands |
|
Yard number |
440 |
|
Hull material |
Steel |
|
Movable bulkhead |
1 |
|
Continuous decks |
1 |
|
Main engine |
1x Stork Wärtsilä 8L20 - 4 stroke single acting 8 cylinder 200 x 280 mm combustion engine 749 kW at 855 rpm Starter type: Compressed air Built: 1997 Builder: Stork-Wärtsilä Diesel B.V., Zwolle - The Netherlands |
|
Gearbox |
1x Masson RCD-1850 - Reduction: 3.406:1 |
|
Propellers |
1x Fixed pitch propeller - aft at 251 rpm 4 blades - Diameter: 2.000 mm |
|
Generators |
3x Valmet 620-DSG - 6 cylinder 108 x 120 mm diesel engines each 110 kW at 1.500 rpm connected with Stamford generators each 112 kVA Built: 1997 |
|
Bow thruster |
1x Scania DS-11 - 6 cylinder 127 x 145 mm diesel engine at 1.800 rpm with Veth VT-200 - 265 kW Built: 1997 |
|
Number of holds |
1 |
|
Cargo hold capacity |
Bales / grain: 3.704 m³ |
|
Hatches |
61,20 x 10,15 m |
|
Hatch type |
Pontoon |
|
Deck strength |
Tanktop: 12 t/m² |
|
Tank capacities |
Ballast water: 1.431 m² Potable water: 31 m³ Fuel: 129 m³ Lub oil: 12 m³ Dirty oil: 5 m³ Sewage: 16 m³ |
|
Lifting equipment |
1x Gantry crane |
|
Manager |
Rederij H. Steenstra B.V. (Henk, Anne, Henk Jr, Douwe, Jan Peter en Imre Steenstra) Genemuiden The Netherlands |
|
Previous managers |
09/1997 - 09/2013 Union Transport Group PLC., London - United Kingdom |
|
Shareholders |
Henk, Anne, Henk Jr, Douwe, Jan Peter en Imre Steenstra |
|
Registered owner |
B.V. Motorschip Elisabeth-S Lier 19 8281 MR Genemuiden The Netherlands |
|
Latest data adjustment |
17 June 2024 |
