Westerschelde 29 March 2017 |
 |
 |
|
| Westerschelde 29/03/17 | Westerschelde 29/09/13 |
|
Name |

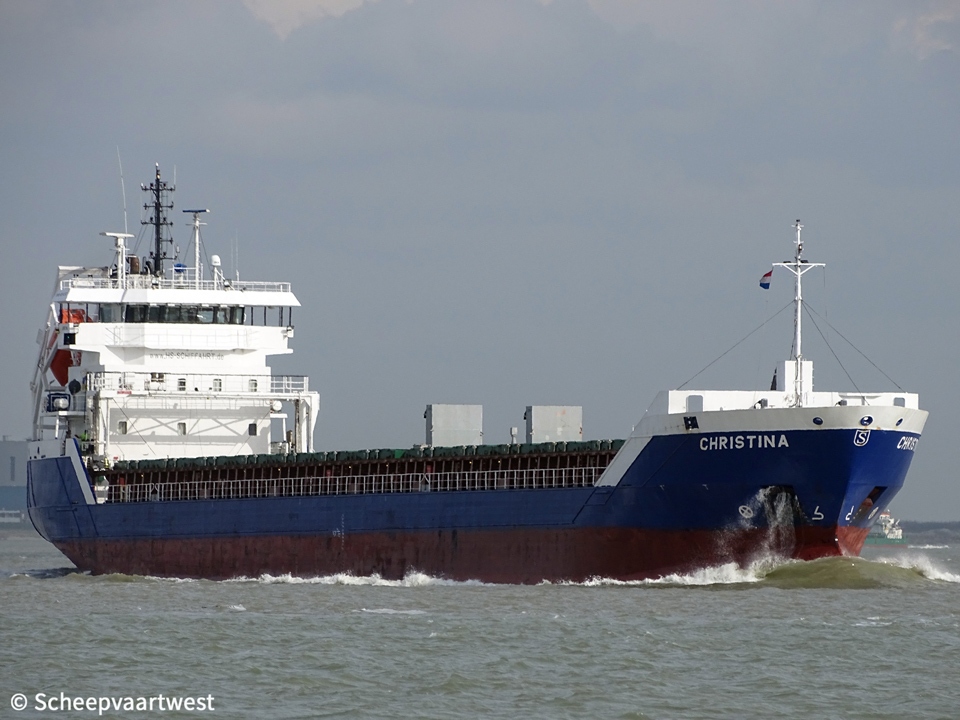

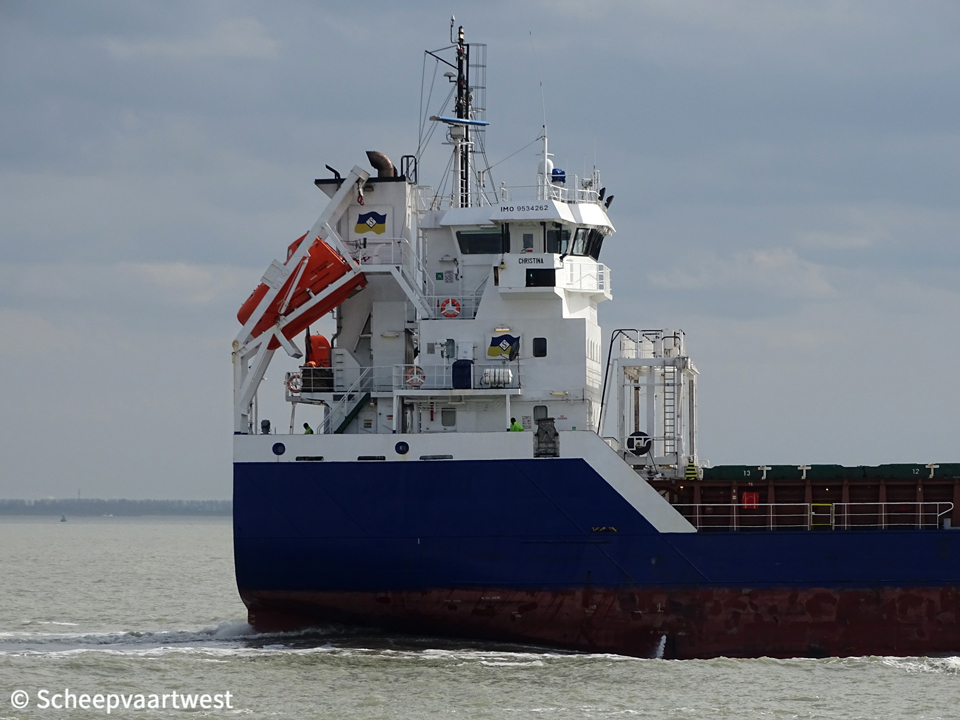

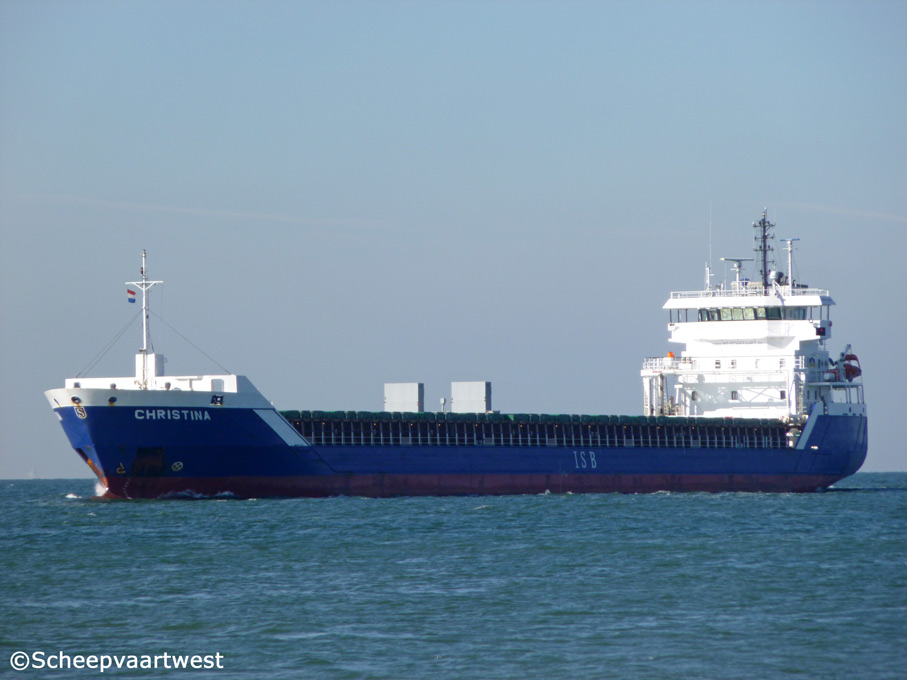

CHRISTINA |
|
Type |
General cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9534262 |
|
Call sign |
D5HS9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.255 t |
|
DWT |
Summer: 6.051 t |
|
DWCC |
Summer: 5.750 t Winter: 5.650 t |
|
NT |
2.341 t |
|
Number of 20ft containers |
256 |
|
Length |
114,40 m overall 108,30 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
6,04 m fully laden |
|
Air draft |
24,00 m in ballast |
|
Freeboard |
8.112 mm |
|
Depth |
8,10 m moulded |
|
Speed |
13,0 knots |
|
Built |
2009 |
|
Date of completion |
29/12/2009 |
|
Builder |
Jiangsu Yangzi Changbo Shipbuilding Co.,Ltd. Yard number: CBSY06-006 |
|
Builder completion |
Volharding Shipyard Hoogezand |
|
Hull material |
Steel |
|
Hull type |
Double skin |
|
Watertight compartments |
5 |
|
Movable bulkhead |
1x Moveable bulkhead each hold 5 positions |
|
Continuous decks |
4 |
|
Main engine |
1x MAK 9M25C - 4 stroke 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 750 rpm Built: 21/10/2008 Builder: Caterpillar Motoren Guangdong |
|
Propellers |
1x Screw propeller controllable pitch - aft at 194 rpm |
|
Boilers |
1x CHO Heatmaster 8,80 m² - 4,0 bar |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
2x Diesel generatorsets each 235 kVA - 188 kW - 340 hp |
|
Bow thruster |
1x 350 kW |
|
Number of holds |
2 Hold 1: 37,37 x 11,70 x 8,99 m Hold 2: 44,40 x 11,70 x 8,99 m |
|
Total capacity of holds |
8.501 m³ / 300.000 ft³ |
|
Number of hatches |
2 |
|
Hatch type |
Pontoon System gantry crane |
|
Maximum tanktop loading |
15 t/m² |
|
Electric ventilation |
6x Air changes per hour |
|
Fuel capacity |
402,4 m³ |
|
Manager |
HS Schiffahrts GmbH & Co KG Thyssenstraße 16 49733 Haren (Ems) |
|
Registered owner |
HS-Schiffahrts GmbH & Co. KG MS, Margaretha |
|
Latest data adjustment |
15 August 2019 |
