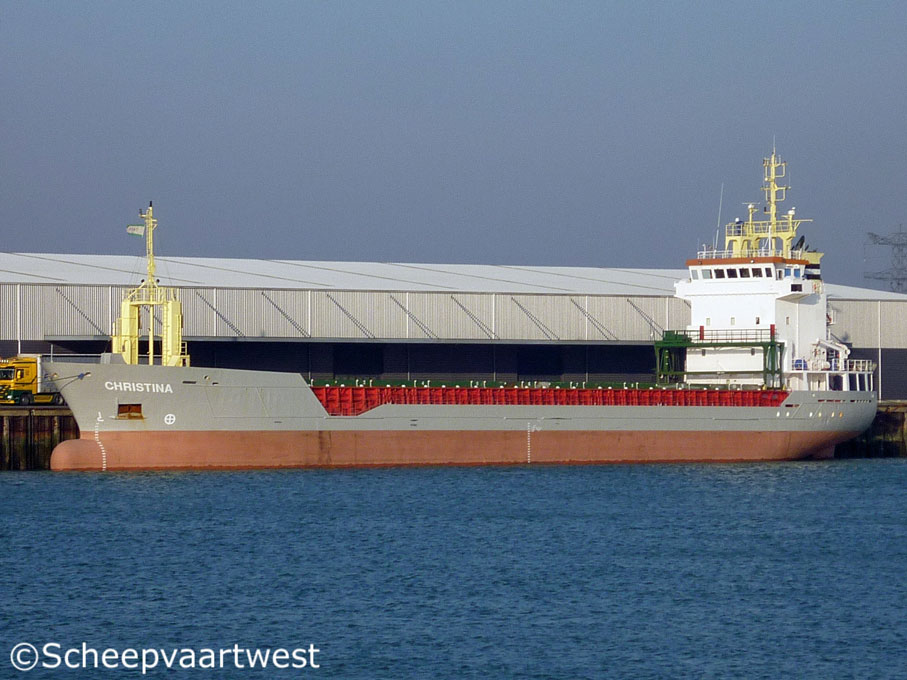

| Vlissingen 01 February 2012 |
|
Name |
CHRISTINA |
|
Type |
General cargo ship - heavycargo - equipped for carriage of containers Multi-purpose vessel for transport of bulk, steel coils, containers, forest products, general cargoes, dangerous cargoes |
|
IMO-number |
9184811 |
|
Call sign |
V2PX5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. Johns |
|
GT |
2.834 t |
|
DWT |
4.618 t |
|
NT |
1.568 t |
|
Number of 20ft containers |
In hold: 117 On deck: 96 Total: 213 |
|
Container capacity 14t |
In hold: 117 On deck: 96 Total: 157 |
|
Reefer plugs |
20 plugs on deck |
|
Length |
89,90 m overall 84,99 m between perpendiculars |
|
Breadth |
13,17 m |
|
Draught |
6,21 m |
|
Air Draft |
Empty: 26,20 m Loaded: 23,40 m |
|
Freeboard |
648 mm |
|
Depth |
7,15 m moulded |
|
Speed |
11,5 knots |
|
Built |
1998 |
|
Keel laid |
22/01/1998 |
|
Date of completion |
17/12/1998 |
|
Builder casco |
Shipyard Galati Galati Romania Yard number: 928 |
|
Builder completion |
Damen Shipyard Hoogezand The Netherlands Yard number: 730 |
|
Hull material |
Steel |
|
Bulkheads |
2x Moveable bulkheads, max 3 compartments |
|
Number of decks |
1 |
|
Main engine |
1x Deutz MWM TBD 645 L6 - 4 stroke 6 cylinder 330 x 450 mm combustion engine 2.200 kW / 2.989 hp at 600 rpm Builder: MWM Motorenwerke Man, Mannheim - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO Wolf GmbH 65,00 m² - 4,00 bar |
|
Shaft generator |
1x 450 kVA - 360 kW |
|
Generators |
2x Scania 6DS9 main diesel generatorsets each 169 kVA - 135 kW - 182 hp |
|
Emergency & harbour gen. |
1x Valmet diesel generatorset 66 kVA - 53 kW - 72 hp |
|
Air compressors |
2x Starting air compressor |
|
Bow thruster |
1x Fixed pitch thruster300 kW |
|
Number of holds |
1x Boxshaped hold type 62,49 x 11,00 x 8,43 m |
|
Hold capacity |
Grain / Bales: 201.872 ft³ |
|
Hold ventilation |
Elec. driven 6 air-changes per hour |
|
Number of hatches |
10x Steel pontoon hatches with 1 gantry crane 62,70 x 10,10 m |
|
Other equipment |
3x Separators: 1x IFO, 1x MGO, 1x Luboil 1x Fuel oil trim pump 1x Bilge water separator, acc. to Marpol regulations 2x Bilge/ballast pumps, each 150 m³/h a 2,80 bar 1x Fire Fighting pump 1x Sewage pump 1x Freshwater pressure set 1x CO2 Fire Fighting system for engine room and cargo hold |
|
Tank capacities |
IFO: 235,58 m³ Ballast: 1.626,99 m³ MGO: 37,29 m³ Portable water: 41,44 m³ |
|
Manager |
Transship Management C.V. Emmen The Netherlands |
|
Operater |
Intersee Schifffahrtsgesellschaft mbH & Co. KG Haren (Ems) Germany |
|
Registered owner |
ED Shipping B.V.(c/o Transship Management BV) Westeind 54 7811 ME Emmen The Netherlands |
|
Renamed |
2015 - 2022 Christine Antigua & Barbuda, St. John’s - Call sign: V2PX5 Owner: BF Shipmanagement GmbH & Co KG - Germany Manager: Christine Schiffahrt 2022 - 2023 Day Blue Barbados, Bridgetown - Call sign: 8PBO7 owner: Weships Denizcilik Ve Tic As - Turkey 2023 Day Blue Belize, Belize - Call sign: V3NC9 Owner: Alnilam Shipping Co. |
|
Latest data adjustment |
26 July 2023 |
