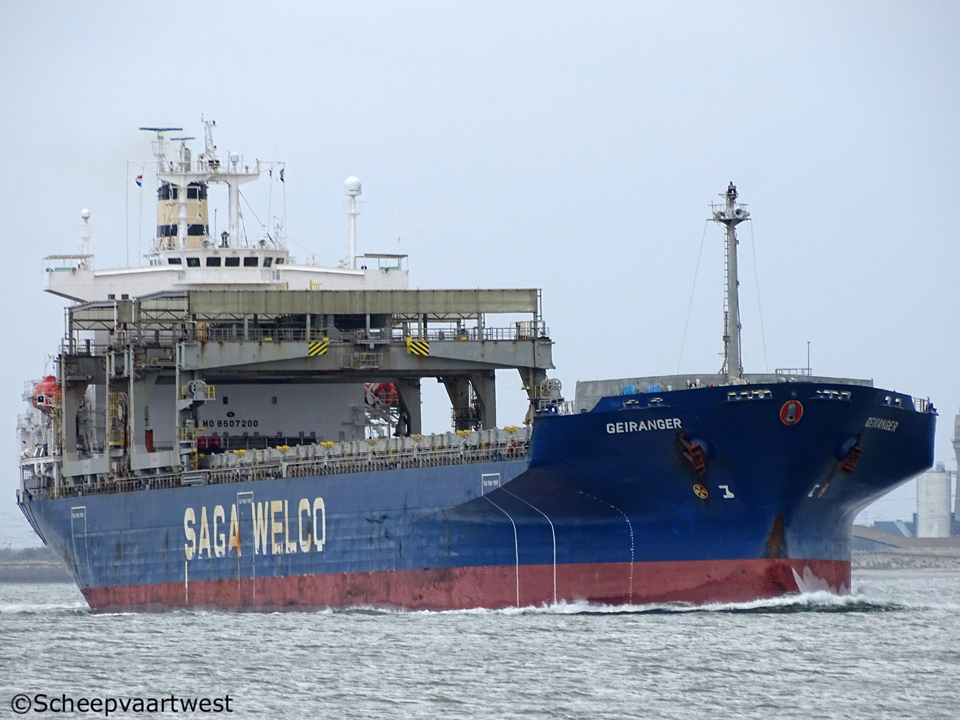

Geiranger 02

Westerschelde 27 July 2017

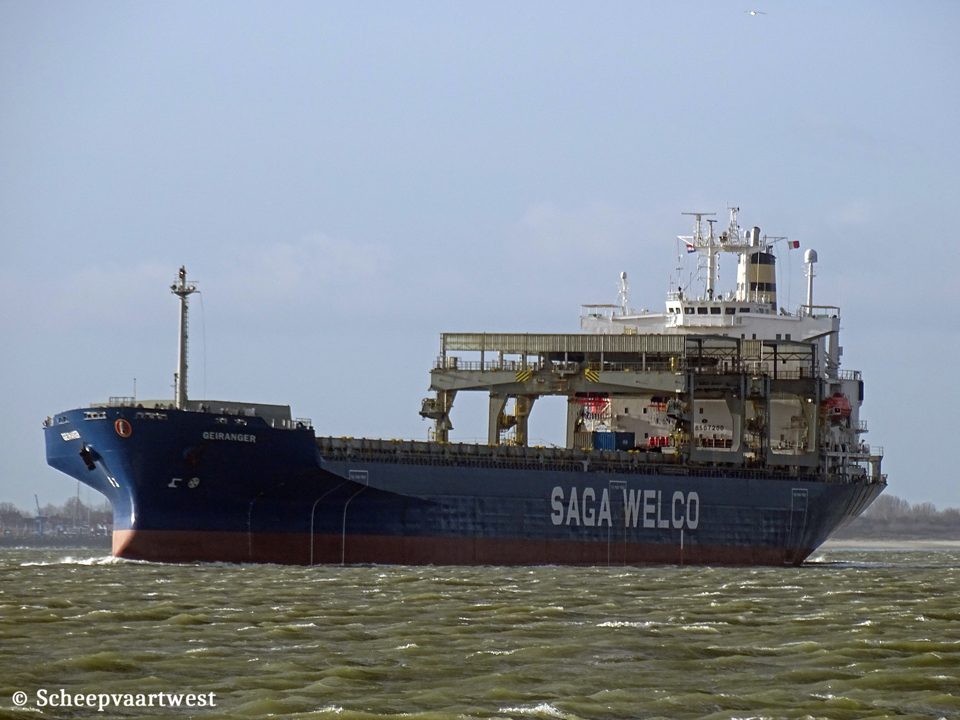

Geiranger 03   Geiranger 01   Geiranger IMO 8507200 04
Westerschelde 27/07/17 Westerschelde 17/03/12   Westerschelde 10/01/16


Name

GEIRANGER

Previous names

1986 - 01/2009 Star Geiranger

Type

Open hatch bulk carrier - Single deck

IMO-number

8507200

Call sign

9V8147

Flag

Republic of Singapore

Previous flags

1986 - 2009 Norway

Port of registry

Singapore City

GT

27.972 t registered

Suez: 28.206,86 t

Panama: 28.247,48 t

DWT

Summer: 43.131 t

NT

13.106 t registered

Suez: 24.490,17 t

Panama: 21.469,62 t

Number of 20ft containers

In hold: 852

On hatch cover: 736

Total: 1.588

Length

201,00 m overall

192,00 m between perpendiculars

Breadth

29,44 m extreme

Draught

Summer: 11,81 m

Winter: 11,56 m

Air draft

Max.: 46,52 m

Depth

16,25 m

Speed

15,0 knots at full load

Max.: 16,7 knots

Built

1986

Keel laid

19/03/1986

Launch date

06/05/1986

Date of completion

25/09/1986

Builder

Kawasaki Heavy Industries, Ltd.

Sakaide

Japan

Yard number

1398

Hull material

Steel

Main engine

1x MAN-B&W/Kawasaki 5L70MCE - 2 stroke single acting 5 cylinder combustion engine 6.587 kW / 9.940 hp at 81,0 rpm

Builder: Kawasaki Heavy Industries Co., Ltd. (B&W), Kobe - Japan

Propellers

1x 5 bladed, right handed - diameter: 6.700 mm

Builder: Kobe steel Works Ltd.

Boilers

Auxiliary boiler, composite

Auxiliary boiler, exhaust gas heated

Generators

3x Daihatsu 6DL-24 - 4 stroke 6 cylinder diesel engines connected with Nishishiba generators each 1.000 kVA / 800 kW / 450 Volt - 60Hz at 720 rpm

Emergency generator

1x MAN D0226 MTE diesel generatorset

Bow thruster

1x Type KT-130B1 - 1.190 bhp

4 bladed - Diameter: 2.000 mm

Builder: Kawasaki Heavy Industries Ltd.

Number of holds

10

Hold 1: 12,30 x 13,26/18,30 x 16,16 m

Hold 2-9: 22,30 x 24,66 x 16,16 m

Hold 10: 12,30 x 18,30/24,66 x 16,16 m

Hold capacity

Hold 1: Grain: 130.223 m³- Bale: 128.733 m³

Hold 2-9: each Grain: 173.907 m³ - Bale: 172.887 m³

Hold 10: 162.349 m³ - Bale: 161,162 m³

Total: Grain: 1.684.506 M² - Bale: 1.672.991 m³

Number of hatchways

10

1x Hatch with dimension 12,30 x 13,20 m

8x Hatches with dimension 12,30 x 24,60 m

1x Hatch with dimension 12,30 x 18,30 m

Hatch type

Pontoon type

Ballast capacity

18.923,4 m³

Cargo gear

2x Gantry cranes - SWL 40,0 t each

Manager

Masterbulk Shipmanagement Pte., Ltd.

Previous managers

1986 - 2009 Westfal-Larsen Management AS

2009 - 2014 Masterbulk Pte. Ltd.

Operator

Westfal-Larsen Shipping

Bergen

Norway

Owner

Masterbulk

Singapore City

Republic of Singapore

Previous owners

1986 - 2008 Westfal-Larsen & Co. AS

2008 - 2008 Masterbulk Pte. Ltd.

Registered owner

Masterbulk Private Limited

Sister ships

1986 Grindanger

Scrapped

11/2018 beached as: Ranger at Alang, India

Latest data adjustment

18 December 2018
