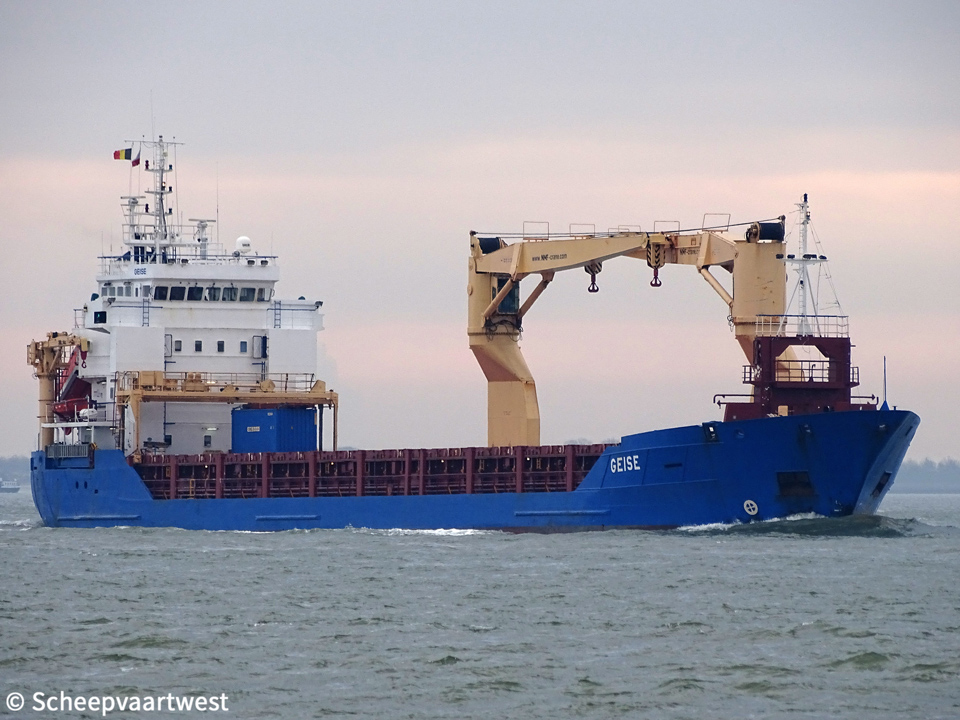

Geise 01

Westerschelde 24 March 2018



Name

GEISE

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

Tweendecker

IMO-number

9195470

Call sign

ZDHI5

Flag

Gibraltar

Port of registry

Gibraltar

GT

3.198 t

DWT

Summer: 4.299,1 t

NT

1.725 t

Number of 20ft containers

In hold: 120

On deck: 154

Total: 274

Number of 40ft containers

In hold: 48 + 24 TEU

On deck: 67 + 18 TEU

Total: 115 + 42 TEU

Container capacity 14t

152

Reefer plugs

40 on deck

Length

98,85 m overall

92,50 m between perpendiculars

Breadth

14,10 m extreme

13,80m moulded

Draught

Summer: 5,74 m

Air draft

23,10 m

Forecastle

6,79 m

Poop

12,57 m

Depth

7,40 m

Speed

12,5 knots

Built

2006

Keel laid

30/06/1998

Launch date

26/02/2006

Date of completion

19/05/2006

Builder

Rousse Industry J.S.C.

Ruse

Bulgaria

Yard number

436

Hull material

Shipbuilding steel (standard)

Hull type

Single hull partly double bottom (e.g. interrupted in way of machinery space)

Watertight compartments

5

Continuous decks

1

Main engine

1x MaK 6M32C - 4 stroke 6 cylinder combustion engine 1.880 kW at 600 rpm

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired - 5,0 bar

Heating surface: 11,0 m²

Builder: Carbofuel Officine Meccaniche S.p.A.

Shaft generator

1x AEM 328 kW

Generators

2x Caterpillar 3406 DITA main diesel generatorsets each 174 kW at 1.500 rpm

Emergency generator

1x Caterpillar 056T diesel generatorset 85 kW

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 20 litres - 30,0 bar

Bow thruster

1x Jastram 750 kW

Number of holds

1x Mostly boxshaped

70,35 x 11,20 x 8,45 m

Cargo hold capacity

5.964 m³ / 210.529 ft³

Hold ventilation

6x Air-changes per hour

Number of hatches

1

70,35 x 11,20 m, one movable beam

Hatch type

11x Panels lift away covers of pontoon type

Floor space

Under deck: 1.490 m² / 16.038 ft³

On deck: 790 m² / 8.503 ft³

Max permitted loads

Tanktop: 15,00 t

Tweendeck: 2,50 t

Hatchcover: 1,60 t

Tank capacities

IFO: abt.: 275,0 m³

MDO: abt.: 65,0 m³

Ballast: abt.: 1.865,0 m³

Fresh water: abt.: 42.0 m³

Anchor equipment

3x Anchors weight each 2.280 kg

Length: 467,50 m

Diameter: 36 mm

Lifting equipment

1x Crane - SWL 5,0 t

Cargo gear

2x NMF cranes situated portside - SWL 60,0 t each

120 t capacity combined

Accommodation

10 persons, 10 cabins

Manager

Briese Dry Cargo GmbH & Co. KG

Hafenstraße 12

26789 Leer

Germany

Registered owner

Briese Schiffahrts GmbH & Co. KG MS "Westerbalje"

Latest data adjustment

12 May 2020
