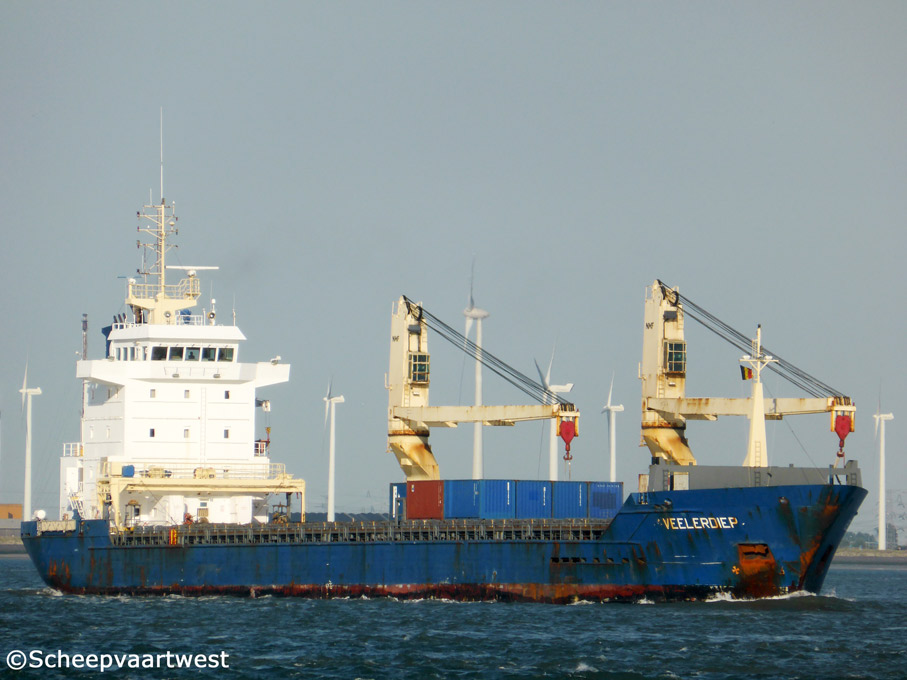

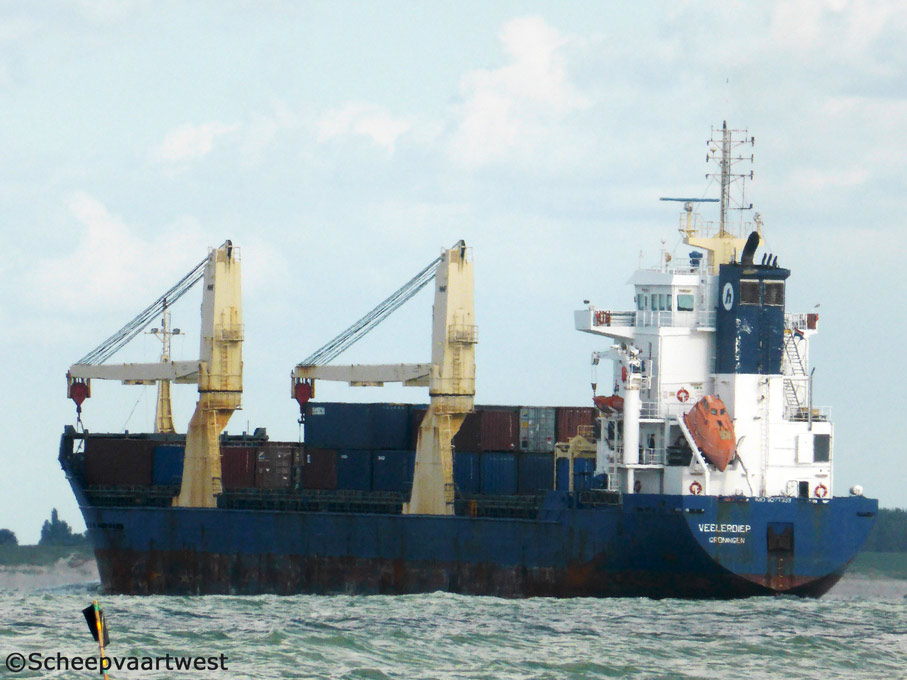

Veelerdiep - IMO 9277333

Westerschelde 12 June 2014

Name

VEELERDIEP

Previous names

2004 Launch as: Veelerdiep

2004 - 11.2009 UAL Rotterdam

2009 - 10.2011 OSC Rotterdam

Type

Multi-purpose dry cargo ship - Geared - Tweendecker

Strengthened for heavy cargoes - Container cargoes in hold and on hatch covers

IMO-number

9277333

Call sign

PHBQ

Flag

The Netherlands

Port of registry

Groningen

GT

5.052 t

DWT

Summer: 7.650 t

NT

2.663 t

Lightweight

2.669 t

Number of 20ft containers

On hatch: 199

In hold: 174

Total 373

Number of 40ft containers

On hatch: 88 + 23 TEU

In hold: 84 + 6 TEU

Total: 172 + 29 TEU

Container capacity 14t

238

Reefer capacity

On Hatch: 10

Length

119,98 m overall

113,35 m between perpendiculars

Breadth

15,20 m extreme

Draught

7,03 m

Depth

8,45 m to main deck

Speed

14,0 knots

Built

2004

Date of completion

09.2004

Builder

Bodewes Shipyard
Hoogezand

The Netherlands

Yard number

623

Hull material

Steel

Hull type

Double hull

Main engine

1x MAK 8M32 - 8 cylinder diesel engine - 3.840 kW

Propellers

1

Generators

3x Scania DI 12 45 M diesel generatorsets each 275 kW

Emergency generator

1x Diesel generatorset 110 kW

Bow thruster

1x 300 kW

Number of holds

2

Hold 1: 12,65 x 39,00 x 9,45 m

Hold 2: 12,65 x 44,25 x 9,45 m

Hold capacity

Hold 1: 4.306 m³ / 152.062 ft³

Hold 2: 5.288 m³ / 186.740 ft³

Total: 9.594 m³ / 338.802 ft³

Number of hatches

2

Hatch 1: 39,00 m x 12,65/5,50 m

Hatch 2: 44,25 m x 12,65 m

Hatch covers

Pontoon type

Deck strength

Tanktop: 15,0 t/m²

Tweendeck: 3,5 t/m²

Hatchcover: 1,75 t/m²

Ventilation

6x Air changes per hour

Tank capacities

HFO: 545 m³ (98%)

MGO: 80 m³ (98%)

Fresh water: 50 m³

Water ballast: 3.313 m³

Cargo gear

2x Cranes - SWL 60,0 t each

Max. outreach: 25,00 m

Crew size

12

Manager

Feederlines BV
Groningen

The Netherlands

Operator

MTL Maritime Transport + Logistik GmbH & Co. KG
August-Hirsch-Straße 10
D-47119 Duisburg
Germany

Owner

Feederlines B.V
Eenrumermaar 2
9735 AD Groningen
The Netherlands

Latest data adjustment

13 October 2014
