Antwerpen 19 April 2018 |
 |
 |
 |
||
| Antwerpen 19/04/18 | Antwerpen 23/12/16 | Westerschelde 02/08/14 |
|
Name |

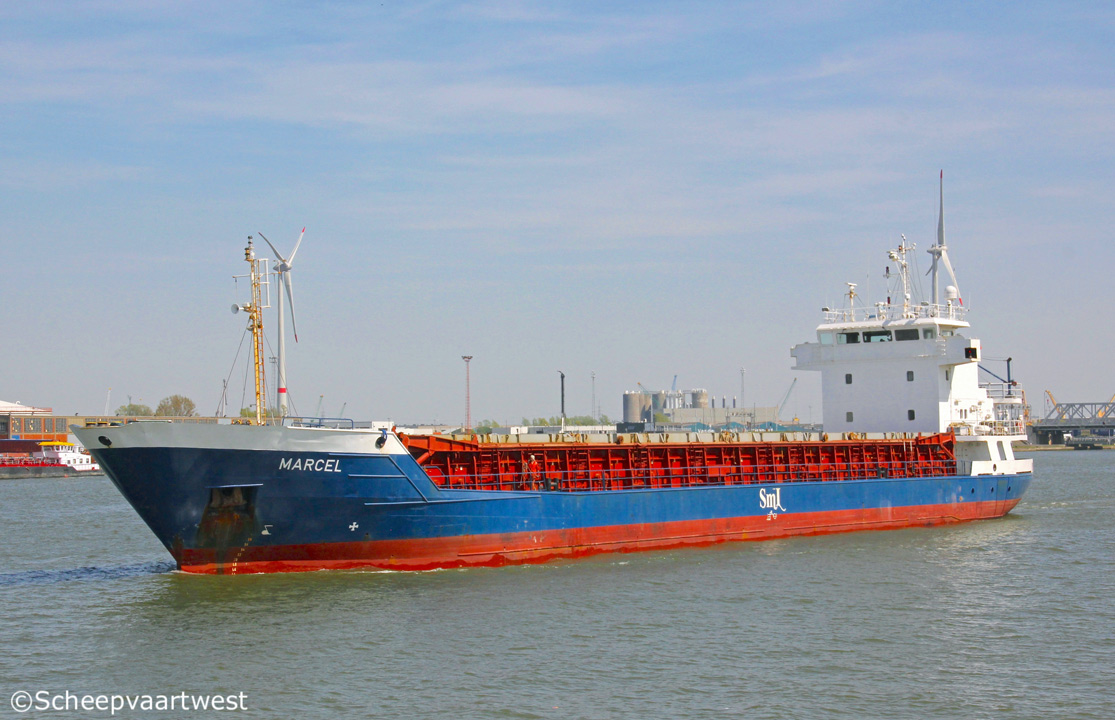

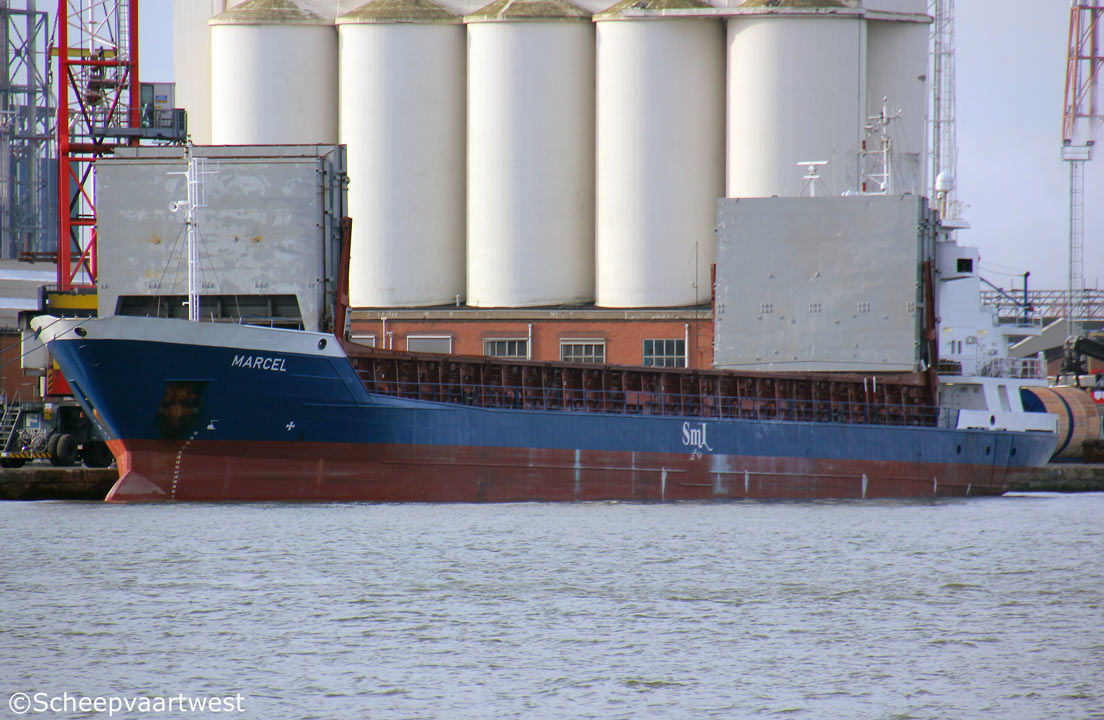

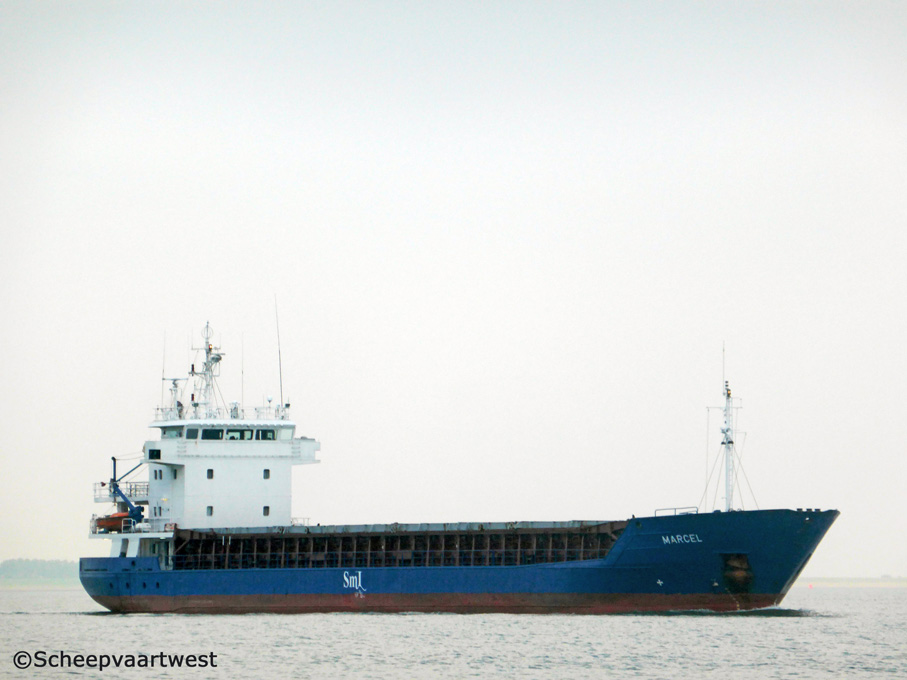

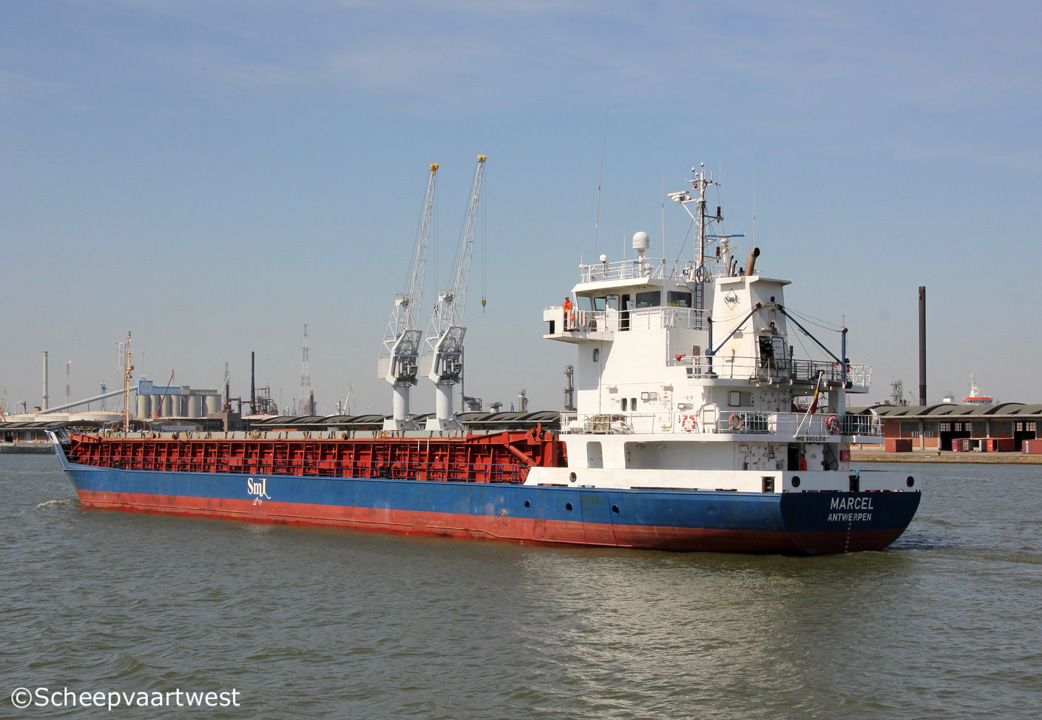

MARCEL |
|
Type |
Multi-purpose dry cargo ship - Equipped for the carriage of containers |
|
IMO-number |
9006318 |
|
Registration number |
01 00584 2005 |
|
Call sign |
ONDP |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
2.449 t |
|
DWT |
Summer: 3.710 t Winter: 3.590 t |
|
NT |
1.380 t |
|
Light ship |
1.188 t |
|
Number of 20ft containers |
In hold: 108 On hatch: 72 Total: 180 |
|
Length |
87,86 m overall 81,00 m between perpendiculars |
|
Breadth |
12,83 m extreme |
|
Draught |
Summer: 5,46 m Winter: 5,35 m |
|
Air draft |
20,60 m in full ballast |
|
Keel to highest fixed point |
24,00 m |
|
Freeboard |
Summer: 1.445 mm Winter: 1.560 mm |
|
Depth |
7,10 m moulded |
|
Speed |
10,7 knots |
|
Built |
1993 |
|
Date of completion |
01/06/1993 |
|
Builder |
Peene Werften Wolgast Wolgast Germany |
|
Yard number |
406 |
|
Hull material |
Steel |
|
Main engine |
1x Deutz SBV 8M628 - 4 stroke 8 cylinder combustion engine 1.500 kW / 2.038 hp at 850 rpm |
|
Propellers |
1x Screw propeller solid 4 blades |
|
Generators |
2x Cummins 6LTA A8 9-62 diesel generatorsets each 168 kW / 210 kVA |
|
Bow thruster |
1x Schottel STT 170 LK-T - 200 kW at 100 rpm |
|
Number of holds |
1 Dimension: 56,60 x 10,20 x 8,10 m |
|
Hold capacity |
Grain : 4.666 m³ / 166.642 ft³ Bales: 4.635 m³ / 165.536 ft³ |
|
Hatch cover type |
Multifold-crocodile |
|
Strength |
Tanktop: 15,0 t/m² Hatch cover: 1,53 t/m² |
|
Tank capacities |
Ballast: 1.641,90 m³ Gas oil: 121,80 m² Fresh water: 56,90 m³ |
|
Manager |
NV Boeckmans België Van Meterenkaai 1 2000 Antwerpen Belgium |
|
Owner |
Grouper NV Van Meterenkaai 1 2000 Antwerpen Belgium |
|
Latest data adjustment |
16 June 2021 |
