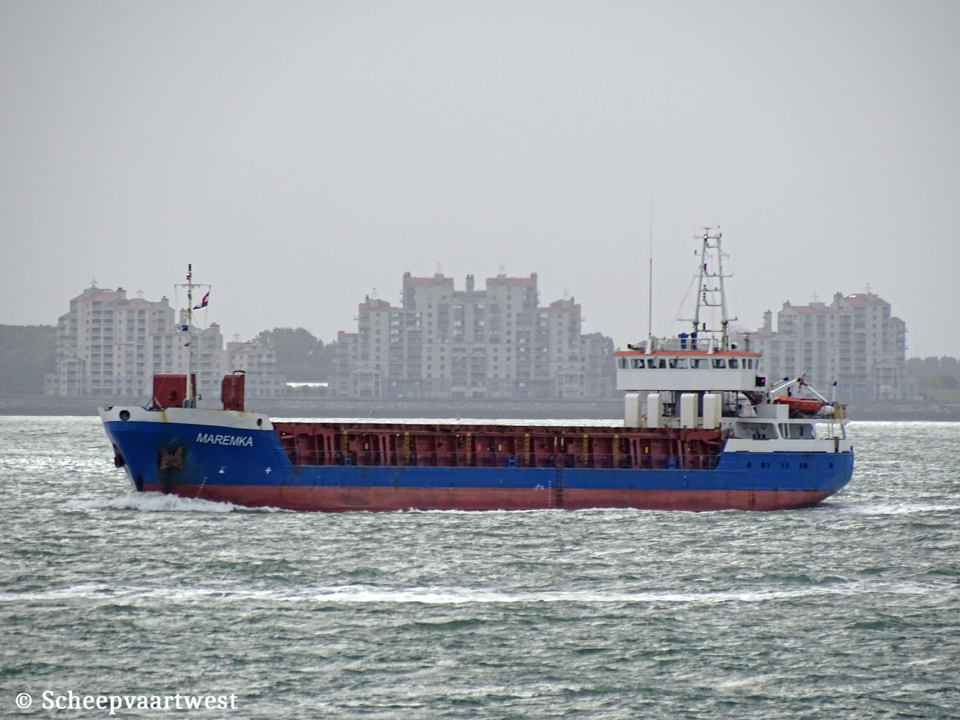

Maremka IMO 9137301 02

Westerschelde 08 October 2019

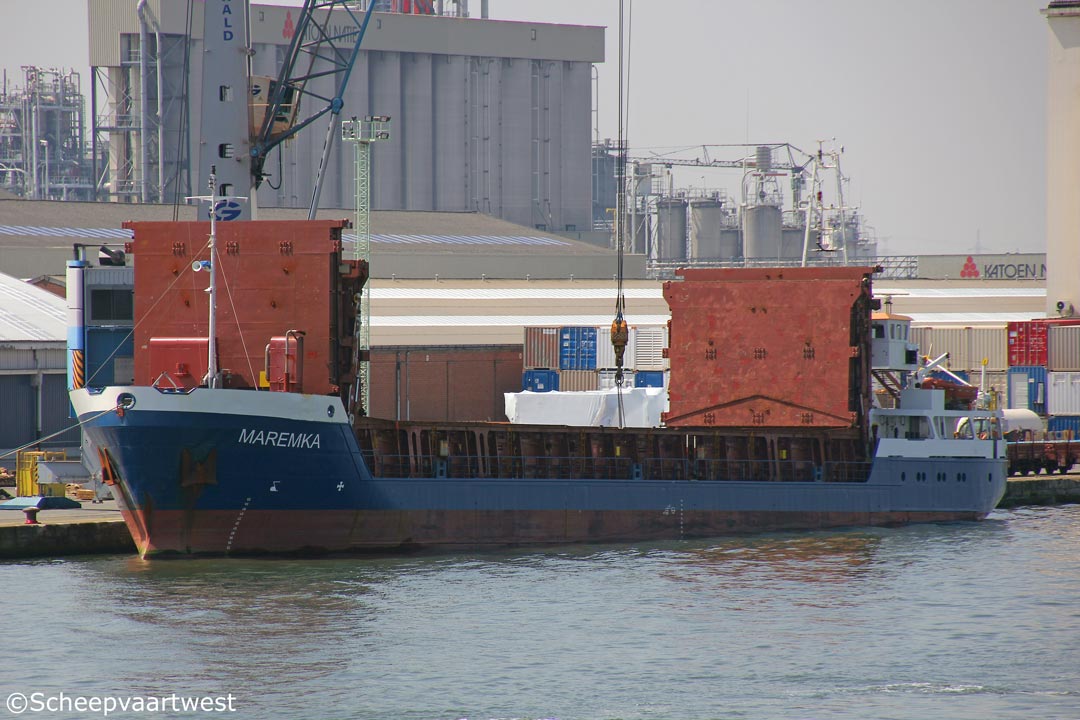

Maremka 01
Antwerpen 10/05/17









Name

MAREMKA

Previous names

1995 build as: RMS Antares

1996 -2005 Antares

2005 - 2016 Tomar

Type

General Dry Cargo Ship - Multi-purpose - Equipped for carriage of containers

IMO-number

9137301

Call sign

ONIN

Flag

Belgium

Port of registry

Antwerpen

Previous flags

Antigua & Barbuda, St. John's - call sign: V2GF6

Portugal, Madeira - call sign: CQPA

GT

1.864 t

DWT

Summer: 2.507 t

Winter: 2.415 t

DWCC

Summer: 2.400 t

Winter: 2.300 t

NT

938 t

Displacement

Summer: 3.347 t

Light ship

1.145 t

Number of 20ft containers

In hold: 69

On deck: 36

Total: 105

Reefer capacity

10

Length

82,42 m overall

79,82 m between perpendicular

Breadth

11,35 m moulded

11,40 m extreme

Draught

Summer: 4,81 m

Winter: 4,71 m

Keel to mast end

23,44 m

Air draft in ballast

20,00 m with mast

14,00 m without mast

Keel to highest fixed point

23,00 m

Forecastle

6,62 m

Poop

15,60 m

Freeboard

Summer: 1.310 mm

Depth

6,10 m moulded

Speed

Service: 9,5 knots

Built

1996

Builder

Slovenske Lodenice Komarno

94525 Komarno

Slovakia

Yard number

1503

Hull material

Steel

Hull type

Double hull

Watertight bulkheads

4

Movable bulkheads

2

Continuous decks

1

Main engine

1x SBV 8M628 KHD Deutz 600 - 4 stroke single acting 8 cylinder 240 x 280 mm combustion engine Mcr 1.350 kW / 1.835 hp at 800 rpm

Builder: Motoren Werke Mannheim AG (MWM), Mannheim - Germany

Gearbox

1x Reintjes WAF-1941

Propellers

1x Fixed pitch propeller - aft at 249 rpm

Boiler

1x Domestic boiler

Generators

3x John Deere 6068TFM50 - 82 KW

Emergency generator

1x John Deere 4045TF258 - 65 KW

Bow thruster

1x Omega jet 3100-K4 - 255 kW

Number of holds

1x Bow shaped

52,50 x 9,00 x 7,55 m

Cargo hold capacity

Grain: 3.485,5 m³ / 123.091 ft³

Hold ventilation

5x Electrical ventilation times/hour change of air at 26.600 m³/hour

Hatch

1

52,50 x 9,00 m

Hatch type

Kvaerner Multi-fold crocodile

Max. permitted loads

Hatch covers: 1,32 t/m²

Tanktop: 13 t/m²

Tank capacities

Gas oil: 118,29 m³

Fresh water: 23,40 m³

Ballast water: 1.059,11 m³

Anchor equipment

3

Length: 385,00 m

Weight: 1.290 kg

Crew size

10

Commerical manager

Boeckmans België NV

Binnenvaartstraat 85

B-2000 Antwerpen

Belgium

ISM manager

Boeckmans Ship Management BVBA

Binnenvaartstraat 85

B-2000 Antwerpen

Belgium

Registered owner

Rederij DS NV

Care of Boeckmans Belgie NV

Binnenvaartstraat 85

B-2000 Antwerpen

Belgium

Latest data adjustment

30 September 2021
