Westerschelde 02 August 2014 |
|
Name |

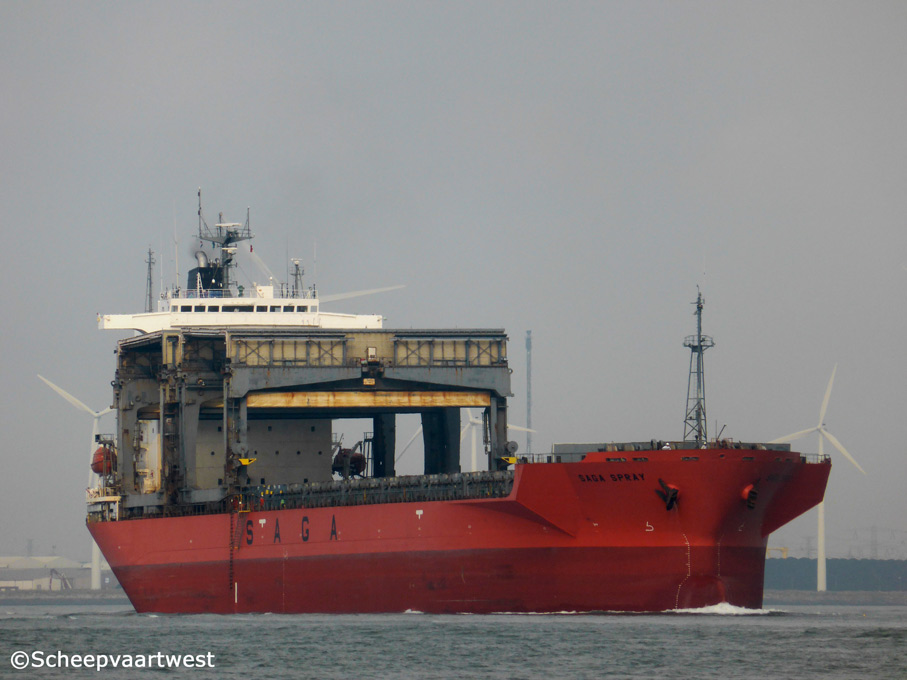

SAGA SPRAY |
|
Type |
General cargo (single deck) Open Hatch Gantry Vessel |
|
IMO-number |
9014078 |
|
Call sign |
V5WW5 |
|
Flag |
Hong Kong - China |
|
Previous flag |
1994 - 2001 Norway |
|
Port of registry |
Hong Kong |
|
GT |
29.381 t |
|
DWT |
Summer: 47.029 t |
|
NT |
14.155 t |
|
Number of 20ft containers |
On deck: 560 In holds: 1.128 Total: 1.688 |
|
Length |
199,20 m overall 190,00 m between perpendiculars |
|
Breadth |
30,57 m extreme |
|
Draught |
11,82 m |
|
Depth |
16,40 m |
|
Speed |
14,5 knots |
|
Built |
1994 |
|
Keel laid |
26.11.1993 |
|
Launch date |
07.02.1994 |
|
Date of completion |
15.04.1994 |
|
Builder |
Oshima Shipbuilding Co. Ltd. |
|
Yard number |
10165 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 13 Longituudinal: 2 |
|
Main engine |
Sulzer 7RTA 52 - 2 stroke single acting 7 cylinder 520 x 1.800 mm diesel engine - 8.952 kW / 12.171 hp at 117 rpm Builder: Diesel United Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 117 rpm |
|
Boilers |
1x Auxiliary boiler, composite GCS-22 |
|
Generators |
3x Daihatsu 6DL-22 main diesel generatorsets |
|
Emergency generator |
1x Mitsubisi diesel generatorset |
|
Number of holds |
10 |
|
Hold capacity |
Hold 1: 3.513 m³ / 124.060 ft³ Hold 2: 4.979 m³ / 175.832 ft³ Hold 3: 5.525 m³ / 195.114 ft³ Hold 4: 5.525 m³ / 195.114 ft³ Hold 5: 5.525 m³ / 195.114 ft³ Hold 6: 5.525 m³ / 195.114 ft³ Hold 7: 5.525 m³ / 195.114 ft³ Hold 8: 5.525 m³ / 195.114 ft³ Hold 9: 5.525 m³ / 195.114 ft³ Holf10: 4.779 m³ / 168.769 ft³ Total: 51.946 m³ / 1.834.459 ft³ |
|
Ballast capacity |
16.185,5 m³ |
|
Cargo gear |
2x Each 40,0 t travelling gantry cranes with weather protection |
|
Manager |
Anglo-Eastern Shipmanagement Ltd. |
|
Previous managers |
1994 - 2009 Patt Manfield & Co. Ltd. |
|
Operator |
Saga Forest Carriers Intl AS |
|
Owner |
Attic Forest AS |
|
Previous owners |
1994 - 2013 Scorpio Carriers Ltd. |
|
Latest data adjustment |
04 September 2014 |
