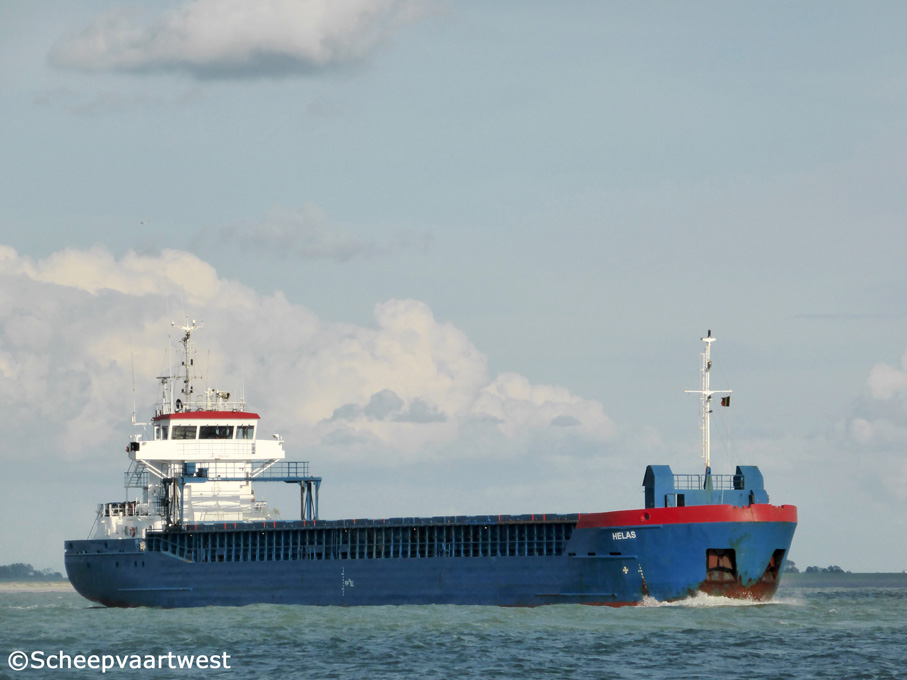

Helas 01

Westerschelde 23 August 2014



Name

HELAS

Previous names

2001 - 03/2005 Oostersingel

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

Gearless - singledecker

IMO-number

9195743

Call sign

C4AZ2

Flag

Cyprus

Port of registry

Limassol

Previous flags

05/2001 - 01/2003 The Netherlands, Groningen - Call sign: PBCE

01/2003 - 03/2005 Netherlands Antilles, Willemstad - Call sign: PJBQ

GT

2.545 t

DWT

3.783 t

NT

1.460 t

Number of 20ft containers

In hold: 113

On deck: 68

Total: 181

Length

88,78 m overall

84,99 m registered

Breadth

12,50 m registered

12,60 m moulded

Draught

5,43 m moulded

Air draft

24,80 m

Depth

7,00 m to main deck moulded

Speed

Service: 11,0 knots

Built

2001

Keel laid

24/06/1998

Launch date

10/11/2000

Date of completion

14/05/2001

Builder casco

Daewoo Mangalia Heavy Industries S.A.
Mangalia
Jud. Constanta
Romania

Yard number: 1033

Builder completion

B.V. Scheepswerf Damen Bergum
Industrieterrein Zuid
9250 AA Bergum
The Netherlands

Yard number: 9344

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

4

Movable bulkhead

2x Moveable grain bulkhead with six stowage positions

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW at 1.000 rpm

Year of manufacture: 2001

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Solid pitch propeller - aft at 226 rpm

Electric installations

2x Plants each 380/220 V - 230 kVA

1x Plant 380 V - 57 kVA

Generators

2x Scania D9 main diesel generatorsets each 231 kVA

Emergency / harbour gen.

1x Valmet generatorset 58 kVA

Compressed air receivers

2x Receivers each 150 litres - 30,0 bar

Bow thruster

1x Bow thruster fixed pitch propeller output 236 kW, forward

Number of holds

1

61,66 x 10,12 x 8,43 m

Cargo hold capacity

Grain: 5.250 m³ / 185.400 ft³

Number of hatches

1x Steel pontoon hatches with 1 gantry crane

62,70 x 10,10 m

Strength

Tanktop: 15,0 t/m²

hatch cover: 1,60 t/m²

Tank capacities

Ballast approx: 1.340 m³

MGO approx: 210,00 m³

Potable water: 55,00 m³

Lubrication oil: 8,60 m³

Sewage: 12,00 m³

Dirty oil: 4,00 m³

Sludge: 4,00 m³

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Crew size

8

Manager

Hermann Lohmann Bereederungen GmbH & Co. KG
Fleetwinkel 6
49733 Haren/Ems
Federal Republic of Germany

Previous managers

05/2001 -03/2005 Armawa Shipping & Trading B.V., Haren - The Netherlands

Registered owner

Hermann Lohmann Schiffahrts GmbH & Co. KG MS "HELAS"
Fleetwinkel 6
49733 Haren/Ems
Federal Republic of Germany

Previous owners

05/2001 -03/2005 C.V. Scheepvaartonderneming Oostersingel, Groningen - The Netherlands

Renamed

02/2019 Svealand

Germany, Stade - Call sign: DCEA2

Manager: Karl Meyer Reederei GmbH & Co. KG

Owner: Karl Meyer Shipping International GmbH & Co. KG

Latest data adjustment

27 April 2019
