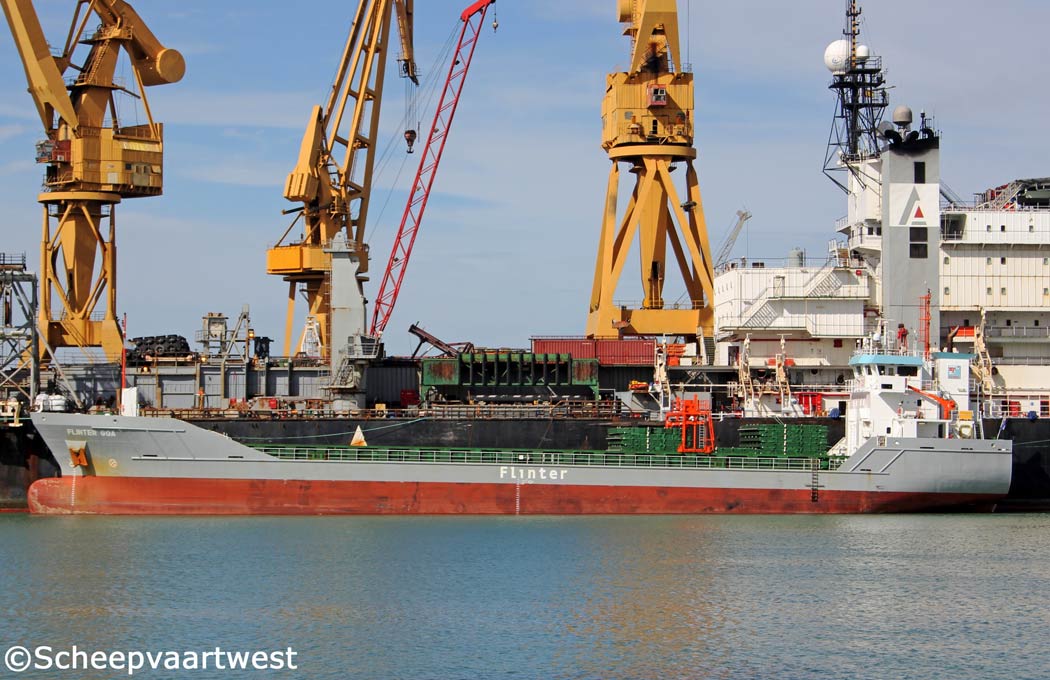

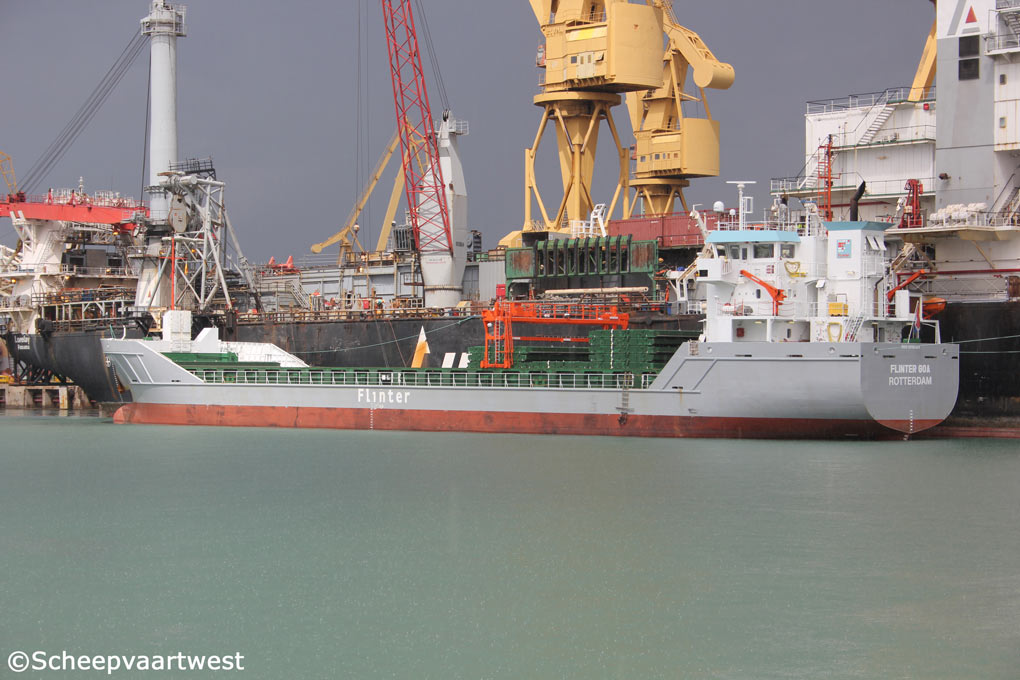

Cadiz, Spain 20 September 2014 |
 |
| Cadiz, Spain 21/09/14 |
|
Name |
FLINTER GOA |
|
Previous names |
2013 Launch as: Espero |
|
Type |
Multi-purpose general cargo ship - -heavycargo |
|
IMO-number |
9556301 |
|
Call sign |
PCUG |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.984 t |
|
DWT |
Summer: 4.924 t |
|
NT |
1.598 t |
|
Number of 20ft containers |
38 on hatch cover |
|
Length |
89,95 m overall 84,94 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
Summer: 6,23 m |
|
Air draft |
Max.: 22,54 m |
|
Freeboard |
1.760 mm |
|
Depth |
7,85 m |
|
Speed |
11,5 knots loaded |
|
Built |
2013 |
|
Launch date |
16.10.2012 |
|
Date of completion |
25.03.2013 |
|
Builder |
Chowgule and Company PVT. Limited |
|
Yard number |
C202 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Movable bulkhead |
2 - 7 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.980 kW / 2.690 hp at 750 rpm Built: 08.02.2012 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 158 rpm |
|
Boilers |
1x CHM ABB Gadelius 25,00 m² - 7,0 bar |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
1x Main diesel generatorset 215 kVA - 172 kW - 247 hp |
|
Emergency generator |
1x Diesel generatorset 215 kVA - 172 kW - 247 hp |
|
Number of holds |
1 62,30 x 11,70 x 8,10 m |
|
Total capacity of holds |
5.807 m³ / 204.825 ft³ |
|
Hatch type |
Pontoon |
|
Strength |
Tanktop: 15,0 t/m² Hatch cover: 1,60 t/m² |
|
Air changes |
6 per hour |
|
Fuel capacity |
346,13 m³ |
|
Manager |
Flinter Management BV |
|
Operator |
Flinter |
|
Registered owner |
Garud B.V |
| Renamed |
2015 Elise |
|
Latest data adjustment |
10 January 2016 |
