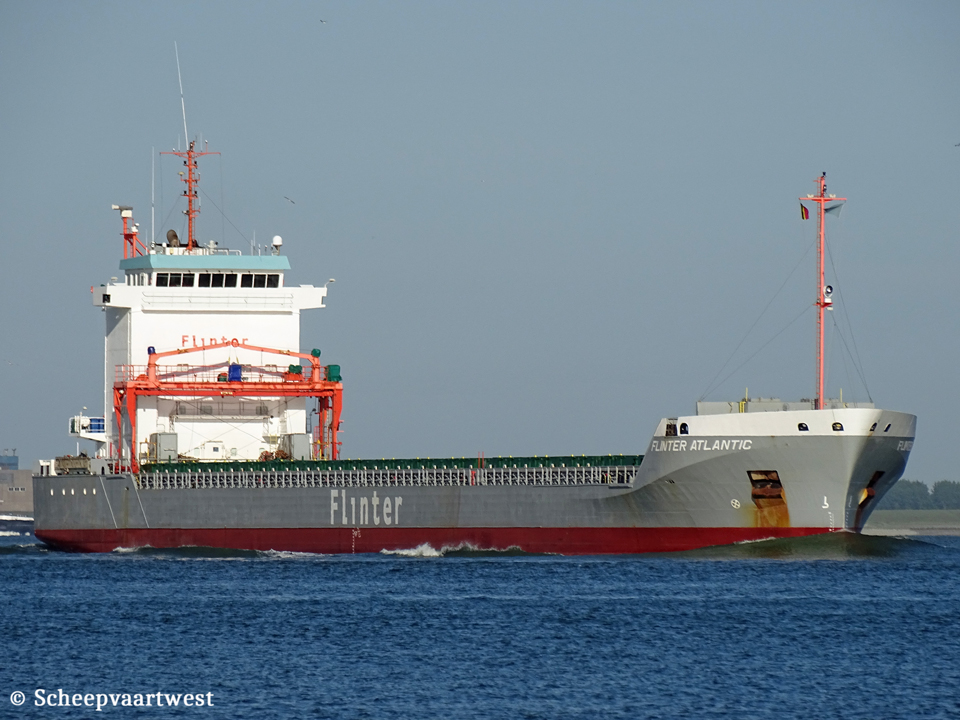

| Westerschelde 09 June 2016 |
|
Name |
FLINTER ATLANTIC |
|
Previous names |
Build as: Flinterafrica |
|
Type |
General cargo ship - Container ship - Heavycargo |
|
IMO-number |
9504138 |
|
Call sign |
PCJK |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
6.687 t |
|
DWT |
11.023 t |
|
DWCC |
Summer: 10.806 t Winter: 10.539 t |
|
NT |
3.448 t |
|
Number of 20ft containers |
356 |
|
Length |
132,60 m overall 126,35 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
Summer: 7,83 m Winter: 7,67 m Ballast: 7,53 m |
|
Air draft |
34,40 m in ballast |
|
Freeboard |
2.955 mm |
|
Depth |
10,78 m moulded |
|
Speed |
Max: 14,1 knots |
|
Built |
2011 |
|
Launch date |
29/01/2011 |
|
Date of completion |
23/02/2011 |
|
Builder |
Scheepswerf Ferus Smit B.V. Groningen The Netherlands |
|
Yard number |
399 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.435 bhp at 600 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 159 rpm |
|
Generators |
1x Diesel generatorset 131 kVA - 105 kW - 455 hp 2x Diesel generatorsets each 388 kVA - 310 kW - 455 h |
|
Bow thruster |
1x Electric bow thruster 573 kW |
|
Number of holds |
2 Hold 1: 32,50 x 13,20 x 10,62 m Hold 2: 64,00 x 13,20 x 10,32 m |
|
Total capacity of holds |
Grain /bale Hold 1: 4.157,71 m³ / 146.828 ft³ Hold 2: 8.851,08 m³ / 312.573 ft² Total: 13.008,79 m³ / 459.401 ft³ |
|
Hold ventilation |
Mechanical ventilation: 6 changes per hour in empty holds |
|
Number of hatches |
2 Hatch 1: 32,50 x 13,20 m Hatch 2: 64,00 x 13,20 m |
|
Hatch cover type |
Pontoon |
|
Max permitted loads |
On hatches: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 587,6 m³ Fresh water: 53,0 m³ Water ballast: 4.360,0 m³ |
|
Lifting equipment |
Gantry crane fitted with two derricks |
|
Crew |
9 |
|
Manager |
Flinter Management B.V. Barendrecht The Netherlands |
|
Owner |
Flinter Atlantic B.V. Rotterdam The Netherlands |
|
Renamed |
12/2016 Rotterdam The Netherlands, Rotterdam - Call sign: PCJK Manager: Management Facilities Group B.V., Farmsum - The Netherlands Owner: Flinter Atlantic B.V., Rotterdam - The Netherlands 09/2017 Arklow Dawn Irish Republic, Arklow - Call sign: EITD9 Manager: Arklow Shipping Ltd., Arklow - Irish Republic Owner: Kilbride Shipping Ltd., Arklow - Irish Republic 06/2021 Arklow Dawn The Netherlands, Rotterdam - call sign: PDTU Owner & manager: Arklow Shipping Nederland B.V., Rotterdam - The Netherlands 074/2022 Longwood The Netherlands, Rotterdam - call sign: PDTU Manager: Longship Group B.V., Dublin - Irish Republic Owner: Flexam Invest Ireland 1A DAC, Dublin - Irish Republic |
|
Latest data adjustment |
01 December 2023 |
