Westerschelde 16 October 2014 |
 |
| Westerschelde 04/10/14 |
|
Name |

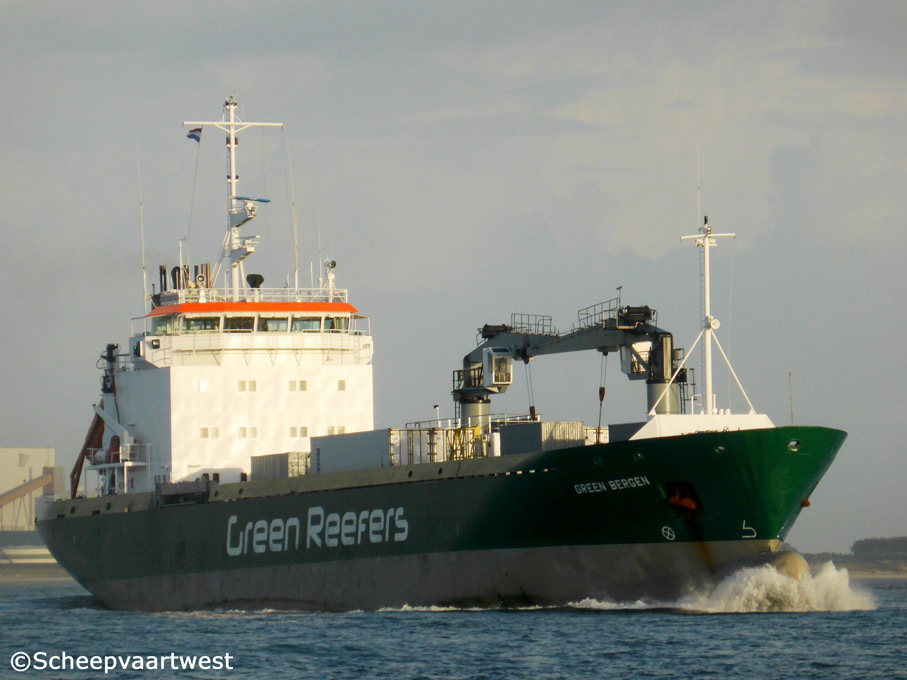

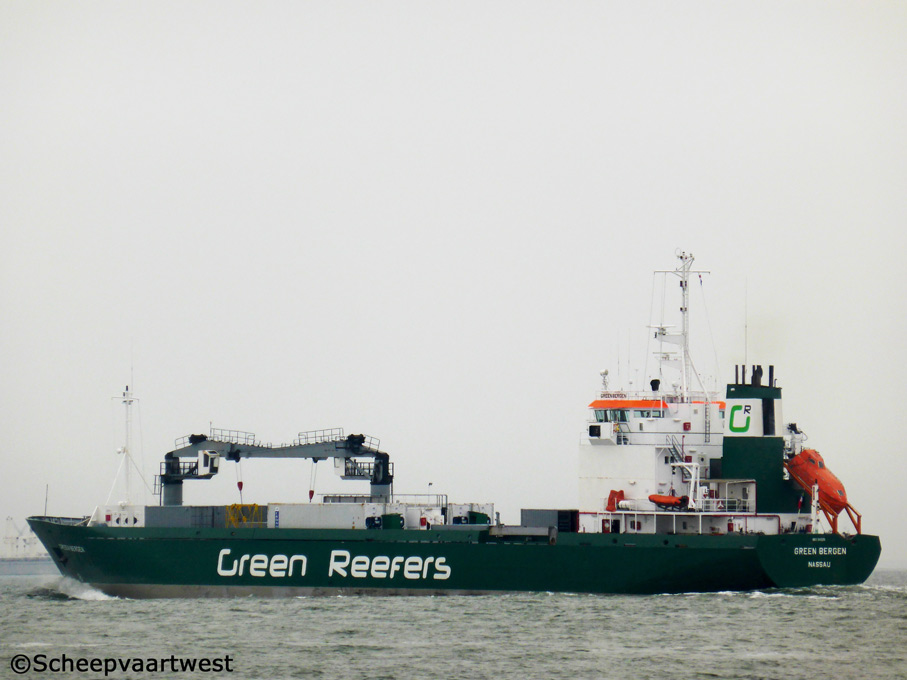

GREEN BERGEN |
|
Previous names |
1998 - 08.1999 Persey 08.1999 - 08.2005 Frio Pusan |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
9143374 |
|
Call sign |
C6VN5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
3.817 t |
|
DWT |
Summer: 4.000 t |
|
NT |
1.446 t |
|
Number of 20ft containers |
Weatherdeck: 40 Holds: 12 Total: 52 |
|
Length |
97,60 m overall 91,50 m between perpendiculars |
|
Breadth |
15,73 m extreme |
|
Draught |
Summer: 6,01 m |
|
Depth |
10,10 m |
|
Speed |
15,0 knots laden |
|
Built |
1998 |
|
Keel laid |
10.06.1997 |
|
Date of completion |
20.02.1998 |
|
Builder |
Euroflex Marine (Århus Flydedok A/S) |
|
Yard number |
223 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 8M32C diesel engine 4.783 bhp Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller Builder: Kamewa |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired - Wiesloch 25-OH-08 |
|
Generators |
3x MTU 12V183 diesel generatorsets Builder: MTU Friedrichshafen GmbH |
|
Emergency generator |
1x Valmet diesel generatorset |
|
Bow thruster |
Yes |
|
Number of holds |
2 |
|
Number of hatches |
2 |
|
Compartments |
6 |
|
Cargo hold capacity |
Comp 1A: 36.233 ft³ / 424 m³ Comp 2A: 37.681 ft³ / 442 m³ Comp 1B: 31.077 ft³ / 382 m³ Comp 2B: 35.915 ft³ / 442 m³ Comp 1C: 20.200 ft³ / 248 m³ Comp 2C: 33.514 ft³ / 442 m³ Total: 194.620 ft³ / 2.380 m³ |
|
Deck |
2.380 m² |
|
Ventilation |
Air changes per hour: 90 |
|
Temperatures |
4x Separate cooling sections, with sufficient compressor capacity for keeping -30 to +15 degrees Celsius |
|
Tank capacities |
Fuel oil: 485 t Diesel oil: 70 t Ballast capacity: 802,4 m³ |
|
Anchor equipment |
Length: 220,00 m |
|
Cargo gear |
2x Cranes - SWL 8,0t at 18,00 m |
|
Manager |
Green Management Sp. z.o.o. |
|
Registered owner |
Green Shipping AS |
|
Latest data adjustment |
03 November 2014 |
