Westerschelde 17 June 2014 |
 |
 |
 |
||
| Westerschelde 18/04/14 | Westerschelde 20/08/15 | Westerschelde 20/08/15 | ||
|
Name |

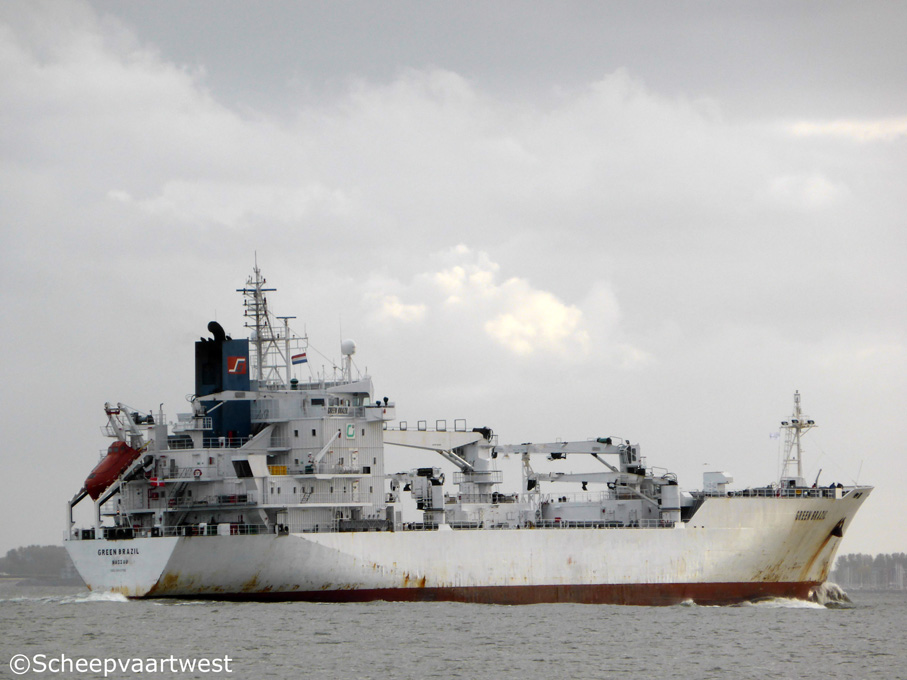

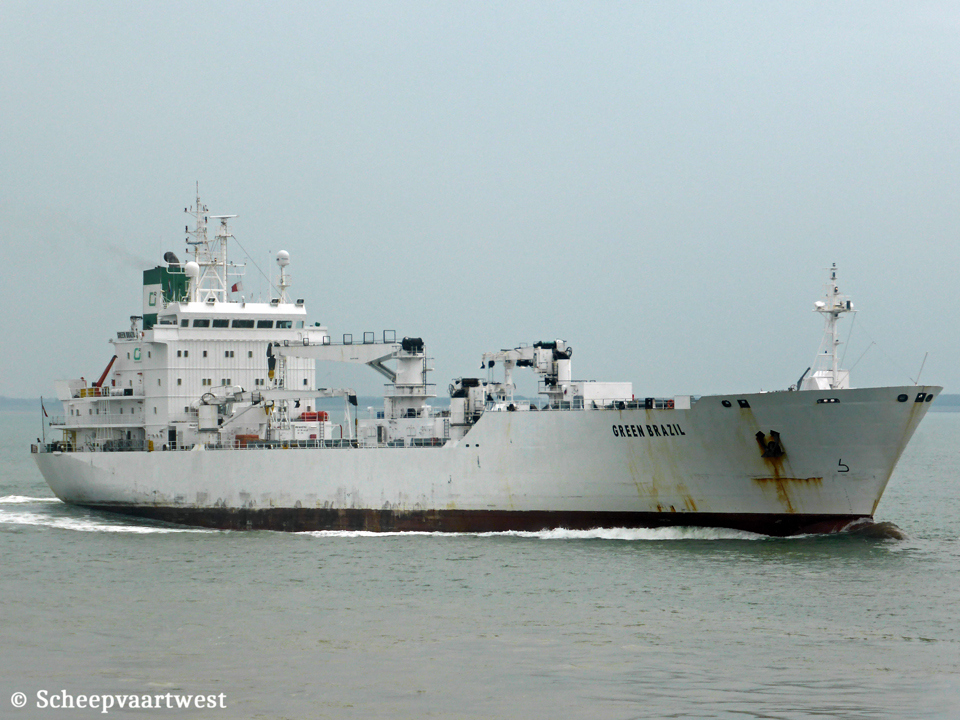

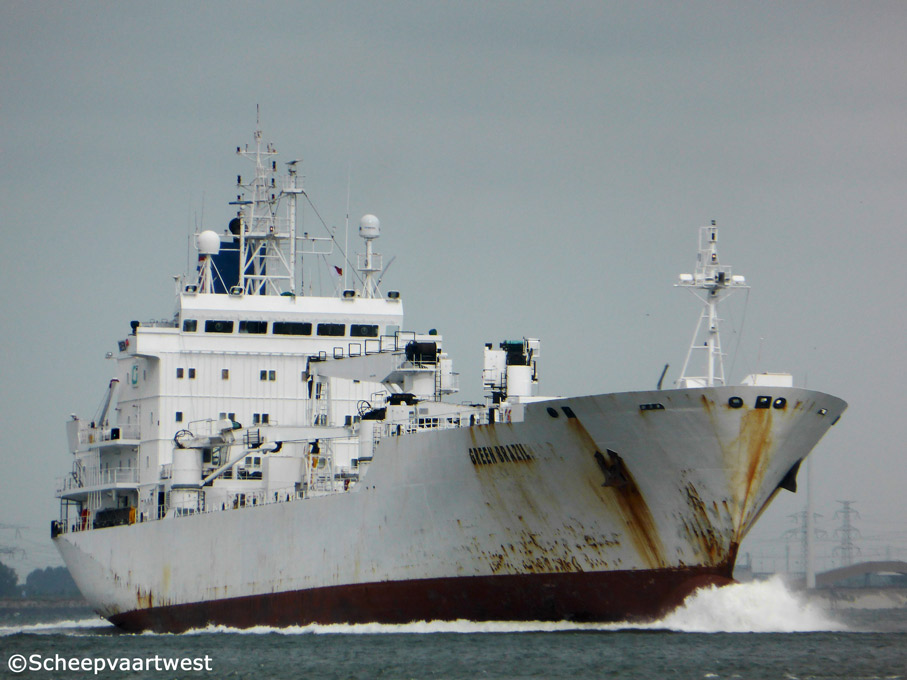

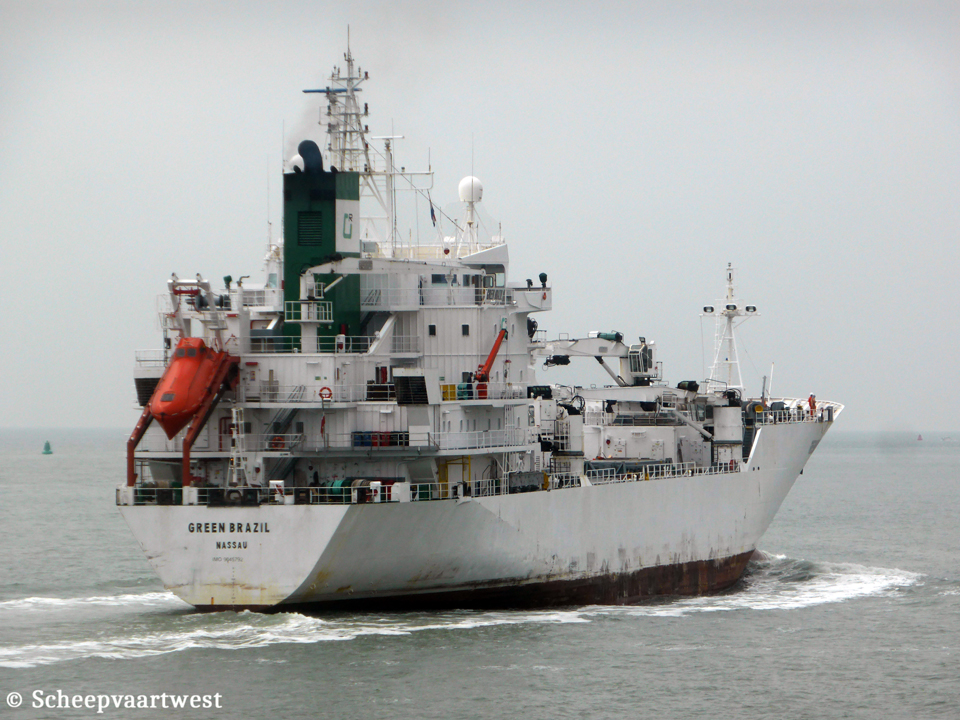

GREEN BRAZIL |
|
Previous names |
1994 - 1996 Crystal Pioneer 1996 - 1996 Pittsburg 1996 - 2005 Pioneer |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
9045792 |
|
Call sign |
C6WH6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1994 - 07/2007 Liberia, Monrovia |
|
GT |
7.743 t |
|
DWT |
Summer: 7.721 t |
|
NT |
3.726 t Panama: 6.416 t Suez: 5.953 t |
|
Container capacity on deck |
52 TEU or 30 FEU |
|
Reefer capacity |
29 on weatherdecks |
|
Length |
131,25 m overall 121,00 between perpendiculars 123,54 m registered |
|
Breadth |
19,62 m overall |
|
Draught |
Summer: 8,85 m |
|
Forecastle |
37,88 m |
|
Freeboard |
Summer: 4.000 mm Winter: 4.180 mm |
|
Depth |
12,85 m |
|
Speed |
19,7 knots |
|
Built |
1994 |
|
Keel laid |
29/01/1993 |
|
Launch date |
24/02/1994 |
|
Date of completion |
18/05/1994 |
|
Builder |
N.V. Boelwerf Vlaanderen N.V. Dijkstraat 6 B-9140 Temse Belgium |
|
Yard number |
1545 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
5 |
|
Number of decks |
4 |
|
Main engine |
1x Mitsui/MAN-7S50MC - 2 stroke single acting 7 cylinder 500 x 1.910 mm combustion engine 8.212 kW / 11.012 bhp Builder: Mitsui Engineering & Shipbuilding Tokyo - Japan |
|
Propellers |
1x Fixed pitch propeller (keyless) - aft |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
4x MAN diesel generatorsets each 650 kW |
|
Cargo capacity |
376.994 ft³ / 10.668 m³ |
|
Floor space |
4.510 m² |
|
Pallets |
3.500 |
|
Holds |
3 |
|
Hatches |
3 |
|
Compartments |
12 |
|
Ventilation |
90 Air-changes - Vertical |
|
Tank capacities |
Fuel oil:1.086 t Diesel oil:126 t Bunker capacity:1.143 t Ballast capacity: 9.543 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 1x Crane - SWL 40,0 t 3x Cranes - SWL 8,0 t each |
|
Manager |
Green Management Sp. z.o.o. Gdynia Poland |
|
Previous managers |
1994 - 2007 Reederei F. Laeisz GmbH, 18055 Rostock - Germany 2007 - 2010 Green Management AS |
|
Registered owner |
Caiano Shipping AS Strandgata 92 N-5528 Haugesund Norway |
|
Previous owners |
1994 - 2008 Green Shipping AS 2008 - 2009 Green Reefers ASA 2009 Green Shipping AS, Bergen - Norway |
|
Latest data adjustment |
16 January 2024 |
