Antwerpen 12 October 2014 |
|
Name |

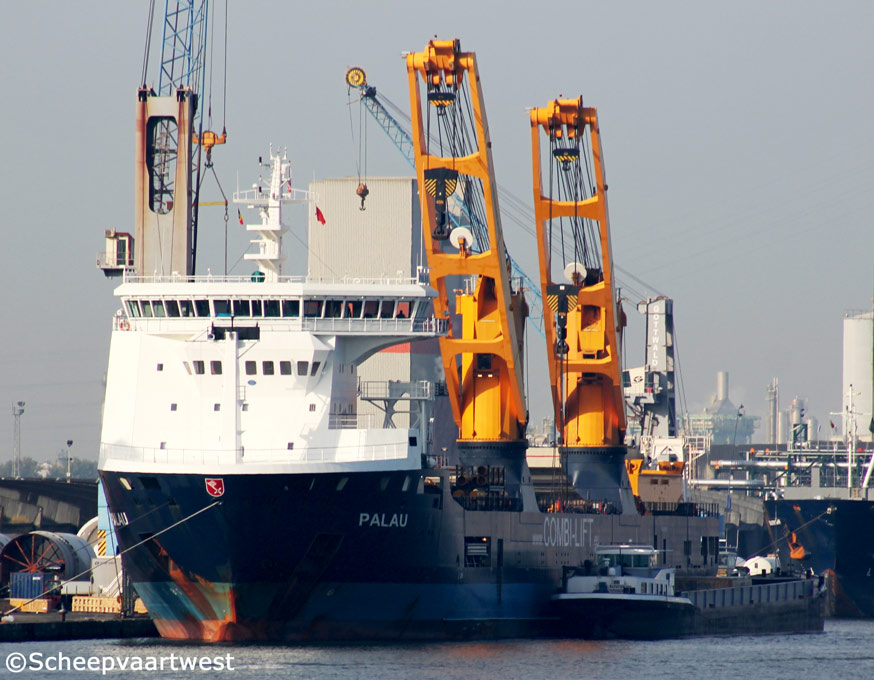

PALAU |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Heavy lift carrier - Single deck |
|
IMO-number |
9501899 |
|
Call sign |
9HA3090 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
2010 - 2012 Antigua and Barbuda, St. John's |
|
GT |
11.473 t |
|
DWT |
Summer: 9.962 t |
|
NT |
3.834 t |
|
Number of 20ft containers |
On deck: 340 In hold: 256 Total: 596 |
|
Length |
133,97 m overall 123,91 m registered |
|
Breadth |
23,00 m registered |
|
Draught |
7,80 m |
|
Forecastle |
16,01 m |
|
Freeboard |
3.612 mm |
|
Depth |
11,40 m moulded |
|
Speed |
16,5 knots |
|
Built |
2010 |
|
Keel laid |
17.12.2008 |
|
Launch date |
30.04.2010 |
|
Date of completion |
06.08.2010 |
|
Builder |
Taizhou Kouan Shipbuilding Co., Ltd. |
|
Yard number |
TK0304 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6L48/60B - 4 stroke 6 cylinder 480x 600 mm diesel engine - 7.200 kW at 500 rpm Year of manufacture: 2009 Manufacturer: MAN Diesel & Turbo SE |
|
Propellers |
1x Controllable pitch propeller, aft at 141 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 23,1 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 76,0 m² Year of manufacture: 2010 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
2x Plants each 450 V - 1.081 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 362,5 kVA 2x Plants each 24 V - 80 Ah 2x Plants each 24 V - 135 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 1.400 kVA |
|
Generators |
2x Main diesel generatorsets each 1.081 kVA |
|
Emergency generator |
1x Diesel generatorset 362,5 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for other purpose 200 Ah 2x Batteries for UPS navigation each135 Ah 2x Batteries for start emergency engine each80 Ah |
|
Compressed air receivers |
2x Receivers each 1.250 litres - 30,0 bar 1x Receiver 1.000 litres - 11,0 bar 2x Receivers each 100 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster 600 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
16.450 m³ |
|
Max. deckload |
Tanktop: 16 t/m² Tweendeck: 4,5 t/m² Hatchcover: 2,5 t/m² |
|
Tank capacities |
Fuel oil: 1.187 m³ Marine gas oil: 84 m³ |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Cargo gear |
2x Liebherr cranes - SWL 450 t each Combinable SWL up to max. 900 t |
|
Crew size |
24 |
|
Manager |
Harren & Partner Ship Management GmbH & Co. KG |
|
Registered owner |
PIT Pacific Investment & Trading GmbH & Co. KG |
|
Latest data adjustment |
06 December 2014 |
