Westerschelde 17 July 2014 |
|
Name |

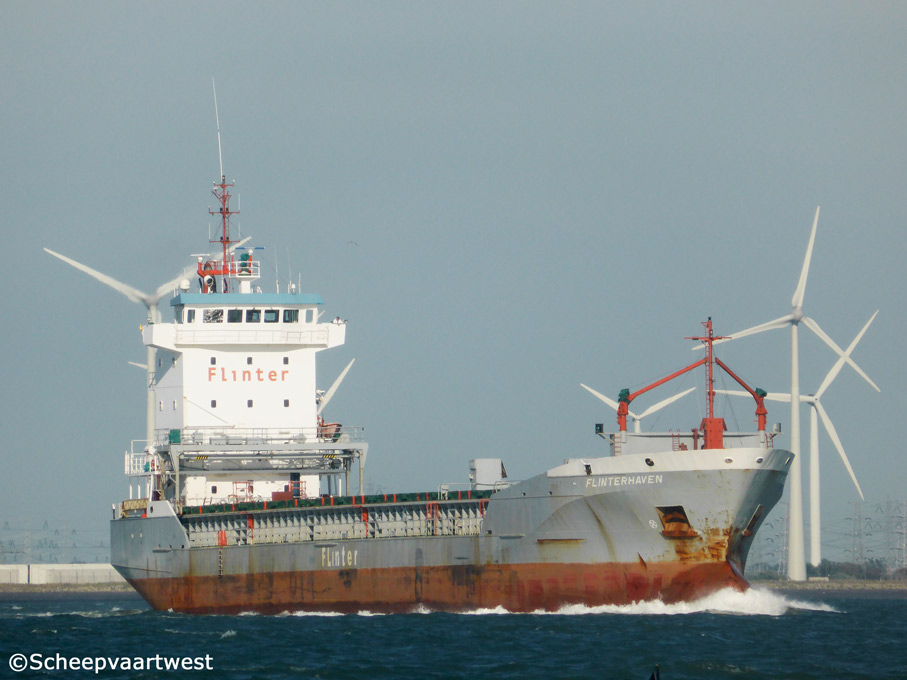

FLINTERHAVEN |
|
Type |
Multi-purpose general cargo ship - Container ship |
|
IMO-number |
9155901 |
|
Call sign |
PCEU |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
4.368 t |
|
DWT |
Summer: 6.067 t |
|
NT |
2.518 t |
|
Number of 20ft containers |
356 |
|
Length |
111,75 m overall 105,34 m between perpendiculars |
|
Breadth |
14,57 m moulded |
|
Draught |
Max.: 6,31 m |
|
Air draft |
Max.: 38,00 m |
|
Freeboard |
1.960 mm |
|
Depth |
8,25 m moulded |
|
Speed |
13,8 knots |
|
Built |
1997 |
|
Launch date |
09.08.1997 |
|
Date of completion |
18.09.1997 |
|
Builder |
Ferus Smit Scheepswerf B.V. The Netherlands |
|
Yard number |
312 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8R32E - 4 stroke single acting 8 cylinder 320 x 350 mm diesel engine - 3.280 kW / 4.456 hp at 750 rpm Built: 1997 Manufacturer: Stork-Wärtsilä Diesel B.V., Zwolle, Netherlands |
|
Propellers |
1x Screw propeller controllable pitch- aft at 197 rpm |
|
Boilers |
1x CHR GeKaKonus 40,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 430 kVA - 344 kW |
|
Generators |
3x Main diesel generatorsets each 168 kVA - 135 kW |
|
Number of holds |
2 |
|
Total capacity of holds |
Grain: 9.052,31 m³ Bales: 8.620 m³ |
|
Hatch type |
Pontoon |
|
Maw. Permitted loads |
Tanktop: 15 t/m² Hatch cover: 1,75 t/m² |
|
Hold ventilation |
6 per hour |
|
Fuel capacity |
463 m³ |
|
Manager |
2008 Flinter Management B.V. 2993 LV Barendrecht The Netherlands |
|
Operator |
Flinter |
|
Registered owner |
2008 BBS Bulk II KS |
|
Latest data adjustment |
31 December 2014 |
