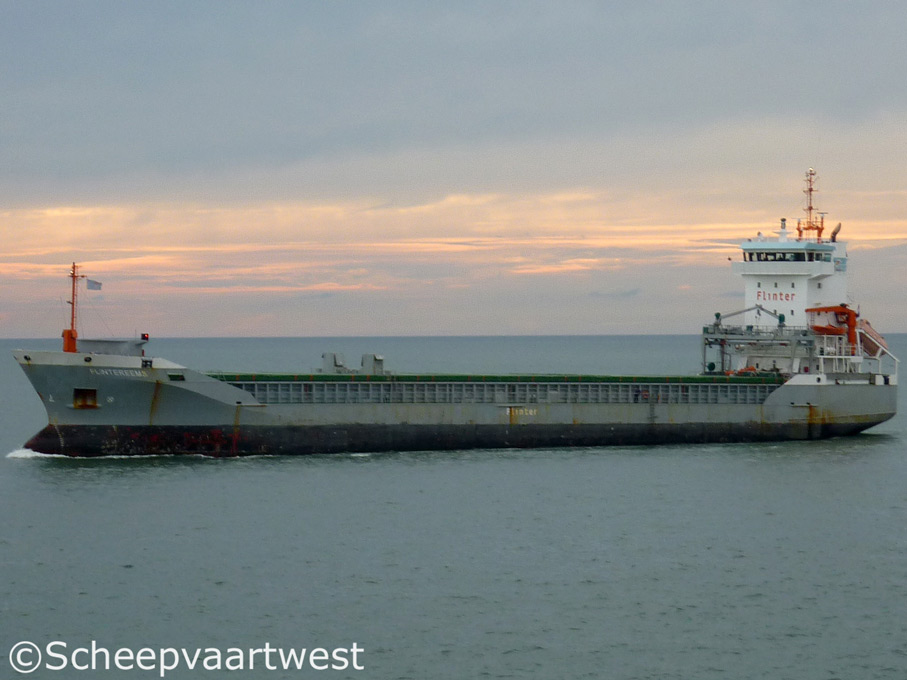

Flintereems 02
Westerschelde 25 August 2011

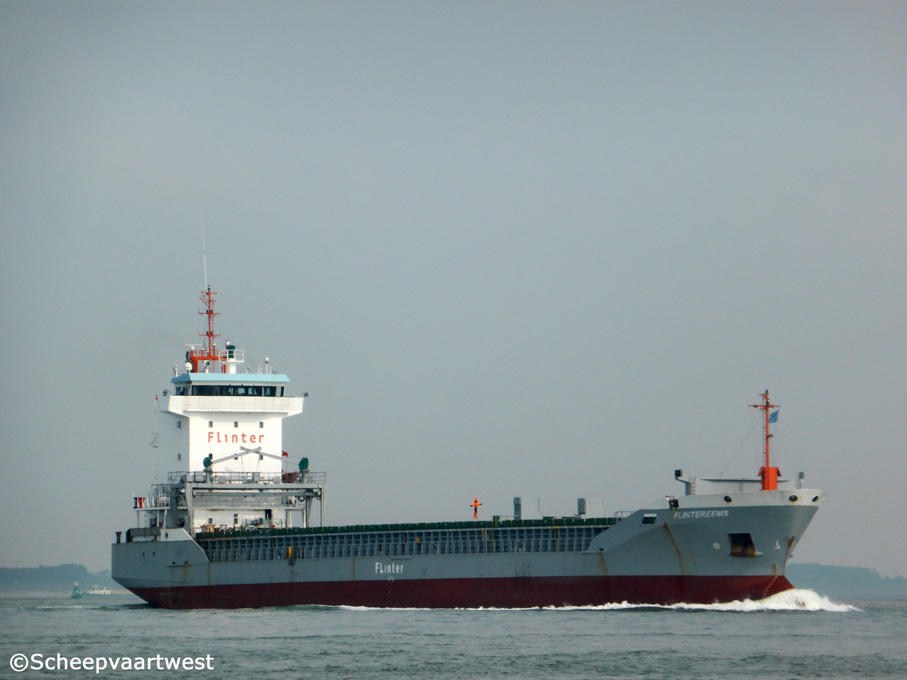

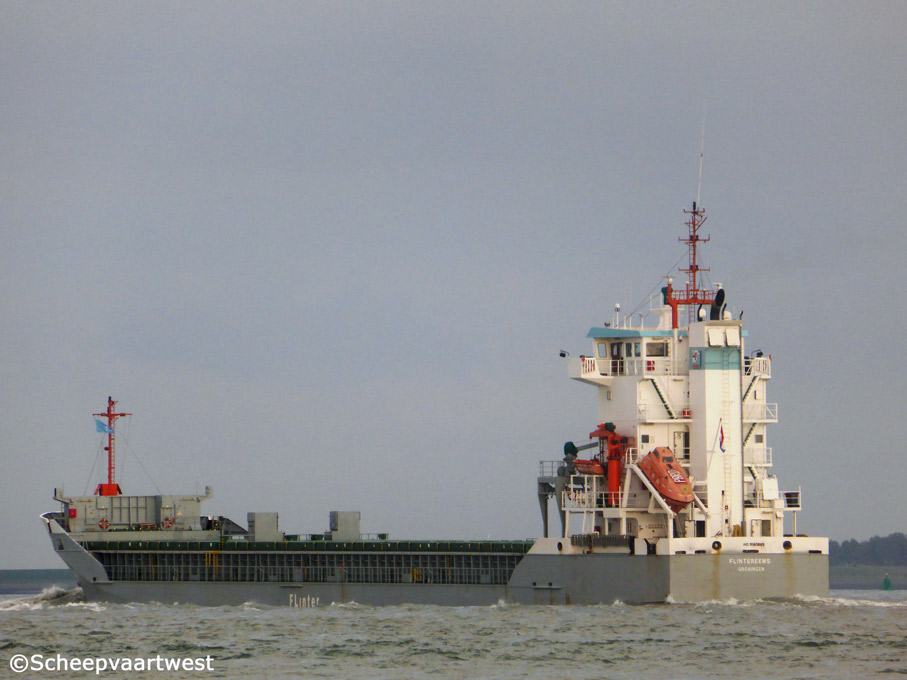

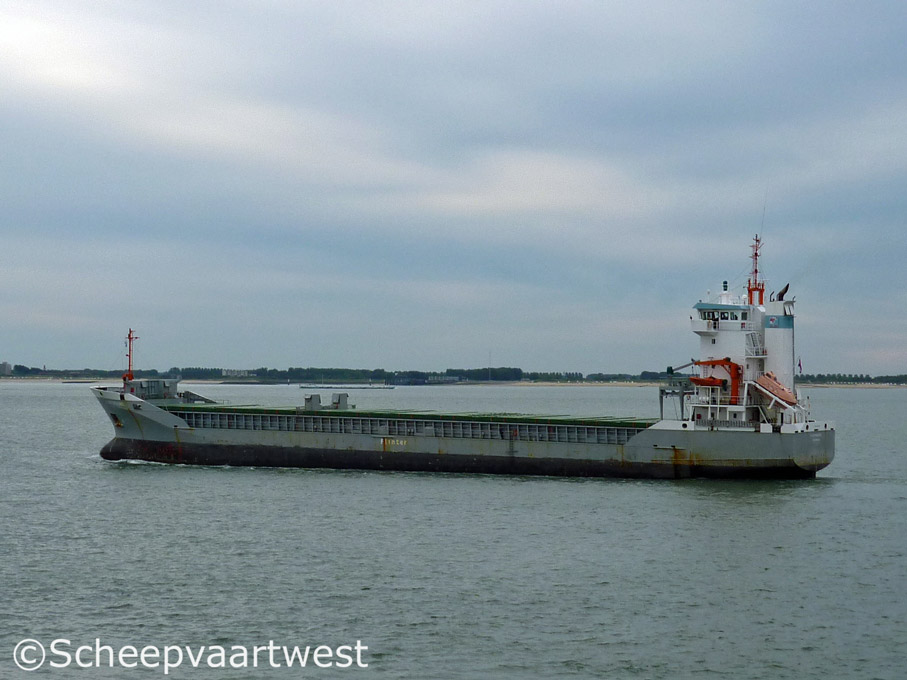

Flintereems 04   Flintereems 06   Flintereems 07
Westerschelde 25/08/11 Westerschelde 01/08/14 Westerschelde 15/07/14



Name

FLINTEREEMS

Type

Multi-purpose cargo ship with container facilities

IMO-number

9180865

Call sign

PBRD

Flag

The Netherlands

Port of registry

Groningen

GT

4.503 t

DWT

Summer: 6.358 t

Winter: 6.140 t

NT

2.462 t

Number of 20ft containers

390

Length

111,75 m overall

105,34 m between perpendiculars

Breadth

14,95 m moulded

Draught

Max.: 6,38 m

Freeboard

2.042 mm

Depth

8,25 m moulded

Air draft

Max.: 36,00 m

Speed

Service: 12,8 knots

Max.: 14,2 knots

Built

1999

Launch date

30.01.1999

Date of completion

12.03.1999

Builder

Scheepswerf Ferus Smit B.V.
Westerbroek
The Netherlands

Yard number

319

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

1x Wartisla 8SW280 - 4 stroke single acting 8 cylinder 320 x 350 mm diesel engine - 3.280 kW / 4.457 hp at 750 rpm

Built: 1998

Builder: Wärtsilä Diesel Oy, Vaasa - Finland

Electrical propulsion gen.

1x 344 kW - 400 Volt

Propelling system

1x Screw propeller controllable pitch at 198 rpm

Boilers

1x CHO Gekakonus - 10,0 bar
1x CHR Gekakonus - 10,0 bar

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Diesel generatorsets each 200 kVA - 160 kW - 236 hp

Emergency generators

1x Diesel generatorset 106 kVA - 85 kW - 132 hp

Number of holds

2

Total capacity of holds

Grain: 9.052 m³

Bale: 8.620 m³

Tank Top Strength

15,0 t/m²

Hatch Cover Strength

1,75 t/m²

Air Changes

6 per hour

Manager

03.2009 Flinter Groningen B.V.
Groningen
The Netherlands

Operator

Flinter Shipping BV
Barendrecht
The Netherlands

Owner

03.2009 BBS Bulk IV KS
Norway

Registered owner

C.V. Scheepvaartonderneming Flintereems

Latest data adjustment

18 January 2015
