Westerschelde 17 July 2014 |
|
Name |

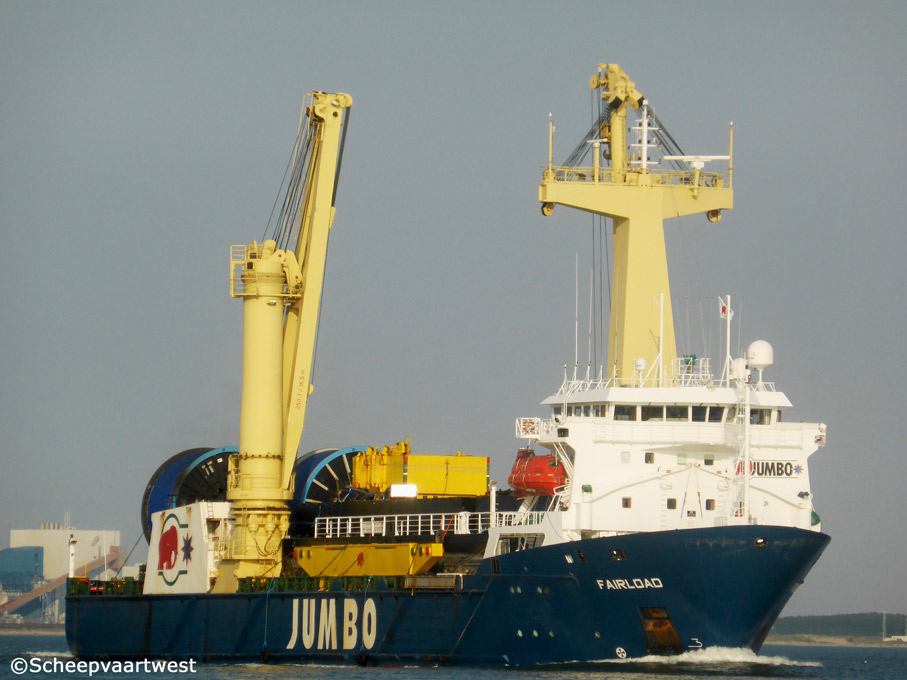

FAIRLOAD |
|
Type |
General cargo - Heavy lift vessel - Strengthened for heavy cargoes |
|
IMO-number |
9083134 |
|
Call sign |
PEBP |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
4.962 t Suez: 4/871 t |
|
DWT |
Summer: 5.158 t |
|
NT |
1.488 t Suez: 3.906 t Panama: 4.228 t |
|
Number of 20ft containers |
300 |
|
Length |
95,72 m overall 87,55 m between perpendiculars |
|
Breadth |
18,37 m extreme |
|
Draught |
6,81 m |
|
Air draft |
40,00 m |
|
Depth |
11,32 m moulded |
|
Speed |
14,0 knots |
|
Built |
1995 |
|
Launch date |
12.06.1995 |
|
Date of completion |
22.09.1995 |
|
Builder |
YVC Ysselwerf B.V. The Netherlands |
|
Yard number |
263 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 6M32 - 4 stroke single acting 6 cylinder 320 x 480 mm diesel engine 2.640 kW at 600 rpm Manufacturer : Krupp MaK Maschinenbau GmbH, Kiel - German Federal Republic |
|
Propellers |
1x Controllable pitch propeller |
|
Bow thrusters |
Thrustmaster JT 800/42 Jet Bow thruster - 475 kW |
|
Number of holds |
1 Dimensions: Lowerhold: 47,28 x 13,95 x 3,65 m Tweendeck: 66,98 x 13,95 x 4,03 m Total height: 9,75 m |
|
Hold capacity |
Bale: 7.167 m³ with tweendecks in holds |
|
number of hatches |
1 |
|
Number of tweendecks |
1x Adjustable in height |
|
Max. permitted loads |
Tanktop: 12,0 t/m² Hatch covers: 3,50 t/m² Tweedeck: 3,50 t/m² |
|
Free deck space |
1.150 m² |
|
Bunker capacity |
IFO: 540 t MGO: 110 t Fresh water: 110 t Lub oil: 100 t |
|
Lifting equipment |
2x Auxiliary hoist - SWL 25 t |
|
Cargo gear |
1x Crane - SWL 250 t 1x Derrick - SWL 250 t Combined: 500 t |
|
Manager |
Jumbo Headquarters |
|
Owner |
Fairplay Heavy Lift B.V. |
|
Latest data adjustment |
11 February 2015 |
