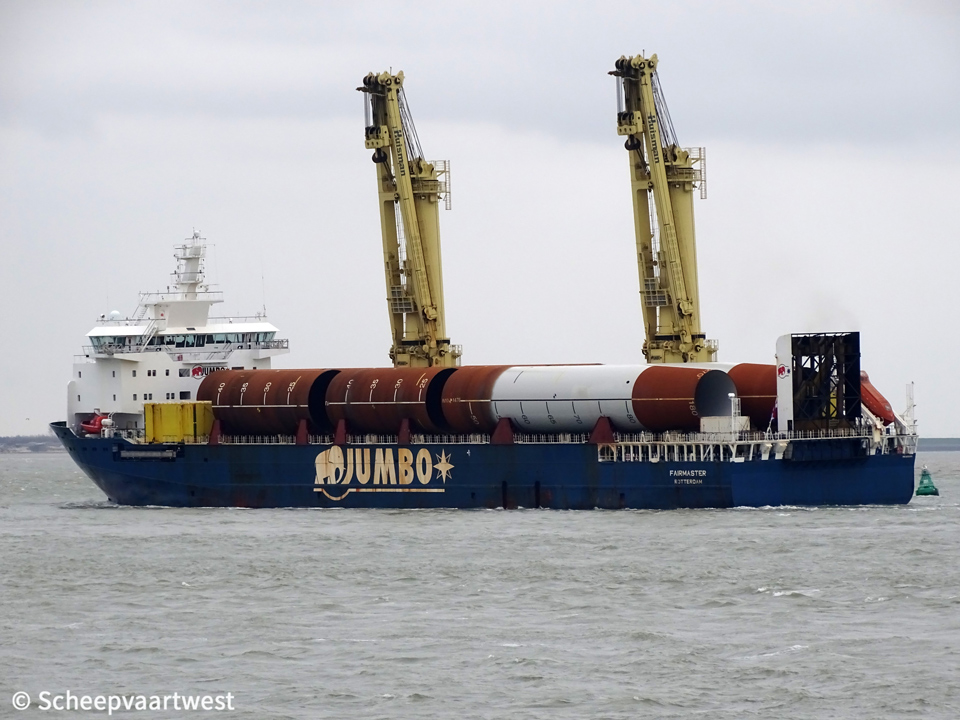

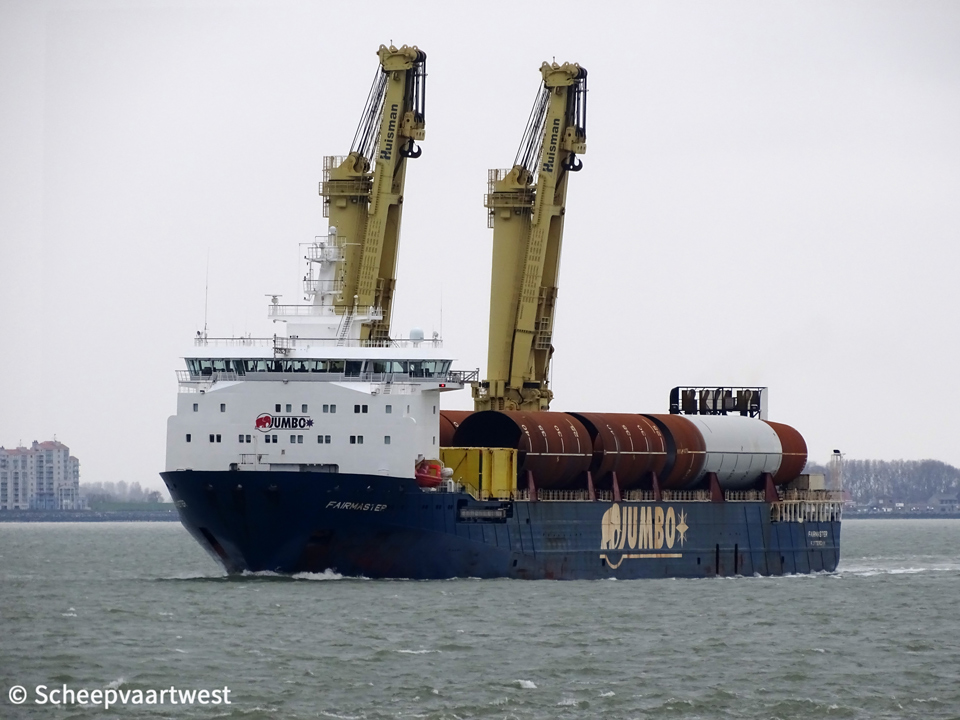

Westerschelde 29 Januaru 2019 |
 |
 |
 |
||

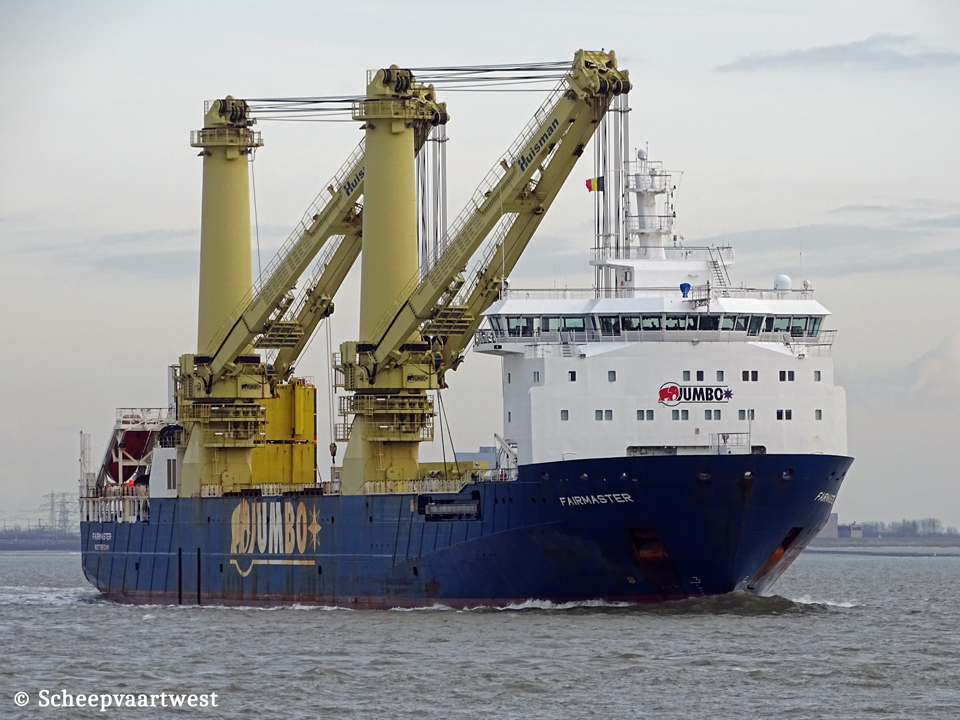

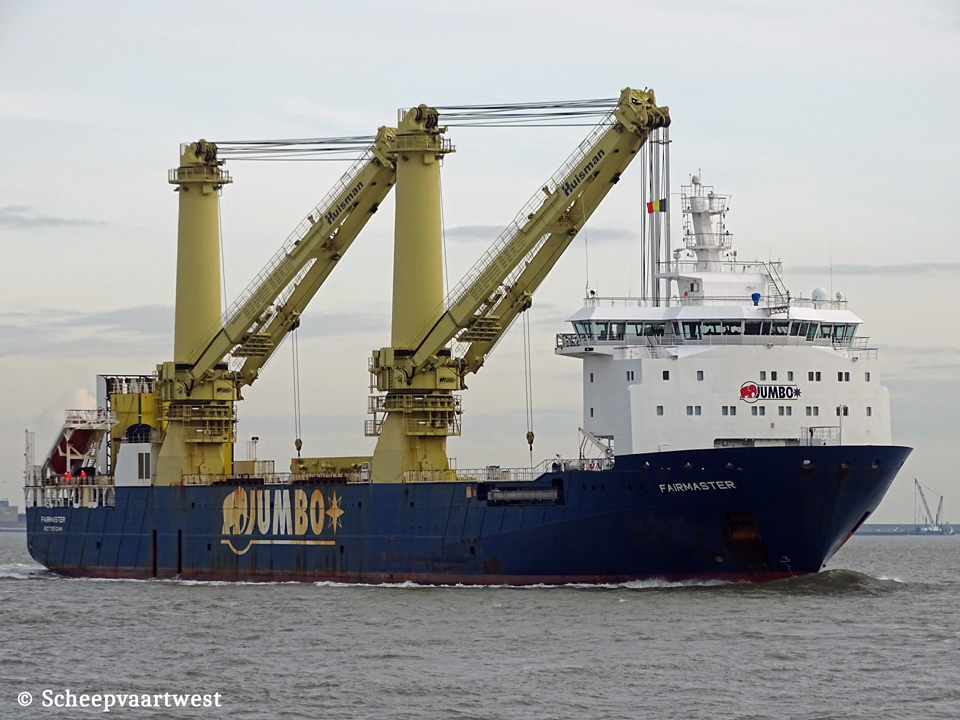

| Westerschelde 29/01/19 | Westerschelde 14/03/20 | Westerschelde 14/03/20 | ||
|
Name |
FAIRMASTER |
|
Type |
General cargo - Heavy load carrier |
|
IMO-number |
9650585 |
|
Call sign |
PCYQ |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
2015 - 2015 Croatia - Call sign: 9AA7492 |
|
GT |
18.099 t Suez: 17.620 t |
|
DWT |
12.989 t |
|
NT |
6.397 t Suez: 14.476 t Panama: 15.131 t |
|
Length |
152,60 m overall 141,70 m between perpendiculars |
|
Breadth |
27,43 m moulded 27,76 m extreme |
|
Draught |
Max: 8,65 m |
|
Depth |
14,10 m mmoulded |
|
Speed |
Max: 17,0 knots |
|
Built |
2015 |
|
Keel laid |
28/11/2012 |
|
Launch date |
17/04/2014 |
|
Date of completion |
15/06/2015 |
|
Builder |
Shipbuilding Industry Split Inc. (Brodogradiliste 'Brodosplit' d.o.o) Split Croatia |
|
Yard number |
474 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x MaK 9M32C- 4 stroke single acting 9 cylinder combustion engines total 9.000 kW / 12.230 bhp |
|
Propellers |
2x Controllable pitch propeller |
|
Shaft generator |
2x 3.00 kW |
|
Generators |
1x Generatorset 1.720 kW 1x Generatorset 1.088 kW |
|
Bow thruster |
1x Berg 1.500 kW |
|
Cargo holds |
Lower hold: 82,90 x 17,00 x 5,60 m Upper hold: 108,60 x 17,00 x 7,00 m Hold: total height: 12,60 m |
|
Cargo hold capacity |
Bale: 19.191 m³ with tweendecks fitted |
|
Number of hatches |
1 |
|
Free deck space |
3.183 m³ |
|
Max permitted loads |
Tanktop: 12,0 t/m² Tweendeck: 7,0 t/m² Hatch covers: 2x 8,7 t/m² 3x 12,0 t/m² |
|
Cargo gear |
2x Cranes - SWL 1.500 t each In combination: 3.000 t Builder: Huisman, Zhangzhou - China |
|
Tank capacities |
IFO: 1.499 t MGO: 301 t Fresh water: 162,7 t |
|
Crew size |
10 |
|
Manager |
Kahn Scheepvaart B.V. Van Vollenhovenstraat 3 3016 BE Rotterdam The Netherlands |
|
Operator |
Jumbo Offshore v.o.f. Havenstraat 23 3115 HC Schiedam The Netherlands |
|
Registered owner |
Jumbo K 2 C.V. Havenstraat 23 3115 HC Schiedam The Netherlands |
|
Latest data adjustment |
22 June 2023 |
