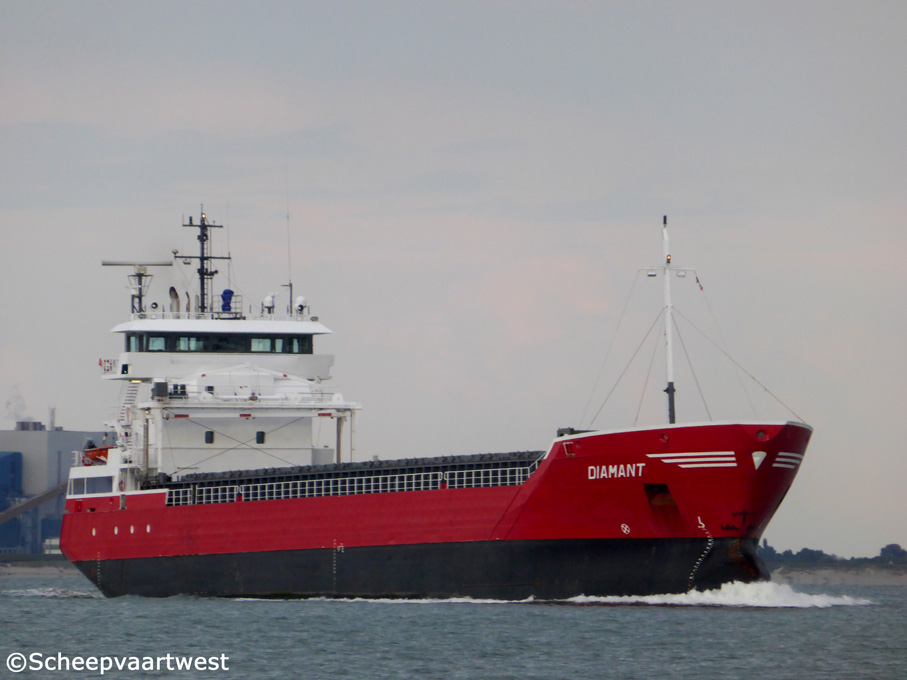

Diamant 01

Westerschelde 03 August 2014

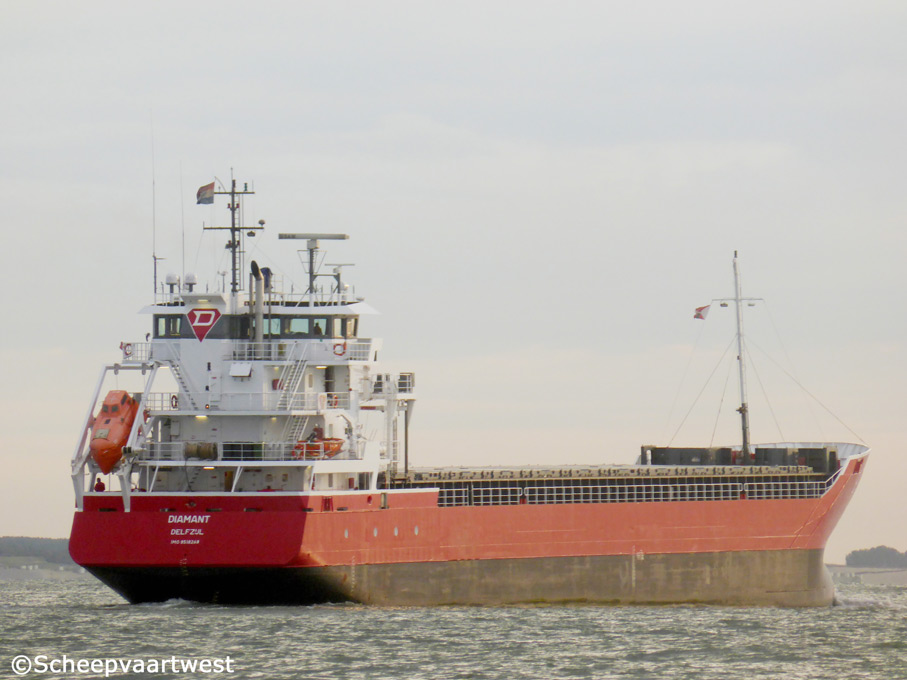

Diamant 02
Westerschelde 03/08/14



Name

DIAMANT

Type

General cargo ship - Strengthened for heavy cargo

Open hatch fully box

IMO-number

9518268

Call sign

PCNK

Flag

The Netherlands

Port of registry

Delfzijl

GT

3.739 t

DWT

5.279 t

DWCC

Summer: 4.850 t

NT

1.491 t

Light weight

1.553,68 t

Number of 20ft containers

In hold: 108 TEU or 48 FEU + 12 TEU

On hatchcover: 84 TEU or 40 FEU + 4 TEU

Total: 192

Length

99,99 m overall

96,67 water line

92,50 m between perpendiculars

Breadth

13,35 m moulded

Draught

Summer: 6,15 m

Winter: 6.03 m

Air draft

28,50 m in ballast

Depth

9,10 m moulded

Speed

12,0 knots

Built

2012

Keel laid

15/12/2008

Launch date

16/06/2011

Date of completion

12/01/2012

Builder casco

Brodogradiliste Leda d.o.o.

Korcula

Croatia

Builder completion

Scheepswerf Peters B.V

Kampen

The Netherlands

Yard number

1104

Hull material

Steel

Hull type

Double skinned

Movable bulkhead

2

Continuous decks

1

Main engine

1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.445 bhp at 1.000 rpm

Built: 2011

Manufacturer: Wärtsilä Diesel O/Y, Turku - Finland

Propellers

1x Controllable pitch propeller

4 blades - Diameter: 2.950 mm

Electric installations

200/230 V - 50 Hz

Shaft generator

1x 544 kW

Generators

2x Sisu 74-CTA-4V - 6 cylinder 108 x 134 mm diesel engine at 1.500 rpm coupled with Stamford generator 212,5 kVA each

Emergency generator

1x Diesel generatorset 77,5 kVA

Bow thruster

1x Veth VT-240 - 280 kW

Number of holds

1

64,80 x 11,20 x 9,60 m

Hold capacity

Grain: 234.650 ft³ / 6.644 m³

Hold ventilation

6x Air changes per hour basis empty hold

Hold is fitted with dehumidifier system

Number of hatches

1

64,80 x 11,20 m

Type of hatches

Pontoon

Max. permitted loads

Hatchcover: 1,6 t/m²

Tanktop: 15 t/m²

Tank capacities

Ballast water: 1.909 m³

Potable Water: 42 m³

MGO: 366 m³

Lubricating Oil: 8,8 m³

Dirty Oil: 7,7 m³

Sewage: 8 m³

Gas oil: 33 m³

Lifting equipment

1x Gantry deck crane

Cargo gear

Gearless

Manager

Wagenborg Shipping BV

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Owner

C.V. Scheepvaartonderneming Diamant

V.o.f. Rederij van Donderen

Delfzijl

The Netherlands

Renamed

10/2021 Gaastborg

The Netherlands, Delfzijl - Call sign: PCNK

Manager: Wagenborg Shipping, Delfzijl - The Netherlands

Owner: Gaasttborg B.V., Delfzijl - The Netherlands

Latest data adjustment

19 December 2021
