Diamantgracht 01

Westerschelde 20 May 2016

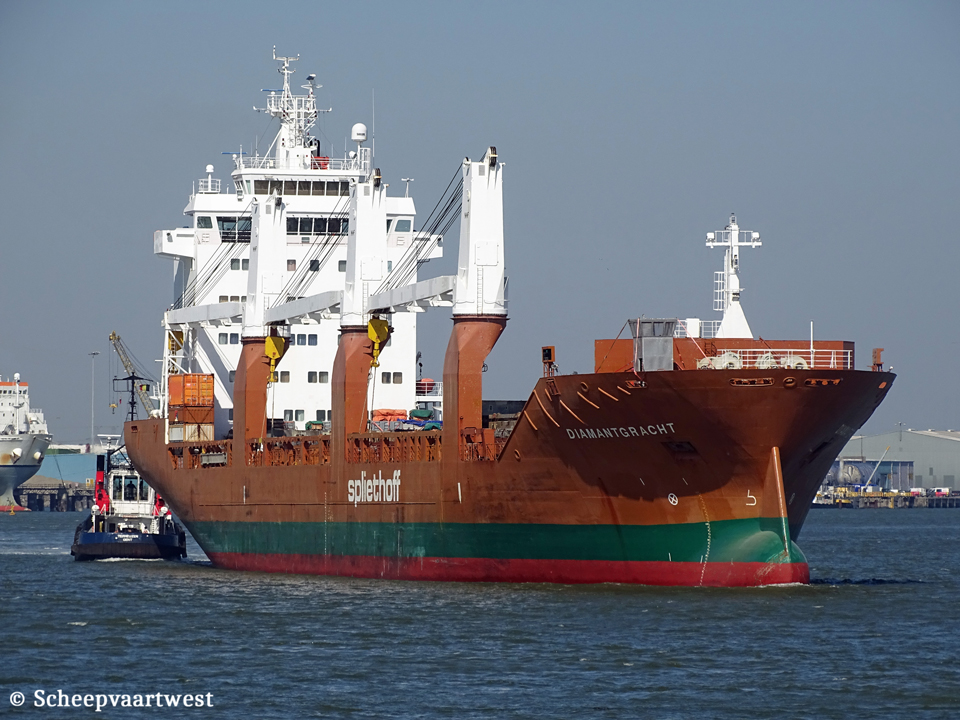

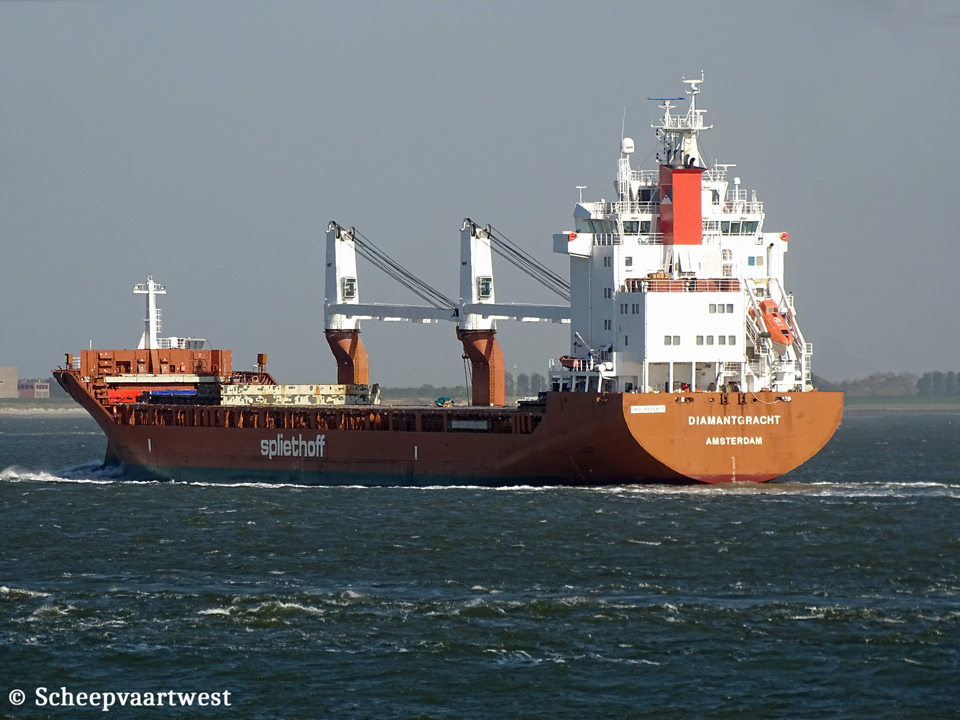

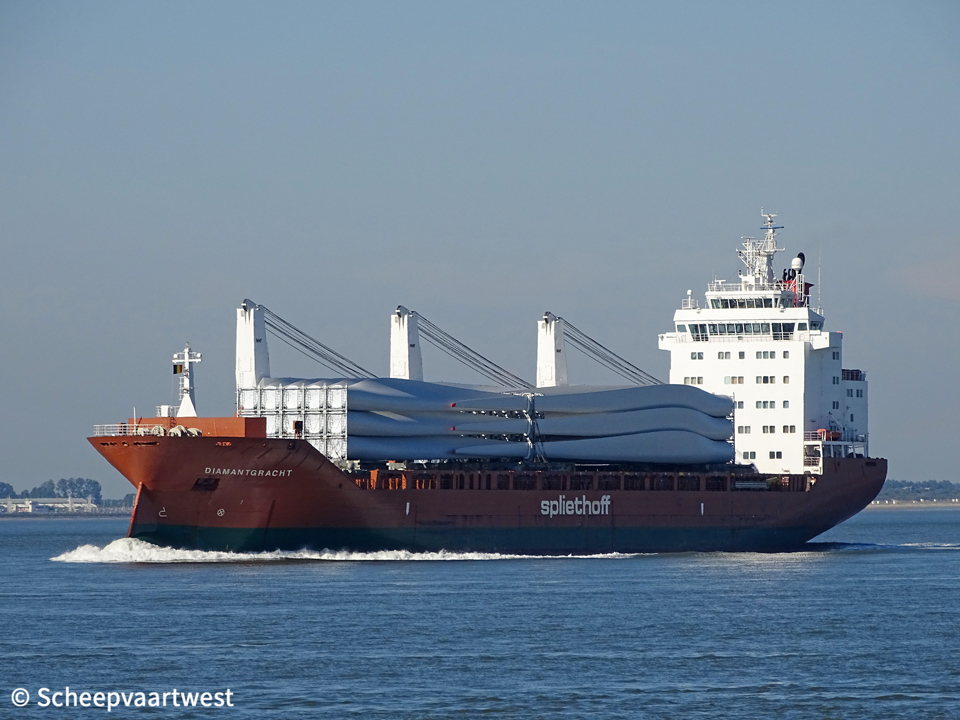

Diamantgracht 02   Diamantgracht IMO 9420813 03   Diamantgracht IMO 9420813 04   Diamantgracht IMO 9420813 05
Westerschelde 27/05/17 Westerschelde 20/04/20 Westerschelde 06/12/18   Vlissingen 22/04/20


Name

DIAMANTGRACHT

Type

General cargo ship

IMO-number

9420813

Call sign

PBLQ

Flag

The Netherlands

Port of registry

Amsterdam

GT

13.558 t

DWT

17.556 t incl. tweendeck

18.143 t excl. tweendeck

NT

5.981 t

Number of 20ft containers

In hold: 470

on deck: 599

Total: 1.069

Length

156,89 m overall

147,75 m between perpendiculars

Breadth

22,80 m moulded

Draught

Summer: 10,28 m

Depth

14,00 m moulded

Speed

17,0 knots

Built

2009

Keel laid

10/10/2008

Launch date

11/04/2009

Date of completion

28/07/2009

Builder

Jinling Shipyard

Nanjing

China

Yard number

JLZ 060-405

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Wärtsilä Type 8L46 - 4 stroke single acting 8 cylinder 460 x 580 mm combustion engine 8.400 kW / 11.415 bhp

Propellers

1x Fixed pitch propeller

Bow thruster

1x 850 kW

Number of holds

2

Cargo hold capacity

Hold 1: 208.000 ft³ / 5.890 m³

Hold 2: 557.250 ft³ / 15.780 m³

Total: 765.250 ft³ / 21.670 m³

If tween deck installed 53.000 ft³ / 1.500 m³ less in hold

Air changes

Basis empty holds:

Hold 1: 20x per hour

Hold 2: 15x per hour

Hatches

Weather deck:

Hatch 1: 32,00 x 12,70 m

Hatch 2: 70,40 x 17,80 m

Steel, end folding/rolling/lift away type

Tween deck:

Hatch 1: 25,80 x 17,80 m

Hatch 2: 64,00 x 17,80 m

Consisting: 15 steel pontoons

1 of 6,37 x 9,30 m

1 of 6,37 x 12,60 m

1 of 6,37 x 15,15 m

10 of 6,37 x 17,70 m

2 of 3,17 x 17,72 m

Floor space

Tank top: total 1.423 m²

Tween deck: total 1.790 m²

Weather deck:1.760 m²

Max. permitted loads

Weather deck hatch covers: 2,60 t/m²

Tweendeck hatch covers:

Hatchway 1:

7,50 t/m², forward

5,50 t/m,² aft

Hatchway 2:

5,50 t/m²

20,00 t/m²

Tank capacities

Ballast : 6.675 m³

Fuel oil: 1.575 m³

Diesel oil: 280 m³

Cargo gear

3x NMF cranes on starboard side

SWL 120 t @ 16,00 m

SWL 90 t @ 21,00 m

SWL 55 t @ 30,00 m

Crew size

29

Tank capacities

Ballast: 6.675 m³

Fuel oil: 1.575 m³

Diesel oil: 280 m³

ISM & commercial manager

Spliethoff's Bevrachtingskantoor B.V.

Radarweg 36

1042 AA Amsterdam

The Netherlands

Registered owner

Diamantgracht Rederij c/o Spliethoff's BV

Radarweg 36

1042 AA Amsterdam

The Netherlands

Previous owners

07/2009 - 12/2012 C.V. Scheepvaartonderneming Diamantgracht, Amsterdam - The Netherlands

Latest data adjustment

05 May 2022
