Schelde 12 March 2105 |
 |
| Schelde 12/03/15 |
|
Name |

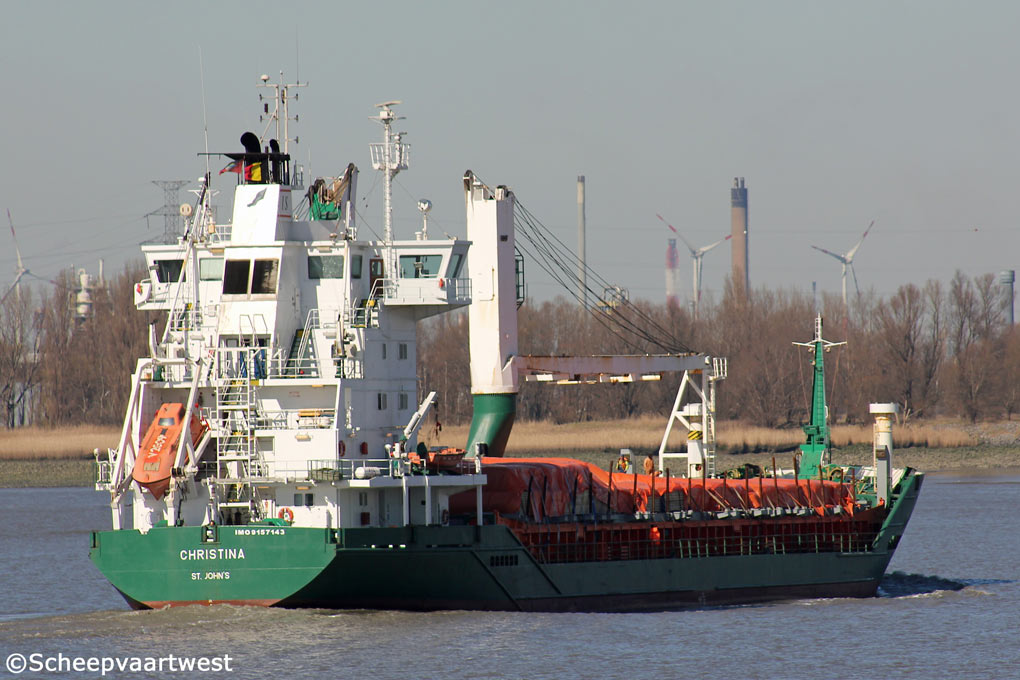

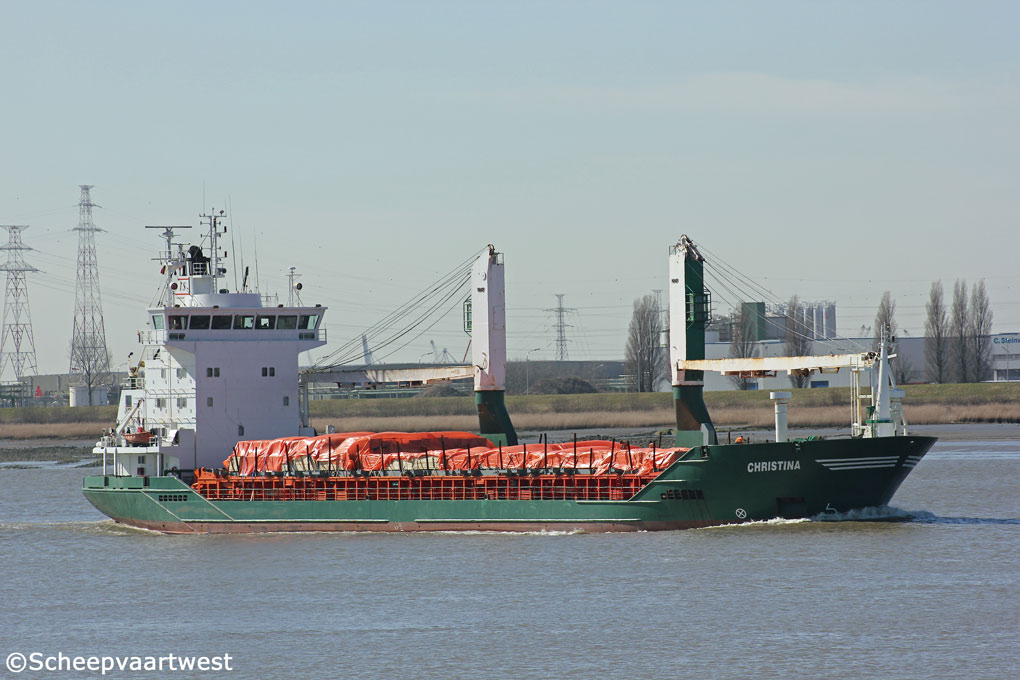

CHRISTINA |
|
Previous names |
1997 Launch as: Christina 1997 - 01.2002 Christina Star 01.2002 - 07.2002 Christina 07.2002 - 08.2003 Kanilai 02.2003 - 09.2007 Christina 09.2007 - 08.2014 Adrana |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9157143 |
|
Call sign |
V2GO9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
4.320 t |
|
DWT |
Summer: 6.366 t |
|
DWCC |
Summer: 6.100 t Winter: 6.000 t |
|
NT |
2.260 t |
|
Number of 20ft containers |
331 |
|
Container capacity 14t |
230 |
|
Reefer capacity |
40 points on deck (fem.) 400V, 3 phases, 50 Hz |
|
Length |
99,98 m overall 92,44 m registered |
|
Breadth |
17,00 m registered |
|
Draught |
7,27 m |
|
Forecastle |
9,84 m |
|
Poop |
13,30 m |
|
Depth |
9,25 m moulded |
|
Speed |
14,0 knots |
|
Built |
1997 |
|
Keel laid |
12.07.1994 |
|
Launch date |
01.07.1997 |
|
Date of completion |
09.1997 |
|
Builder |
Peterswerft Wewelsfleth GmbH & Co. KG |
|
Yard number |
652 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
3 |
|
Main engine |
1x Stork-Wärtsilä 6L38 - 4 stroke 6 cylinder 380 x 475 mm diesel engine - 3.960 kW at 600 rpm Reduced power: 2.980 kW Year of manufacture: 1997 Manufacturer: Stork-Wärtsilä Diesel B.V. |
|
Propellers |
1x Controllable pitch propeller - aft at 160 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1997 |
|
Electric installations |
1x Plant 380/220 V - 620 kVA 1x Plant 380 V - 625 kVA 1x Plant 380 V - 250 kVA |
|
Shaft generator |
1x 625 kVA |
|
Generators |
1x MAN diesel generatorset 620 kVA |
|
Emergency generator |
1x Volvo diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 300 kW, forward |
|
Number of holds |
1 Dimensions: 58,10 x 13,85 x 9,40 m |
|
Cargo hold capacity |
Grain & bales: 7.511 m³ / 254.250 ft³ |
|
Number of hatches |
1 Dimensions: 58,10 x 13,85 m |
|
Hatch covers |
Steel - Folded type |
|
Load of hatch covers |
1,7 t/m² |
|
Strength tanktop |
15,3 t/m² |
|
Ventilation hold |
6x Electric |
|
Tank capacities |
Fuel oil: 300 t Diesel oil: 26 t Fresh water: 66 t Ballast water: 2.575 t |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m |
|
Cargo gear |
2x Cranes each SWL 35,0 t @ 18,00 m outreach - Port side SWL 32 t @ 19,00 m outreach SWL 25 t @ 24,00 m outreach Combinable: 2x SWL 35 t - 35 t |
|
Crew size |
15 |
|
Manager |
Interscan Schiffahrtsgesellschaft mbH |
|
Registered owner |
MS "Christina" Interscan UG (haftungsbeschränkt) & Co. KG |
|
Latest data adjustment |
04 April 2015 |
