Ponta Delgada - Azores 08 June 2015 |
![]() |
![]() |
![]() |
![]() |
|||

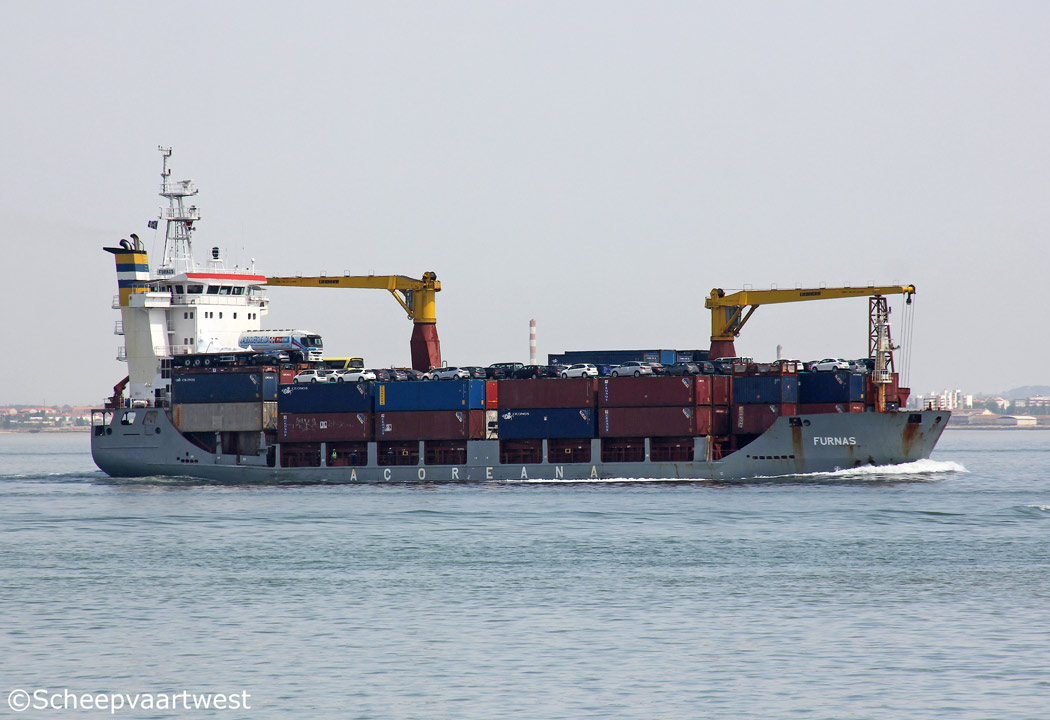

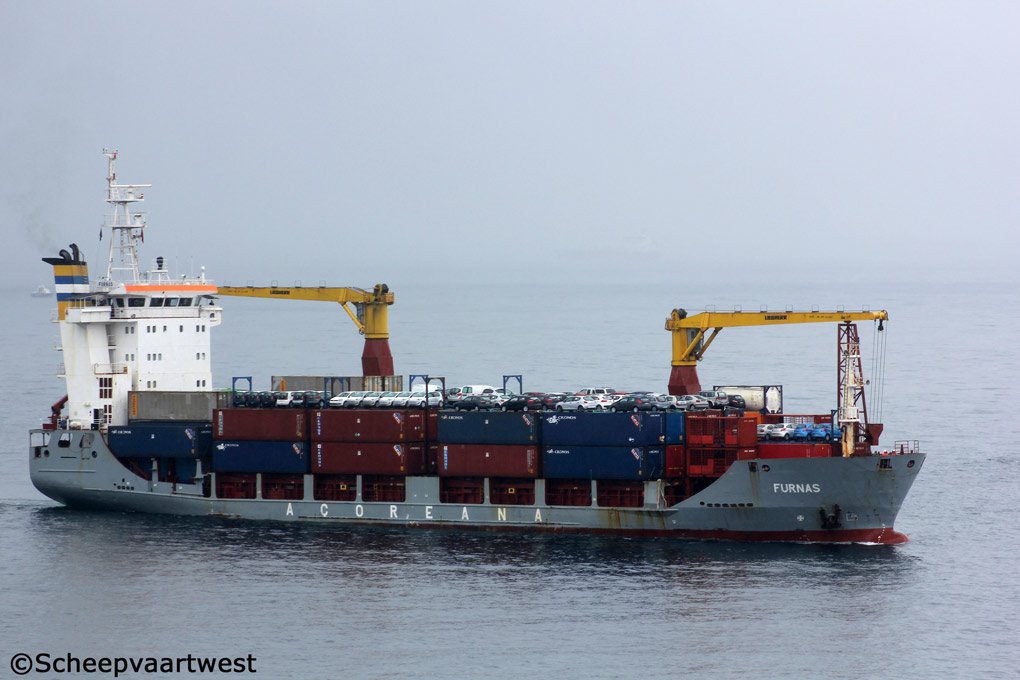

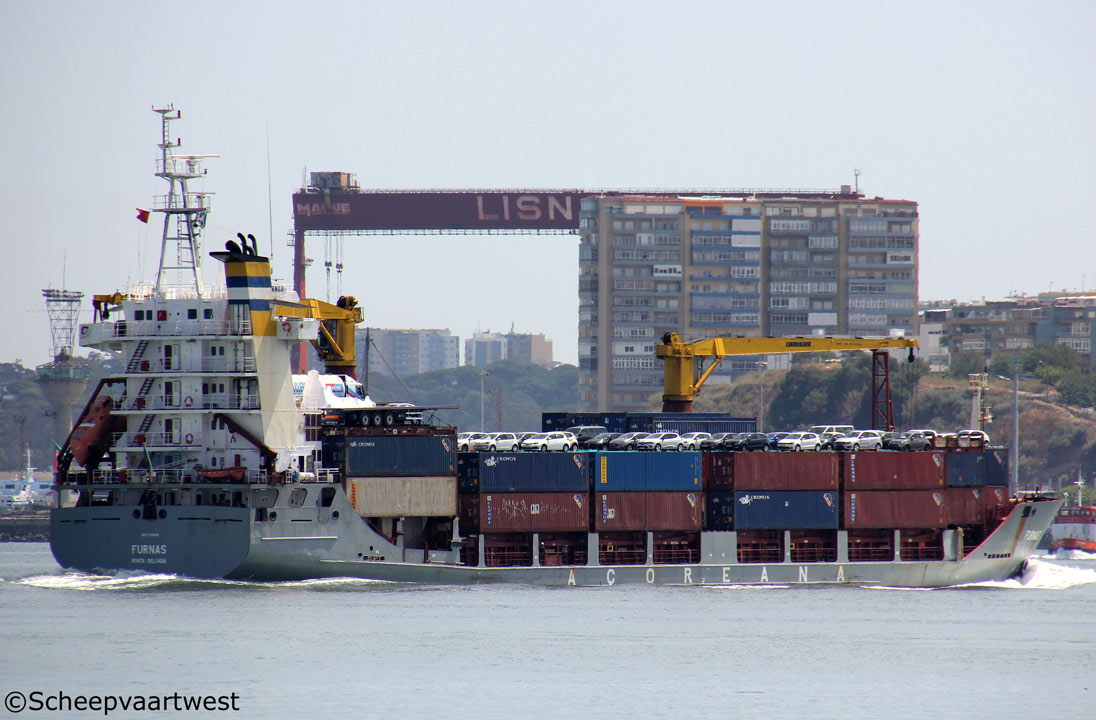

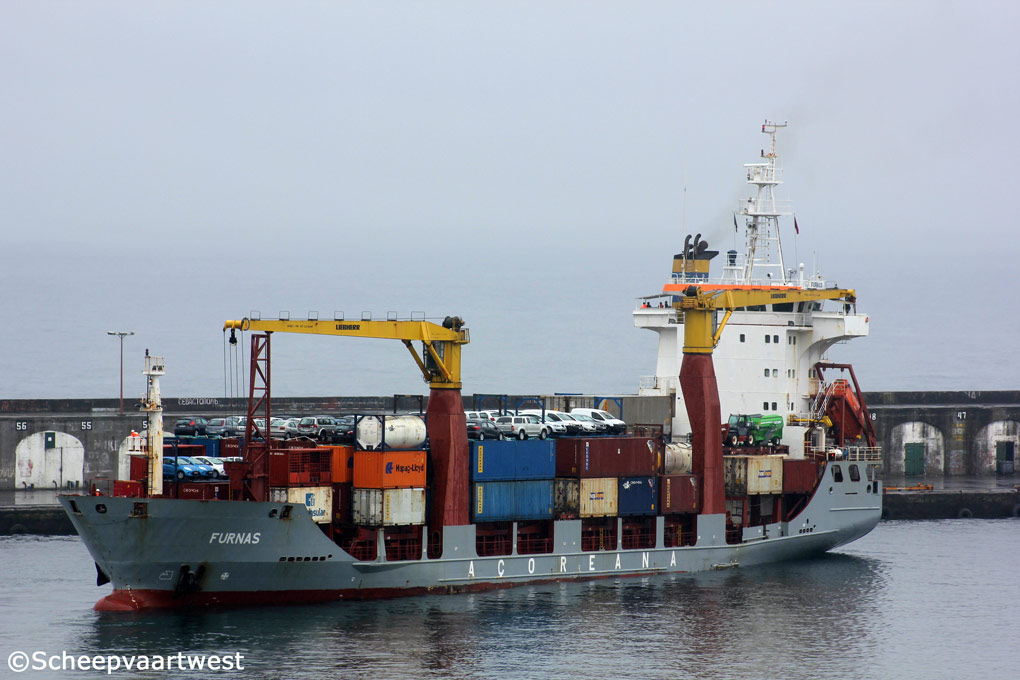

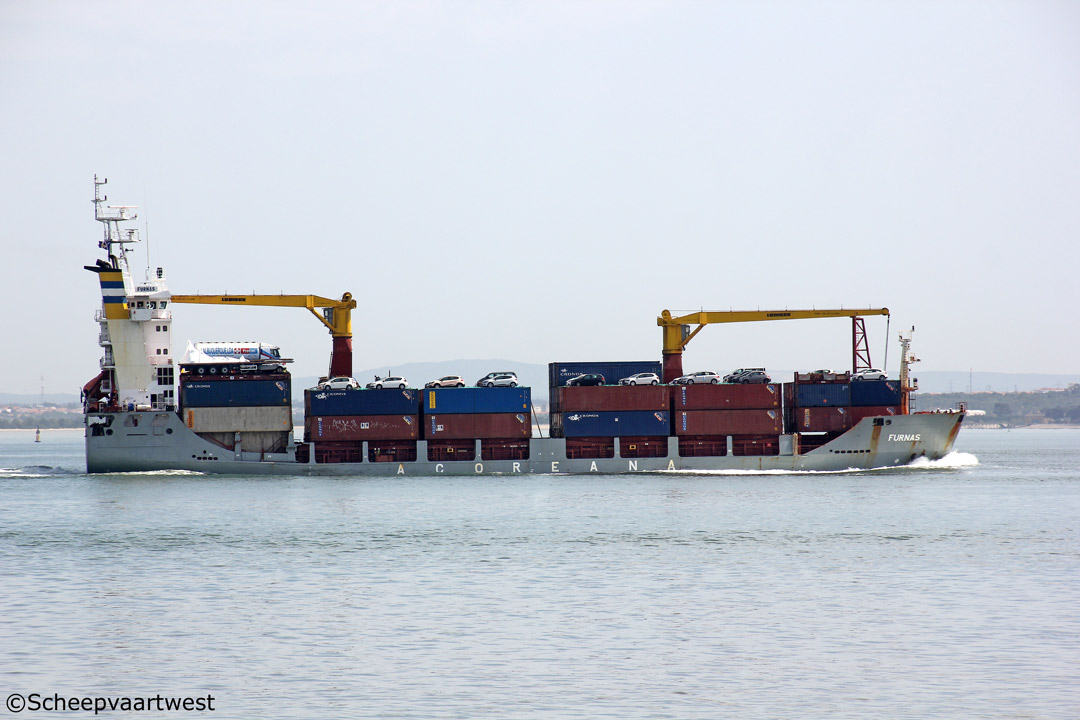

| Ponta Delgada 08/06/15 | Lisboa, Portugal 17/06/17 | Lisboa, Portugal 17/06/17 | Lisboa, Portugal 17/06/17 | |||
|
Name |
FURNAS |
|
Previous names |
|
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9164548 |
|
Call sign |
CSBK |
|
Flag |
Portugal |
|
Port of registry |
Ponta Delgada - Azores |
|
GT |
4.450 |
|
DWT |
Summer: 5.555 t |
|
NT |
2.141 |
|
Displacement |
8.567 t |
|
Number of 20ft containers |
505 |
|
Container capacity 14t |
275 |
|
Reefer capacity |
78 |
|
Length |
100,58 m overall 95,90 m registered |
|
Breadth |
18,80 m registered |
|
Draught |
6,65 m |
|
Forecastle |
9,62 m |
|
Poop |
7,20 m |
|
Depth |
8,40 m moulded |
|
Speed |
15,5 knots |
|
Built |
1999 |
|
Keel laid |
15/05/1997 |
|
Launch date |
18/06/1998 |
|
Date of completion |
06/1999 |
|
Builder |
China Changjiang National Shipping Group Yichang Shipyard Xiba, Yichang City People's Republic of China |
|
Yard number |
96006 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engine 3.960 kW / 5.380 hp at 750 rpm Year of manufacture: 1997 Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 168 rpm |
|
Boilers |
1x Steam boiler, oil fired - 12,0 bar Heating surface: 34,6 m² 1x Steam boiler, exhaust gas heated - 12,0 bar Heating surface: 117,0 m² Year of manufacture: 1997 Manufacturer: Wiesloch Marine & Industries B.V. Ohmweg 8 3208 KE Spijkenisse The Netherlands |
|
Electric installations |
2x Plants each 440/220 V - 712 kVA 1x Plant 440 V - 875 kVA 1x Plant 440 V - 156 kVA |
|
Shaft generator |
1x 875 kVA |
|
Generators |
2x Main diesel generatorsets each 712 kVA |
|
Emergency generator |
1x Diesel generatorset 156 kVA |
|
Compressed air receivers |
2x Receivers each 700 litres - 30,0 bar 1x Receiver 160 litres - 10,0 bar 1x Receiver 100 litres - 10,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Schottel - 500 kW, forward |
|
Number of holds |
3 |
|
Hold capacity |
Grain: 7.177 m³ |
|
Tank capacities |
Fuel oil: 598 m³ Ballast water: 2.138 m³ |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Cargo gear |
2x Liebherr cranes - SWL 40,0 t each |
|
Crew |
13 |
|
ISM & commercial manager |
Açoreana Maritimos Largo Vasco Bensaude, 13 9500-103 Ponta Delgada S. Miguel Açores |
|
Owner |
Novo Banco SA Avenida da Liberdade, 195 1250-142 Lisboa Portugal |
|
Latest data adjustment |
19 August 2026 |
