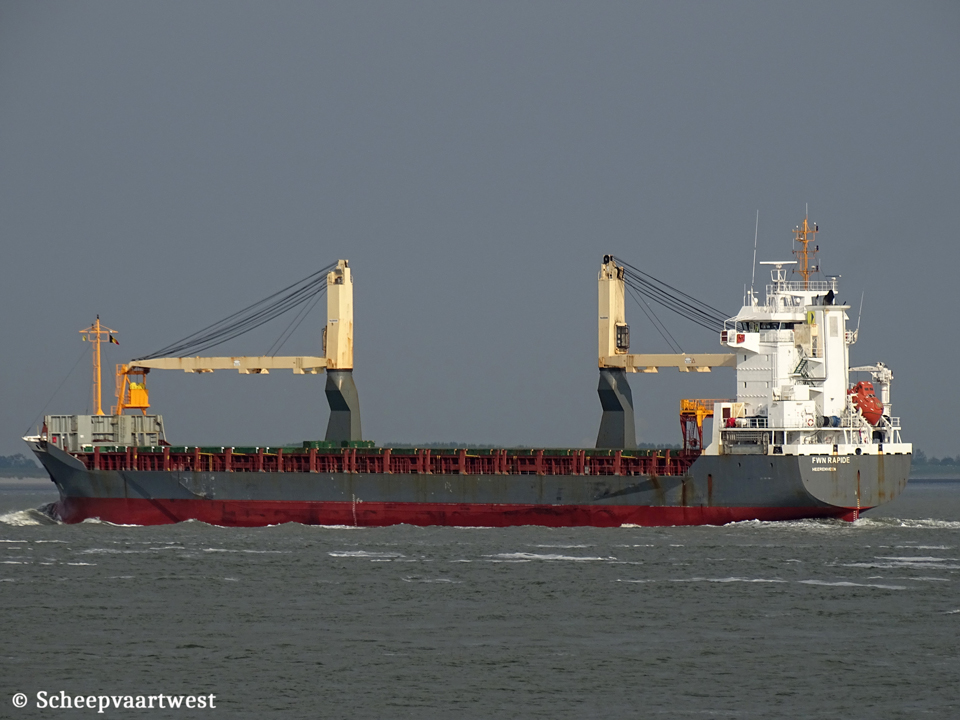

FWN Rapide IMO 9320520 01
Westerschelde 17 May 2016


Name

FWN RAPIDE

Previous names

08/2005 - 10/2006 Emily-C

10/2006 - 12/2014 UAL America

12/2014 - 06/2015 Emily-C

Type

Multi-purpose geared tweendecker, strengthened for heavy cargoes, equipped for carriage of containers

Damen Combifreighter 10500 G

IMO-number

9320520

Call sign

PBMT

Flag

The Netherlands

Port of registry

Heereveen

Previous flags

2005 - 2014 Isle of Man, Douglas - Call sign: MHUN3

2014 - 2015 Isle of Wight, Cowes - Call sign: MHUN3

GT

7.767 t

DWT

10.609 t

NT

3.856 t

Number of 20ft containers

On deck: 363

in hold: 302

Total: 665

Reefer plug

60 on deck only

Length

145,63 m overall

138,82 m between perpendiculars

Breadth

18,25 m

Draught

Summer: 7,35 m

Air draft

36,40 m in ballast

Depth

10,30 m moulded

Speed

Max: 15,5 knots

Service: 13,0 knots

Build

2005

Keel laid

28/05/2004

Delivery date

25/08/2004

Builder casco

Damen Shipyards Yichang Company Ltd.

Yichang

China

Builder completion

B.V. Damen Scheepswerf

Hoogezand, Foxhol

The Netherlands

Yard number

841

Hull material

Steel - High resistance and ordinary

Movable bulkheads

8

Main engine

1x MaK 9M32C - 4 stoke single acting 9 cylinder combustion engine 4.320 kW / 5.830 hp at 600 rpm

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H. & Co. K.G., Anqing - China

Propellers

1x Controllable pitch propeller

Shaft generator

1x 680 kW

Generators

3x Main diesel generatorsets each 780 kW

Bow thruster

1x 400 kW / 544 hp

Number of holds

2x Boxshaped

Hold 1: 38,95 x 13,15 x 11,05 m (29,52 m without narrowing)

Hold 2: 65,41 x 13,15 x 11,05 m (61,20 m without narrowing)

Cargo hold capacity

Grain: 14.878 m³ / 525.412 ft³

Hold ventilation

10x Air changes per hour

Humber of hatches

2x Open hatch

Hatch 1: 38,95 x 13,15 m

Hatch 2: 65,41 x 13,15 m

Hatch cover type

Pontoon, 17 pcs

Tweendeck

Tweendeck: complete twd (except narrowing in hold 1)

Panels LxBxH: 5,45 x 13,15 x 0,66 m (17 panels)

Height under td/above td: 5,25 m / 5,14 m

Capacity area

Tanktop: 1.327 m²

Tweendeck: 1.218 m²

Deck: 1.408 m³

Total: 3.953 m²

Max permitted loads

Tanktop: 18,0 t/m²

Tweendeck: 3,50 t/m²

Hatchcover: 1,75 t/m²

Tank capacities

HFO; 425 m³

MGO:212 m³

Fresh water: 46 m³

Ballast water: 4.888 m³

Cargo gear

2x Deck cranes Starboard each 80,0 t -

Manager

ForestWave Navigation B.V.

Heerenveen

The Netherlands

Previous managers

08/2005 - 06/2015 Carisbrooke Shipping Ltd., Cowes, Isle of Wight - United Kingdom

Owner

FWN Rapide B.V.

Heerenveen

The Netherlands

Renamed

04/07/2024 Lady Luciana

Republic of Panama, Panama City - Call sign: 3E7712

Owner: Luciana Shipping Corporation, Istanbul - Turkey

Manager: GN Bulk Deniz Tasimaciligi Ltd Sti, Istanbul - Turkey

Previous names & owners

  • 08/2005 - 10/2006 Emily-C - Emily C UG Haftungsbeschrankt (Emily-C Shipping Company Ltd), Cowes, Isle of Wight - United Kingdom

  • 10/2006 - 12/2014 UAL America - Emily C UG Haftungsbeschrankt (Emily-C Shipping Company Ltd), Cowes, Isle of Wight - United Kingdom

  • 12/2014 -06/2015 Emily-C - Emily C UG Haftungsbeschrankt (Emily-C Shipping Company Ltd), Cowes, Isle of Wight - United Kingdom

Latest data adjustment

26 October 2024
