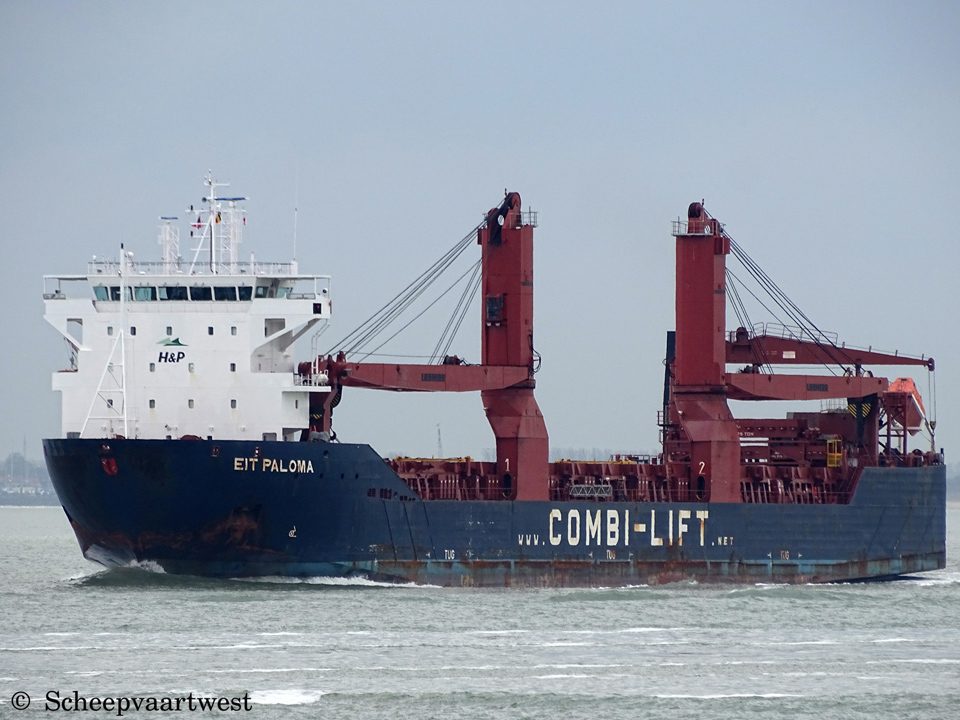

Eit Paloma 02

Westerschelde 01 April 2017

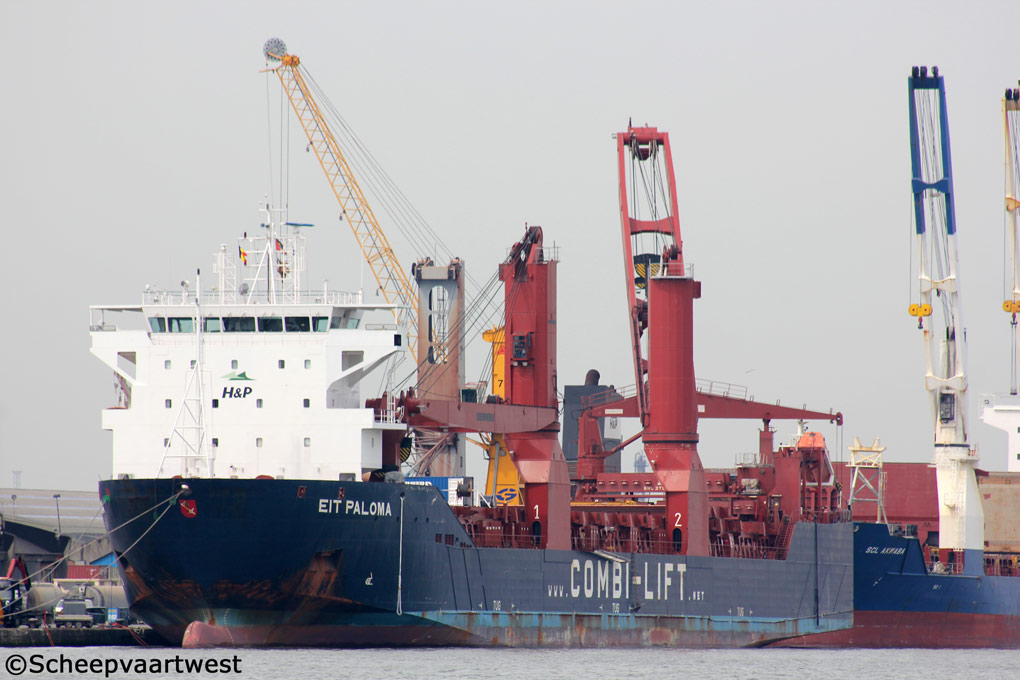

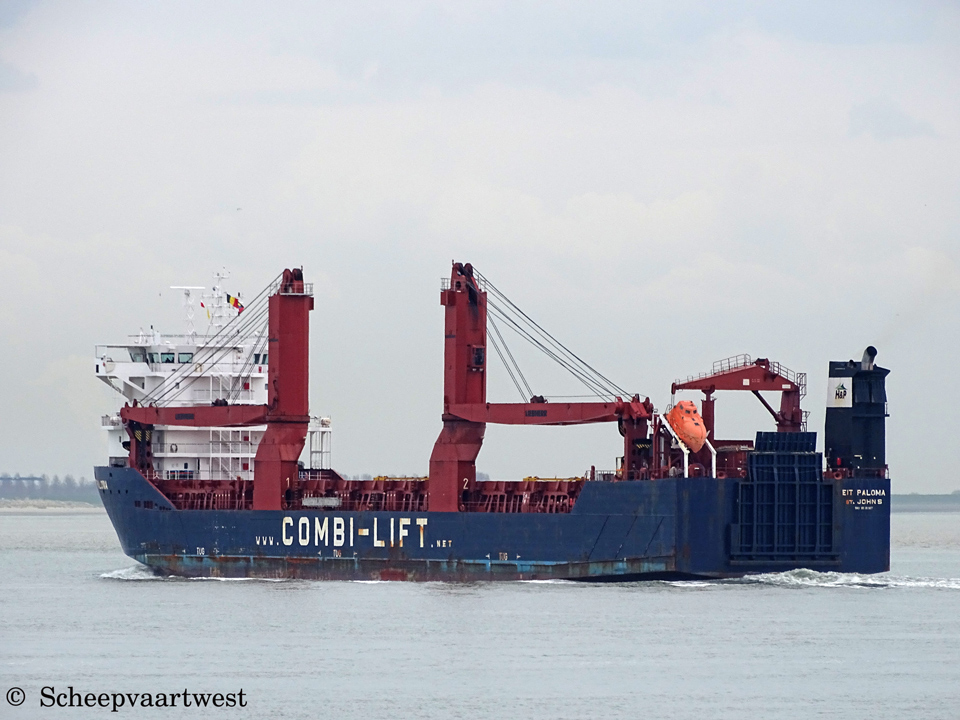

Eit Paloma 03   Eit Paloma 01
Westerschelde 01/04/17 Antwerpen 26/06/15



Name

EIT PALOMA

Previous names

2010 - 08/2011 Scan Espana

Type

Multi-purpose dry cargo ship - Equipped for carriage of cars - Equipped for carriage of containers - Strengthened for heavy cargo

Heavy lift carrier

IMO-number

9538907

Call sign

V2QI2

Flag

Antigua & Barbuda

Port of registry

St. John's

Previous flag

2010 - 2011 United Kingdom

GT

12.679 t

DWT

Summer: 9.490 t

NT

3.804 t

Number of 20ft containers

On deck: 447

In hold: 324

Total: 771

Container capacity 14t

542

Reefer plugs

30

Length

142,52 m overall

134,28 m registered

Breadth

23,20 m registered

Draught

Max.: 7,20 m

Depth

12,80 m moulded

Speed

Service: 15,0 knots

Max.: 17,0 knots

Built

2010

Keel laid

16/06/2009

Launch date

20/02/2010

Date of completion

31/05/2010

Builder

P + S Werften GmbH
Schiffbauerdamm 1
17438 Wolgast
Federal Republic of Germany

Yard number

252

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN B&W 16V32/40 - 4 stroke 16 cylinder 320 x 400mm diesel engine - 8.000 kW at 750 rpm

Year of manufacture: 2009

Manufacturer: STX Engine Co., Ltd.
36, Gongdanro 474-gil Sungsan-gu
Changwon
Republic of Korea

Propellers

1x Controllable pitch propeller - aft at 145 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 34,4 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 118,8 m²

Year of manufacture: 2009

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plants each 450 V -1.000 kVA

1x Plant 450 V - 1.875 kVA

1x Plant 450 V - 413 kVA

2x Plants each 24 V - 7 Ah

2x Plants each 24 V - 120 Ah

4x Plants each 24 V - 170 Ah

4x Plants each 24 V - 200 Ah

Shaft generator

1x 1.875 kVA

Generators

2x Main diesel generatorsets each 800 kVA

Emergency generator

1x Diesel generatorset 330 kVA

Batteries

4x Batteries for automation each 200 Ah

4x Batteries for UPS radio each 170 Ah

2x Batteries for start emergency engine each 120 Ah

2x Batteries for diesel control each 7 Ah

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 350 litres - 11,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

Number of hold

2

Lower hold:

Hold 1: 18,75 x 13,32 m

Hold 2: 52,50 x 18,70 m

Tweendeck:

Hold 1: 17,21 x 18,70 m

Hold 2: 77,25 x 18,70 m

Garage: 18,10 x 10,00 x 6,20 m

Total hold capacity

Hold 1:3.368 m³

Hold 2: 16.605 m³

Total: 19.973 m³

Hatches

Weatherdeck:

Hatch 1: 18,75 x 18,70 m

Hatch 2: 77,25 x 18,70 m

Tweendeck:

Hatch 1: 17,50 x 18,70 m

Hatch 2: 52,44 x 18,70 m

Tweendeck

Adjustable 3 positions

Stern ramp

Opening: 10,00 m x 6,25m

Length: 13,50 m

Capacity: 350 t

Max. permitted loads

Tanktop: 15,0 t/m²

Tweendeck: 1,70 t/m²

Hatchcover: 1,75 t/h

Tank capacities

IFO: 1.271,90 m³ / 1.233,7 t

MGO: 168,50 m³ / 146,60 t

Anchor equipment

3x Anchors weight each 5.610 kg

Chain length: 577,50 m

Cargo gear

2x Liebherr cranes - each SWL 350,00 / 190,00 / 45,00 t

Combinable SWL: 700 t

Crew size

25

Manager

Harren & Partner Ship Management Pte. Ltd.
120 Lower Delta Road #10-10 Cendex Centre
Singapore
Republic of Singapore

Registered owner

EIT European Investment & Trading Ltd.
Clifton House 75 Fort Street
KY1-1108 Grand Cayman
Cayman Islands

Sister ships

Eit Palmina

Renamed

2018 SLNC Yark, Annapolis MD - USA - Call sign: WNCG

Owner: HS Yaro, LLC

Manager: Schuyler line Navigation Company, LLC

Latest data adjustment

07 January 2019
