Antwerpen 26 October 2015 |
|
Name |

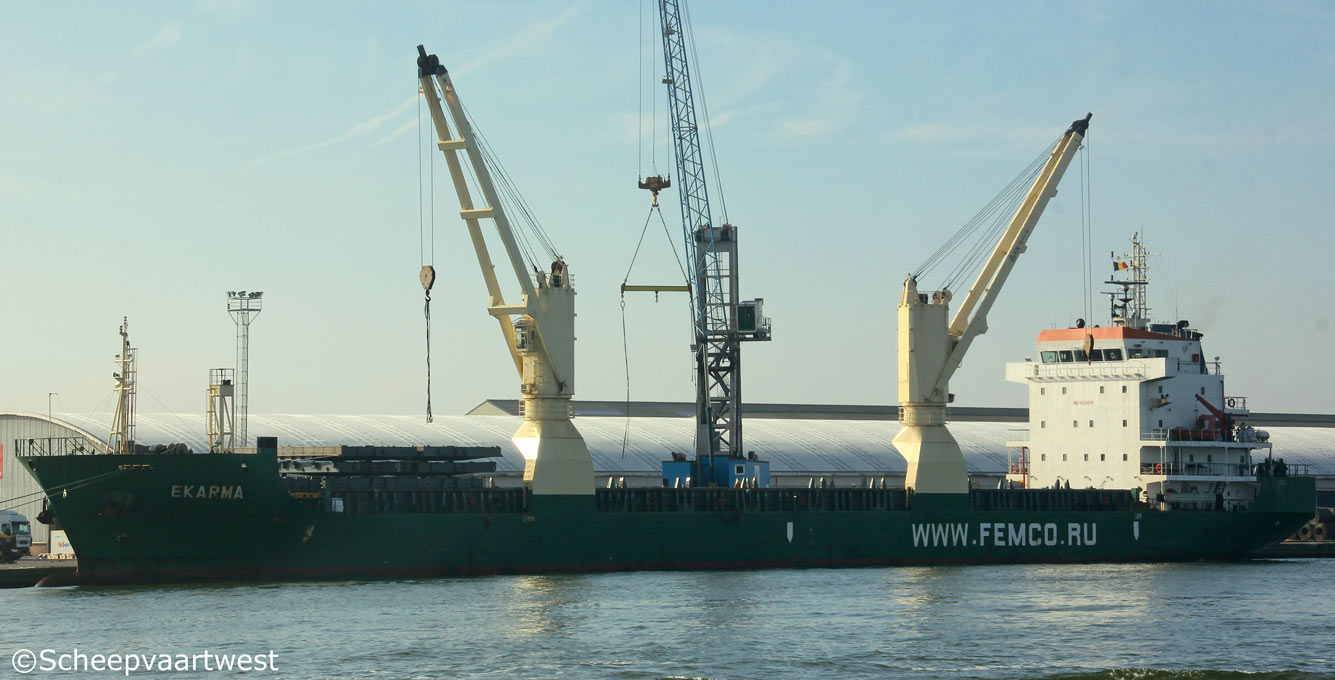

EKARMA |
|
Previous names |
2011 - 11.1012 Chun He |
|
Type |
Multi-purpose for carriage of general cargo - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9630016 |
|
Call sign |
D5HW8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
6.601 t |
|
DWT |
Summer: 8.232 t |
|
NT |
2.763 t |
|
Lightship |
3.236,7 t |
|
Number of 20ft containers |
In hold: 232 On deck: 156 Total:388 |
|
Container capacity 10t |
In hold: 232 On deck: 144 Total: 376 |
|
Container capacity 14t |
In hold: 232 On deck:74 Total: 306 |
|
Reefer plugs |
24 |
|
Length |
116,23 m overall 110,00 m between perpendiculars |
|
Breadth |
18,00 m moulded |
|
Draught |
7,00 m |
|
Freeboard |
Min.: 3.414 mm |
|
Depth |
10,40 m moulded |
|
Speed |
Max.: 11,5 knots Cruising: 10,5 knots Economical: 9,0 knots |
|
Built |
2011 |
|
Date of completion |
15.11.2011 |
|
Builder |
Zhejiang Tianshi Shipbuilding Co., Ltd. |
|
Yard number |
TS050 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Daihatsu 8DKM-28 - 4 stroke 8 cylinder 280 x 390 mm diesel engine 2.500 kW / 3.397 hp at 750 rpm Built: 15.07.2010 Builder: Shaanxi Diesel Engine Heavy Industry Co. Ltd., Shaanxi - China |
|
Propellers |
1x Screw propeller solid - aft at 125 rpm |
|
Boilers |
1x CHM 114,00 m² - 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 324 kVA - 259 kW - 386 hp |
|
Emergency generator |
1x Diesel generatorset 101 kVA - 81 kW - 156 hp |
|
Number of holds |
2 1x Twin deck 1x Single deck |
|
Hold dimensions |
Hold 1: Without twin deck , narrowed in forepart 16,80 x 15,00 x 10,30 m - Volume: 2.211 m³ Hold 2: Boxlike with Twin Deck, narrowed in aftpart 56,70 x 15,00 x 10,30 m; Volume: 8.742 m³ |
|
Total capacity of holds |
Bale: 10.576 m³ Grain: 10.953 m³ |
|
Max. permitted loads |
Deck: 18 t/m² |
|
Tank capacities |
Fuel oil: 398,6 m³ Marine gas oil: 216,7 m³ Fresh water: 248 m³ Water ballast: 3.728 m³ Lub oil: 20,2 m³ |
|
Anchor windlass |
2x Windlass mooring winch each: Weight: 3.540 t Length: 522,50 mm Diameter: 46 mm |
|
Cargo gear |
2x Deck crane - SWL 40,0 t each |
|
Accommodation |
Cabins: 14x 1 man 3x 2 man 1x Pilot Total bunks: 21 Hospital: 1 bunk |
|
Manager |
Femco West Saint-Petersburg |
|
Owner |
Volcano Shipping |
|
Registered owner |
RS Bulk Limited |
|
Latest data adjustment |
03 December 2015 |
