Westerschelde 10 July 2018 |
 |
 |
|
| Westerschelde 24/09/15 | Malaga - Spian 11/03/18 | |
|
Name |

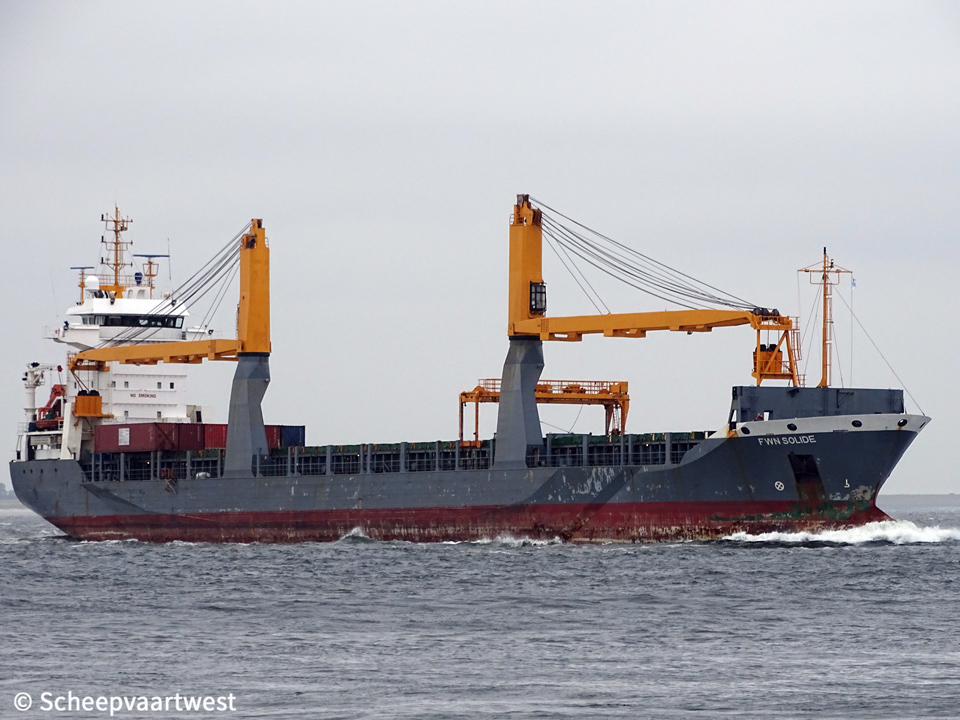

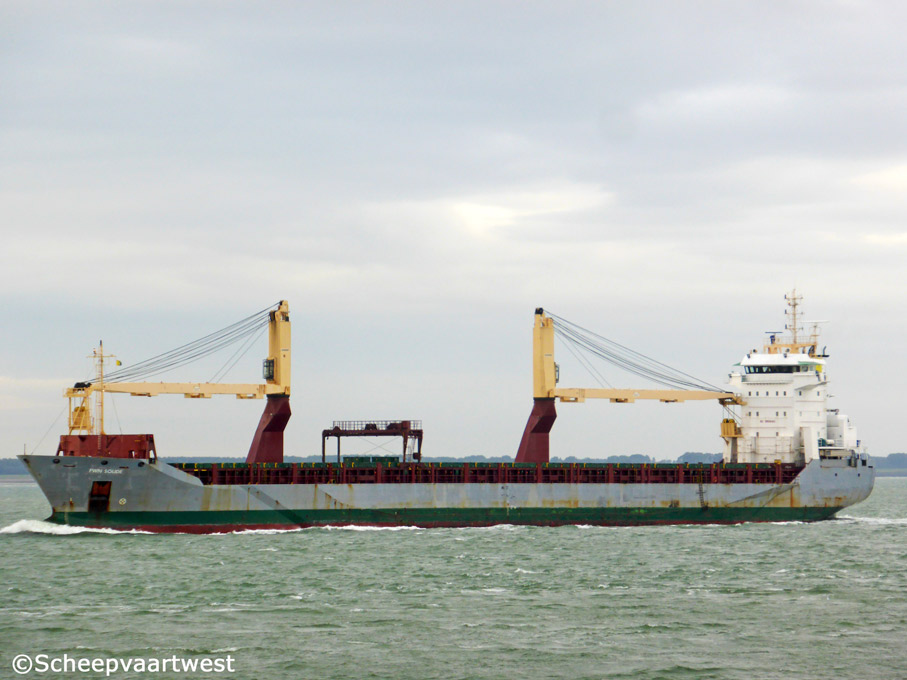

FWN SOLIDE |
|
Previous names |
|
|
Type |
General cargo ship - Geared box tweendecker - Container cargoes in holds and on hatchcovers - Equipped for dangerous goods |
|
Basic functions |
Transport of bulk, steel coils, containers, forest products, general cargo |
|
IMO-number |
9321093 |
|
Call sign |
PBOJ |
|
Flag |
The Netherlands |
|
Port of registry |
Heerenveen |
|
Previous flags |
03/2006 - 06/2015 Great Britain, Douglas (Isle of Man) - Call sign: MKVS6 |
|
GT |
7.752 Suez: 8.016,82 |
|
DWT |
Summer: 11.541,07 t Winter: 11.166,29 t |
|
NT |
3.856 Panama: 6.919 Suez: 7.143,48 |
|
Displacement |
Summer: 15..654,39 Winter: 15.279,61 t |
|
Lightship |
4.257,31 t |
|
Number of 20ft containers |
Hold: 302 On deck: 371 Total: 673 |
|
Container capacity 14t |
512 |
|
Length |
145,63 m overall 139,38 m between perpendiculars |
|
Breadth |
18,25 m |
|
Draught |
Summer: 7,69 m Winter: 7,54 m |
|
Air draft |
32,40 m in ballast |
|
Depth |
10,30 m |
|
Speed |
Service: 13,0 knots |
|
Built |
2006 |
|
Delivery date |
14/03/2006 |
|
Builder casco |
Damen Shipyards Yichang Yichang China |
|
Builder completion |
Damen Shipyard Hoogezand Hoogezand The Netherlands |
|
Yard number |
842 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x Grain bulkhead (existing of 2 pieces), with eight store positions in No.1 hold , or nine stow positions in hold 2. |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32- 4 stroke single acting 9 cylinder combustion engine 4.320 kW / 5.873 hp at 600 rpm |
|
Propellers |
1 |
|
Generators |
3x Caterpillar 3046C main diesel generatorsets each 260 kW |
|
Bow thruster |
400 kW / 544 hp |
|
Number of holds |
2 Hold 1: 38,95 x 13,15 x 11,05 m - ventilation: 15 air-changes/hour Hold 2: 65,41 x 13,15 x 11,05 m - ventilation: 12 air-changes/hour |
|
Cargo hold capacity |
Hold 1: 5.409,00 m³ - 191.017,00 ft³ Hold 2: 8.246,62 m³ - 294.758,20 ft³ Total: 13,755,62 m³ - 185.775,20 ft³ |
|
Number of hatches |
Hatch 1: 38,95 x 13,15 m Hatch 2: 65,41 x 13,15 m |
|
Deck area |
Tanktop: 1.327 m² Deck: 1.408 m² Tweendeck: 1.217 m² Total: 3.953 m² |
|
Max. Permitted loads |
Tanktop: 18,0 t/m² Tweendeck: 3,5 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Heavy fuel oil: 327 m³ Gas oil: 60 m³ Ballast water: 4.888 m³ |
|
Cargo gear |
2x Starboard side Liebherr cargo cranes - SWL 80,0 t each |
|
Manager |
Forest Wave Navigation B.V. Abe Lenstra Boulevard 62 8448 JB Heerenveen The Netherlands |
|
Previous managers |
|
|
Owner |
FWN Solide B.V. Heerenveen The Netherlands |
|
Previous owners |
|
|
Renamed |
07/2025 Lady Viotetta Republic of Panama, Panama City - Call sign: 3E8436
|
|
Latest data adjustment |
19 August 2026 |
