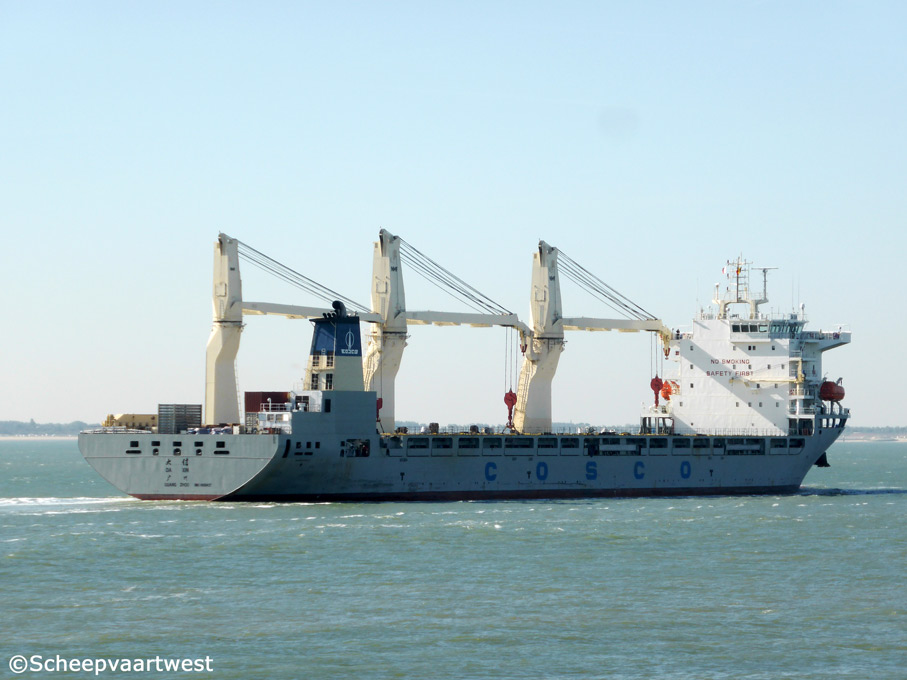

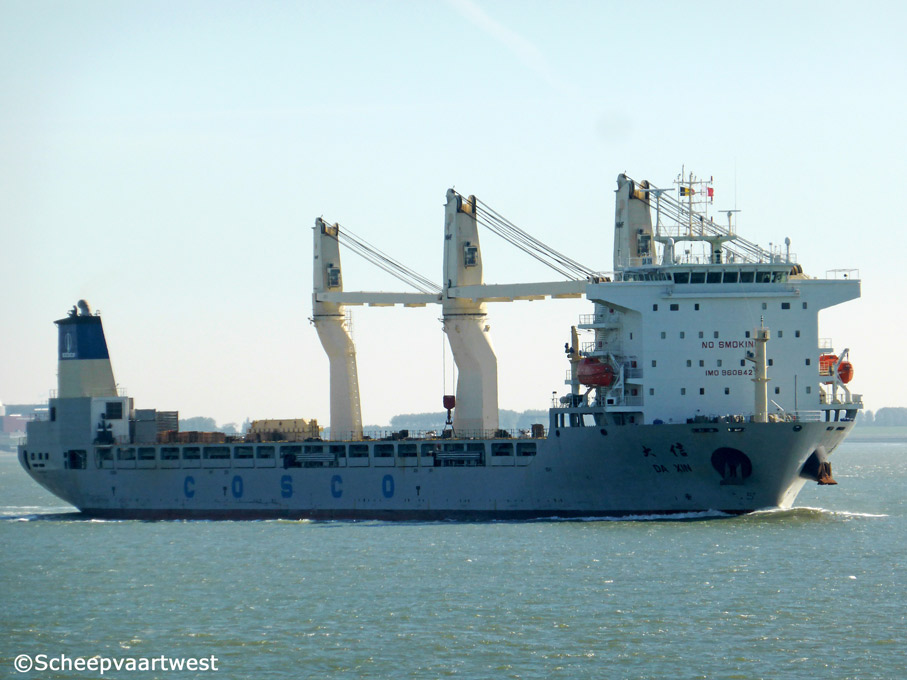

Westerschelde 29 September 2015 |
 |
 |
|

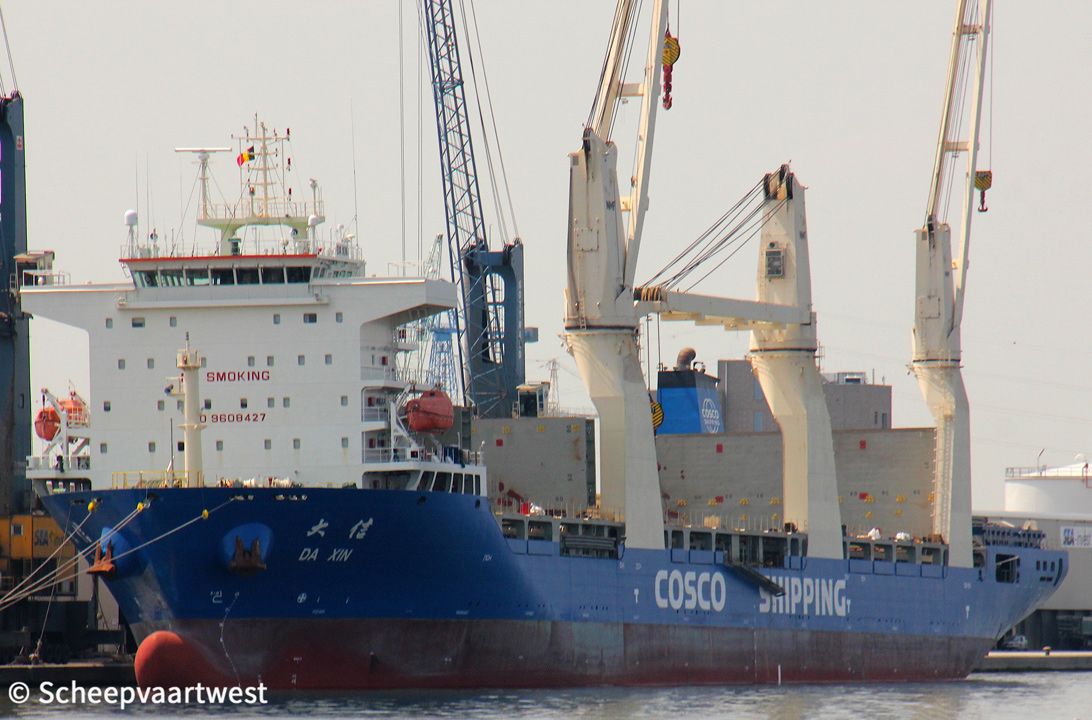

| Weserschelde 29/09/15 | Antwerpen 17/07/19 |
|
Name |
DA XIN |
|
Type |
General dry cargo ship - Equipped with container securing arrangements |
|
IMO-number |
9608427 |
|
Call sign |
BOFD |
|
Flag |
China |
|
Port of registry |
Guangzhou |
|
GT |
21.828 t |
|
DWT |
29.565,2 t |
|
NT |
9.495 t |
|
Number of 20ft containers |
1.035 |
|
Number of 40ft containers |
490 |
|
Length |
179,57 m overall 170,00 m between perpendiculars |
|
Breadth |
28,00 m moulded |
|
Draught |
9,20 m |
|
Forecastle |
14,39 m |
|
Deck house |
15,90 m |
|
Depth |
14,80 m moulded |
|
Freeboard |
4.332 mm |
|
Speed |
15,2 knots |
|
Built |
2014 |
|
Date of completion |
25/06/2014 |
|
Builder |
Shanghai Shipyard Co., Ltd. |
|
Yard number |
21828 |
|
Hull material |
Steel |
|
Bulkheads |
14 |
|
Number of decks |
2 Upper Deck Tween Deck |
|
Main engine |
1x MAN-B&W 6S50ME-C8.1 - 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW at 127,0 rpm Built: 27.02.2014 Builder: Hu Dong Heavy Machinery Co.,Ltd. |
|
Propellers |
1 |
|
Boilers |
2 1x 320 m³ - 7,0 bar 1x 30 m³ - 7,0 bar Built: 27/02/2014 Builder: Zhangjiagang Greens-shazhou Boiler Co.,Ltd. |
|
Generators |
3x Main diesel generatorsets each 700 kVA - 450 Volt |
|
Number of holds |
3 |
|
Total hold capacity |
Bale Hold 1: 8.477,60 m³ Hold 2: 18.189,80 m³ Hold: 3: 9.738,30 m³ 36.405,7 m³ |
|
Number of hatches |
3 Hatch 1: 23,20 x 30,00 m Hatch 2: 23,20 x 30,00 m Hatch 3: 32,20 x 54,00 m |
|
Tank capacity |
Ballast: 12.018 t |
|
Cargo gear |
1x Crane - SWL 100 t 2x Cranes - SWL 350 t each |
|
Manager |
COSCO Heavy Transport |
|
Operator |
COSCO Shipping Specialized Carriers Co., Ltd. |
|
Registered owner |
COSCO Shipping Specialized Carriers Co., Ltd. |
|
Latest data adjustment |
20 December 2019 |
