Antwerpen 26 January 2018 |
|
Name |

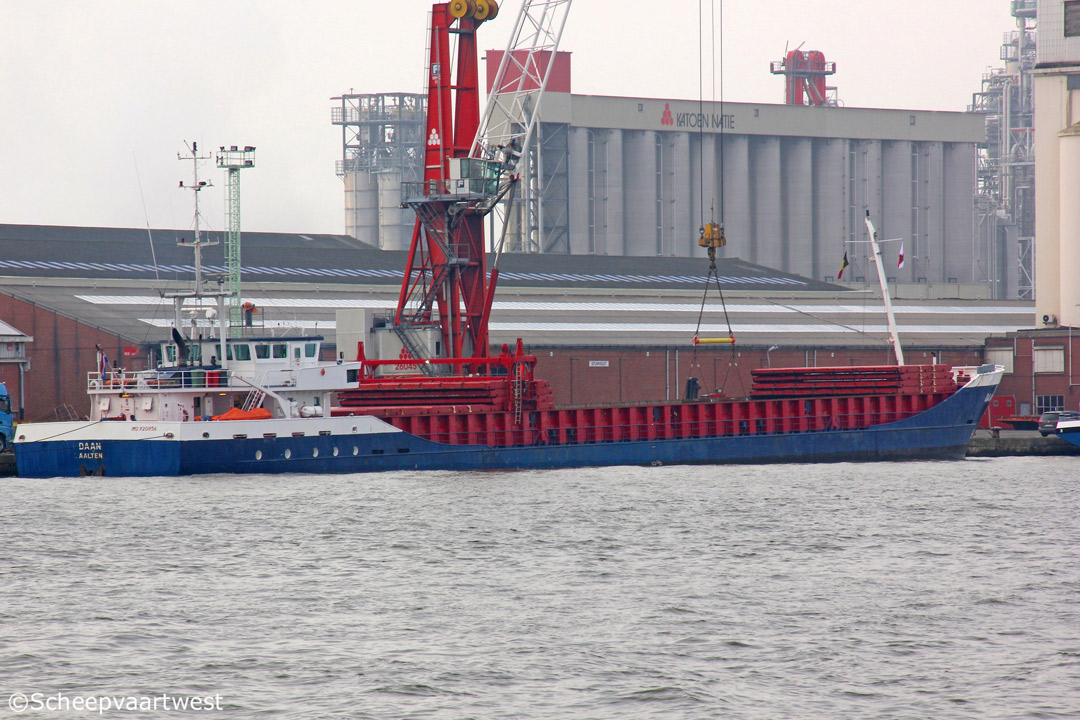

DAAN |
|
Previous names |
2001 - 04/2007 Anet 04/2007 - 02/2009 Morgan |
|
Type |
Multi-purpose cargo ship - Heavycargo - Container |
|
IMO-number |
9201956 |
|
Call sign |
PFBH |
|
Flag |
The Netherlands |
|
Port of registry |
Aalten |
|
Previous flags |
2001 - 2007 The Netherlands, Delfzijl - Call sign: PFBH 2007 - 2009 The Netherlands, Woudsend - Call sign: PFBH |
|
GT |
2.080 t |
|
DWT |
Summer: 2.800 t |
|
NT |
1.168 t |
|
Number of 20ft containers |
108 |
|
Length |
88,95 m overall 84,85 m between perpendiculars |
|
Breadth |
12,40 m moulded |
|
Draught |
Summer: 4,35 m Winter: 4,26 m |
|
Air draft |
9,30 m in ballast |
|
Freeboard |
1.020 mm |
|
Depth |
5,65 m moulded |
|
Speed |
10,5 knots |
|
Built |
2001 |
|
Launch date |
23/09/2001 |
|
Delivery date |
20/01/2002 |
|
Builder casco |
Ceskoslovenska Plavba Labska AS |
|
Builder completion |
Scheepswerf Peters B?V |
|
Yard number |
471 |
|
Hull material |
Steel |
|
Watertight compartment |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L20 - 4 stroke single acting 8 cylinder 200 x 280 mm diesel engine 1.320 kW / 1.792 hp at 1.000 rpm Built: 28/09/2000 Builder: Wärtsilä NSD Corporation, Vaasa - Finland |
|
Propellers |
1x Solid pitch propeller - aft at 241 rpm 4 blades - Diameter 2.300 mm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
2x Main diesel generatorsets each 112 kVA - 90 kW - 150 hp |
|
Emergency generator |
1x Diesel generatorset 77 kVA - 62 kW - 95 hp |
|
Bow thruster |
280 kW |
|
Number of cargo hold |
1 62,40 x 10,24 x 6,70 m |
|
Cargo hold capacity |
Grain: 3.877 m³ |
|
Number of hatches |
1 62,40 x 10,24 m |
|
Hatch type |
Pontoon |
|
Tank capacities |
MGO: 195 m³ Water ballast: 1.277 m³ Fresh water: 33 m³ |
|
Lifting equipment |
1x Gantry crane |
|
Manager |
Wagenborg Shipping B.V. |
|
Owner |
Wildenborg Scheepvaart B.V. |
|
Registered owner |
C.V. Scheepvaartonderneming Daan |
|
Previous names & owners |
2001 - 05/2006 Anet - C.V. Scheepvaartonderneming Anet, Delfzijl - The Netherlands 05/2006 - 03/2007 Anet - Aeolus Shipping, Nieuwegein - The Netherlands 03/2007 - 02/2009 Morgan - Morgan Shipping C.V., Woudsend - The Netherlands |
|
Latest data adjustment |
19 February 2018 |
