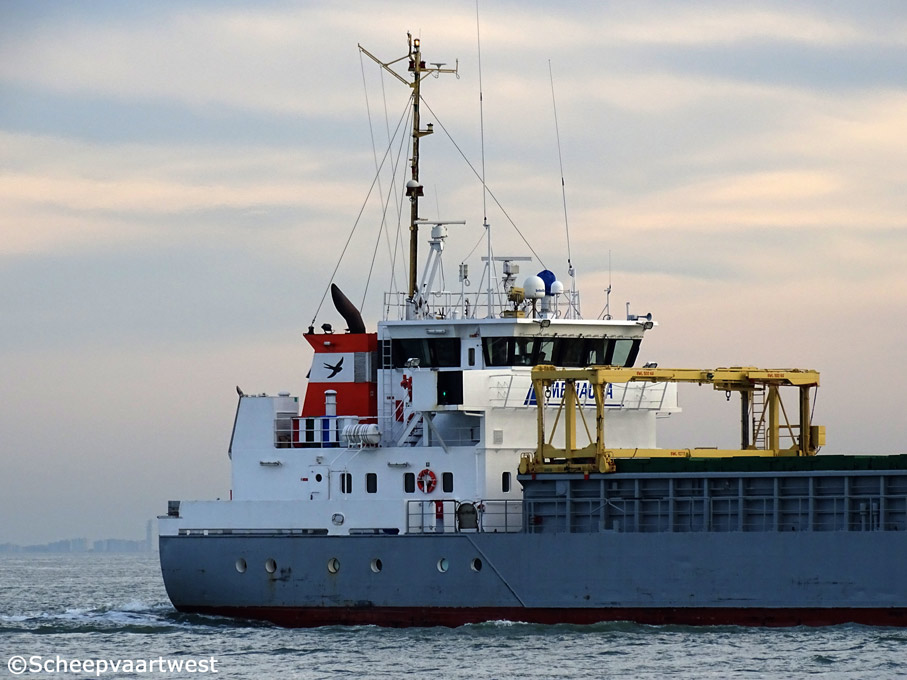

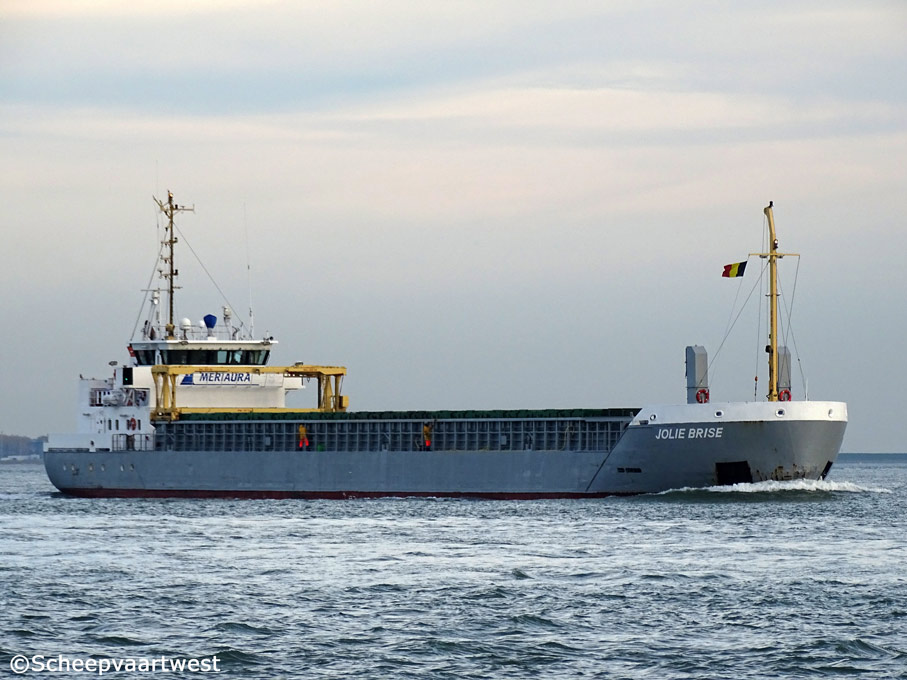

Westerschelde 30 October 2015 |
 |
| Westerschelde 30/10/15 |
|
Name |
JOLIE BRISE |
|
Previous names |
2006 - 02/2011 Flinterbrise 02/2011 - 01/2013 Jolie Brise 01/2013 - 07/2013 Fast Victor |
|
Type |
Multi-purpose cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9345362 |
|
Call sign |
PHCA |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
02/2006 - 02/2011 The Netherlands, Middelburg - Call sign: PHCA |
|
GT |
2.474 t |
|
DWT |
Summer: 3.475 t |
|
NT |
1.464 t |
|
Number of 20ft containers |
In hold: 102 On deck 34 Total: 136 |
|
Length |
82,50 m overall 79,54 m between perpendiculars |
|
Breadth |
12,60 m extreme 12,50 m moulded |
|
Draught |
Summer: 5,30 m |
|
Air draft |
12,00 m (collapsible fore and aft mast) 21,65 m in ballast |
|
Freeboard |
1.508 mm |
|
Depth |
6,80 m to main deck 8,00 m to upper deck |
|
Speed |
12,5 knots ballast 11,5 knots loaded |
|
Built |
2006 |
|
Keel laid |
29/12/2004 |
|
Date of completion |
09/02/2006 |
|
Builder Casco |
Marine Projects Ltd. Sp z oo Gdansk Poland |
|
Builder completion |
Bodewes Shipyards BV Hoogezand The Netherlands |
|
Yard number |
640 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Movable bulkhead |
2x In 7 possible positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion 1.850 kW / 2.514 hp at 750 rpm Builder: Caterpillar, Rostock - Germany Starter type: Compressed air Built: 2005 |
|
Gearbox |
1x Restia-Renk reduction gear |
|
Propellers |
1x Screw propeller controllable pitch - aft at 211 rpm Rolls Royce / Kamewa, 4-blades - diameter: 2.900 mm |
|
Shaft generator |
1x 230 kVA - 184 kW |
|
Generators |
1x Diesel generatorsets each 181 kVA - 145 kW - 236 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA |
|
Compressed air receivers |
2x Compressed air receivers - 30,0 bar each |
|
Bow thruster |
1x Veth Jet 220 KW at 1.800 rpm., forward Diameter propeller 890 mm |
|
Number of holds |
1x Boxshaped, steel floored 59,15 x 10,30/6,00 x 8,98 m (hold narrowing in the fore part) |
|
Total capacity of holds |
5.259 m³ / 185.733 ft³ incl. bulkheads |
|
Hold ventilation |
6x Air changes / hour |
|
Number of hatches |
1 59,15 x 10,30 m |
|
Hatch type |
10 x Pontoon type steel hatch covers |
|
Tween decks |
4x Movable turned bulkheads |
|
Max. permitted loads |
Deck load: 1,55 t/m² Tank top: 13,0 t/m² Tween deck: 1,8 t/m³ |
|
Tank capacities |
Fuel oil IFO: 277,24 m³ Marine diesel oil MGO: 34,22 m³ Fresh water: 26,59 m³ Ballast water: 1.494,94 m³ |
|
Anchor equipment |
2 Weight: 1.305 kg Length: 440,00 m |
|
Lifting equipment |
1x Gantry deck crane - SWL 12,7 t |
|
Manager |
Marin Ship Management B.V. Farmsum The Netherlands |
|
Previous managers |
02/2006 - 02/2011 Flinter Management B.V., Barendrecht - The Netherlands |
|
Operator |
Meriaura Ltd. Linnankatu 88 Turku Finland |
|
Owner |
C.V. Scheepvaartonderneming Flinterbrise, Groningen - The Netherlands |
|
Registered owner |
Flinterbrise BV |
|
Latest data adjustment |
25 October 2024 |
