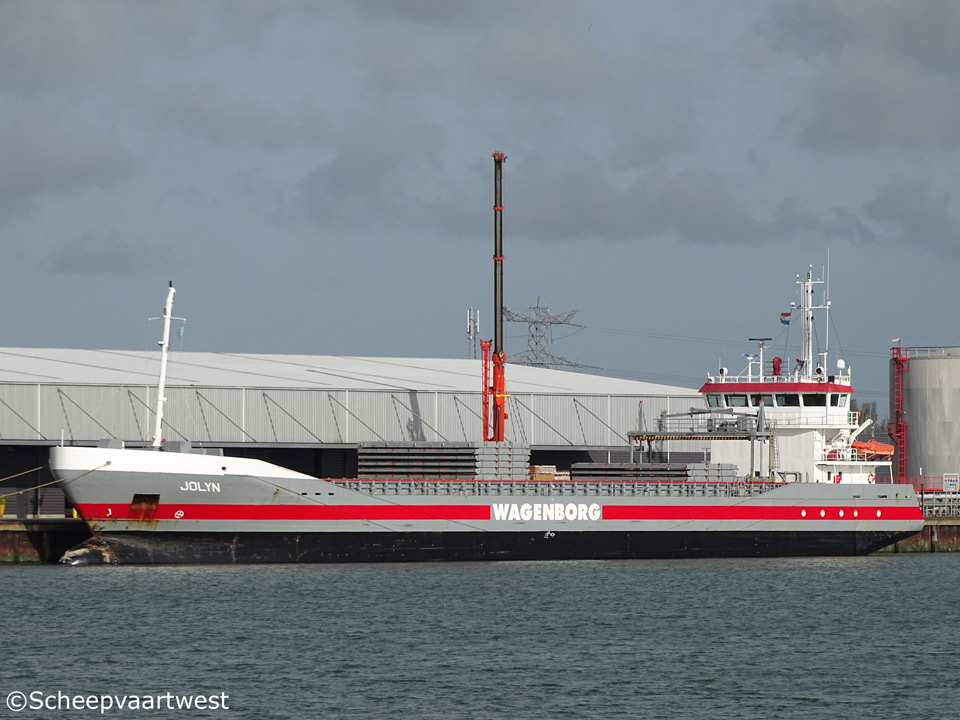

| Vlissingen 05 April 2017 |
 |

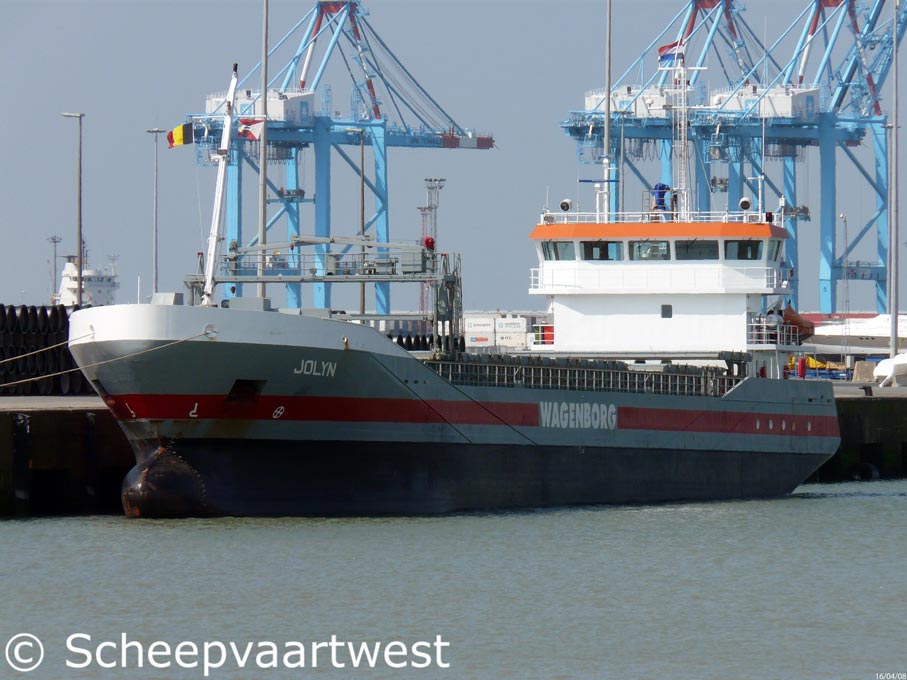

| Zeebrugge 16/04/08 |
|
Name |
JOLYN |
|
Type |
Multi-purpose dry cargo carrier - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9374686 |
|
Call sign |
PJWG |
|
Flag |
Curaçao |
|
Port of registry |
Willemstad |
|
Previous flag |
2007 - 2010 Netherlands Antilles, Willemstad - Call sign: PJWG |
|
GT |
2.528 t |
|
DWT |
Summer: 3.568 t |
|
DWCC |
Summer: 3.350 t |
|
NT |
1.053 t |
|
Number of 20ft containers |
157 |
|
Length |
89,99 m overall |
|
Breadth |
12,58 m overall |
|
Draught |
Summer: 5,31 m Winter: 2,20 m |
|
Air draft |
25,50 m in ballast |
|
Freeboard |
2.508 mm |
|
Depth |
8,00 m moulded |
|
Speed |
Service: 10,5 knots |
|
Built |
2007 |
|
Launch date |
04.11.2006 |
|
Date of completion |
11.01.2007 |
|
Builder |
Peters Shipyard B.V. |
|
Yard number |
1012 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Watertight compartments |
1 |
|
Main engine |
1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm diesel engine 1.800 kW / 2.446 hp at 1.000 rpm Built: 14.05.2006 Manufacturer: Wärtsilä Diesel Oy, Turku - Finland |
|
Number of screws |
1x Controllable pitch propeller - aft at 190 rpm |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Diesel generators |
1x Main diesel generatorset 210 kVA - 168 kW - 245 hp |
|
Emergency generator |
1x Diesel generatorset 77 kVA - 62 kW - 105 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 60,00 x 10,30 x 8,15 m |
|
Cargo capacity |
Bale/Grain: 174.063 ft³ - 4.927 m³ |
|
Number of hatches |
1 60,00 x 10,57 m |
|
Hatch type |
Pontoon |
|
Tank capacities |
MGO: 264 m³ Water ballast: 1.466 m³ Fresh water: 25 m³ |
|
Gear |
Gearless |
|
Manager |
Wagenborg Shipping |
|
Owner |
Roker Shipping N.V., Willemstad (Curaçao) - Curaçao (Corrib Ship Management Ltd., Curaçao / J. McEnvoy, Dublin) |
|
Previous owners |
01.2007 - 07.2010 Roker Shipping N.V., Willemstad (NA) - Netherlands Antilles |
|
Latest data adjustment |
08 August 2017 |
