Antwerpen 26 October 2015 |
 |
 |
 |
||
| Antwerpen 20/10/15 | Zeebrugge 08/07/17 | Westerschelde 31/07/17 | ||
|
Name |

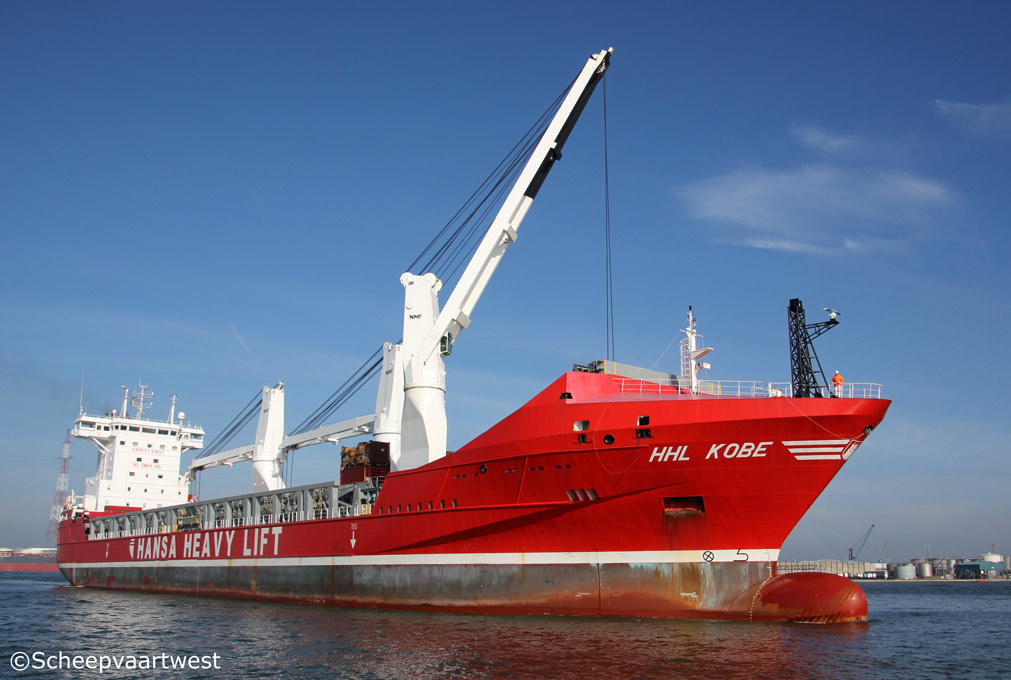

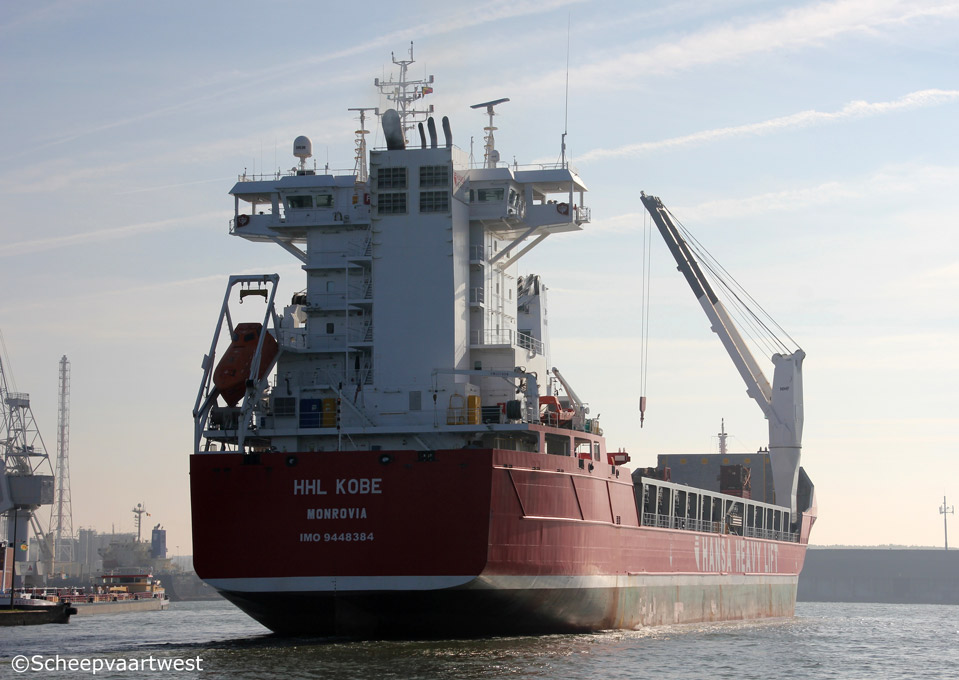

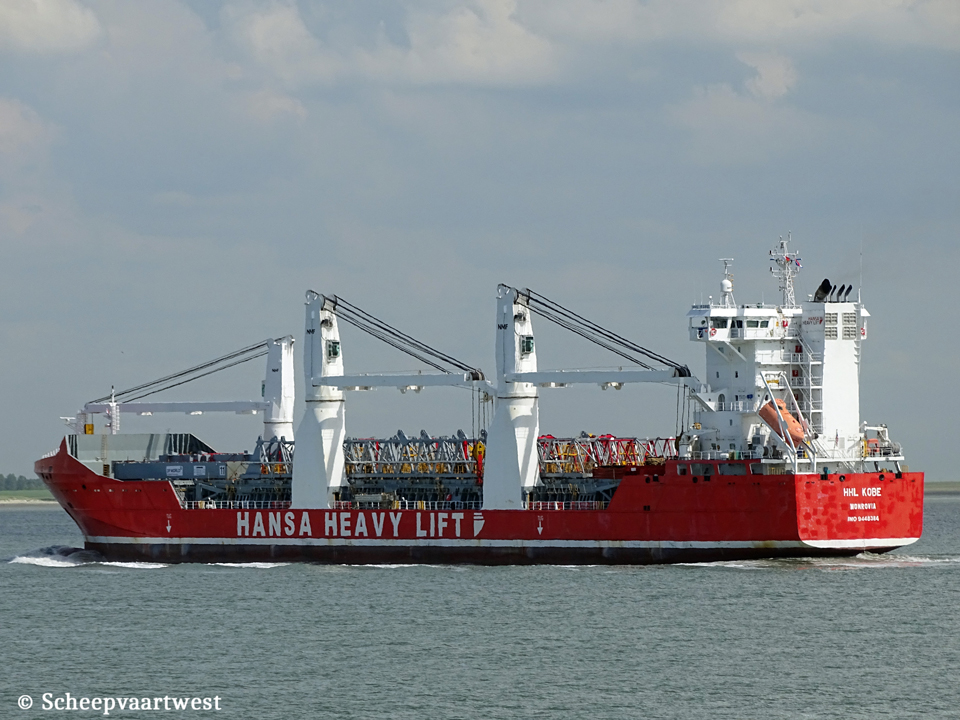

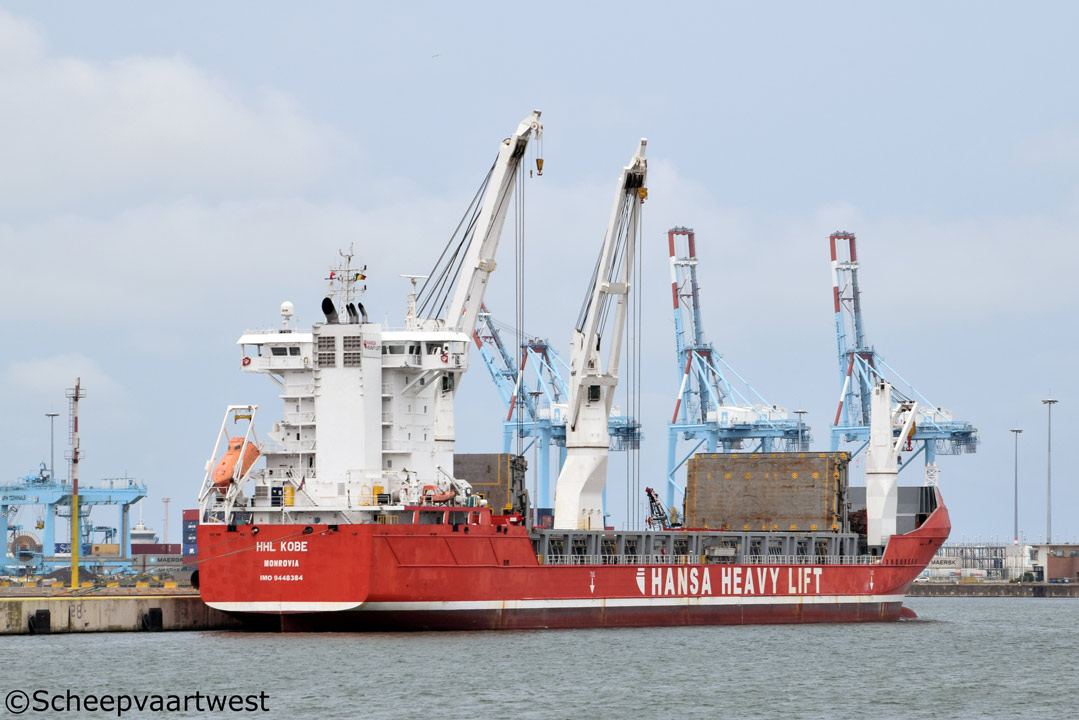

HHL KOBE |
|
Type |
Multi-purpose dry heavy lift vessel - Strengthened for heavy cargoes and grab fitted - Equipped for carriage of containers |
|
IMO-number |
9448384 |
|
Call sign |
D5FV7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
02/2012 - 01/2019 Antigua & Barbuda, St. John's |
|
GT |
17.634 |
|
DWT |
Summer: 19.863,6 t |
|
NT |
6.617 |
|
Number of 20ft containers |
On deck: 488 Under deck: 424 Total: 912 |
|
Reefer plugs |
100 |
|
Length |
168,68 m overall 155,79 m between perpendiculars |
|
Breadth |
25,43 m extreme 25,20 m moulded |
|
Draught |
Summer: 9,50 m |
|
Air draft |
45,15 m from keel |
|
Depth |
13,85 m moulded |
|
Speed |
Max.: 17,5 knots Economic: 14,0 knots |
|
Built |
2012 |
|
Keel laid |
28/12/2010 |
|
Launch date |
30/08/2011 |
|
Date of completion |
29/02/2012 |
|
Builder |
Hudong Zhonghua Shipbuilding Group Co., Ltd. Shanghai China |
|
Yard number |
H1535A |
|
Hull material |
Steel |
|
Number of decks |
2 |
|
Main engine |
1x MAN 7L28/64 - 7 cylinder combustion engine engine 9.800 kW / 13.328 bhp |
|
Propellers |
1x Controllable pitch propeller |
|
Rudder |
Balanced flap type |
|
Boilers |
1x Thermal oil heater, exhaust heated type EXV-6-45-25-57,0-1150DD 1x Thermal oil heater, oil fired type H4-0-TFO-012 |
|
Shaft generator |
1x 1.550 kW |
|
Generators |
3x Caterpillar C32 main diesel generatorsets each 994 kW |
|
Emergency generator |
1x Sisu 645 DSBIG diesel generatorset 200 kW |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
2x Double skinned, boxshaped / narrow stepwise in container dimensions Tween deck: Hold 1: 22,94 x 13,76 m Hold 2: 82,40 x 18,66 m Lower hold: Hold 1: 22,94 x 13,76 m / 9,56 m Hold 2: 82,40 x 18,66 m Subdivision of Hold 2 with 2 grain bulkheads in 7 possible positions |
|
Hold heights |
Tank top - Hatchcover: Hold 1: 14,25 m Hold 2: 14,83 m Tweendeck heights adjustable Hold 1: 2 different heights of tweendeck Hold 2: 4 different heights of tweendeck |
|
Hold capacity |
Hold 1: 4.275 m³ / 150.993 ft³ Hold 2: 22.060 m³ / 779.230 ft³ Total: 26.337 m³ / 930.223 ft³ |
|
Hold ventilation |
6x Fold air change per hour |
|
Number of hatches |
Hatch 1: 23,28 m (22,94 m opening) x 14,26 m (13,76 m opening) Hatch 2: 83,57 m (82,40 m opening) x 19,46 m (18,66 m opening) |
|
Type of hatch covers |
Hydraulic folding type, combinable w / pontoons |
|
Floorspace |
Lower hold: Hold 1: 281 m² Hold 2: 1.332 m² Tween deck: Hold 1: 281 m² Hold 2: 1.458 m² Weatherdeck: 2.220 m² |
|
Max. permitted loads |
Tank top: 18,0 t/m² Hatch covers: 5,0 t/m² Tween deck: 3,5 t/m² |
|
Tank capacities |
Ballast: 12.026,2 m³ Fresh water: 200 m³ HFO: 1.500 m³ MGO: 200 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Cargo gear |
2x Cranes NMF deck cranes - SWL 400 t each combinable up to SWL 800 t, portside 1x Cranes NMF - SWL 180 t, starboard |
|
Manager |
Liberty Blue Shipmanagement GmbH & Co. KG Leer Germany |
|
Previous manager |
02/2012 - 01/2019 Hansa Heavy Lift GmbH, Hamburg - Germany |
|
Operator |
Hansa Heavy Lift GmbH |
|
Registered owner |
Hansa Heavy Lift UG (haftungsbeschränkt) & Co. KG MS "HHL KOBE" Hamburg Germany |
|
Renamed |
03/2019 Pietersgracht The Netherlands, Amsterdam - Call sign: PCCX Owner: B.V. Firmanten Pietersgracht, Amsterdam - The Netherlands Manager: Spliethoff's Bevrachtingskantoor B.V., Amsterdam - The Netherlands 02/2002 Pietersgracht The Netherlands, Amsterdam - Call sign: PCCX Owner: Rederij Pietersgracht, Amsterdam - The Netherlands Manager: Spliethoff's Bevrachtingskantoor B.V., Amsterdam - The Netherlands |
|
Latest data adjustment |
16 November 2024 |
