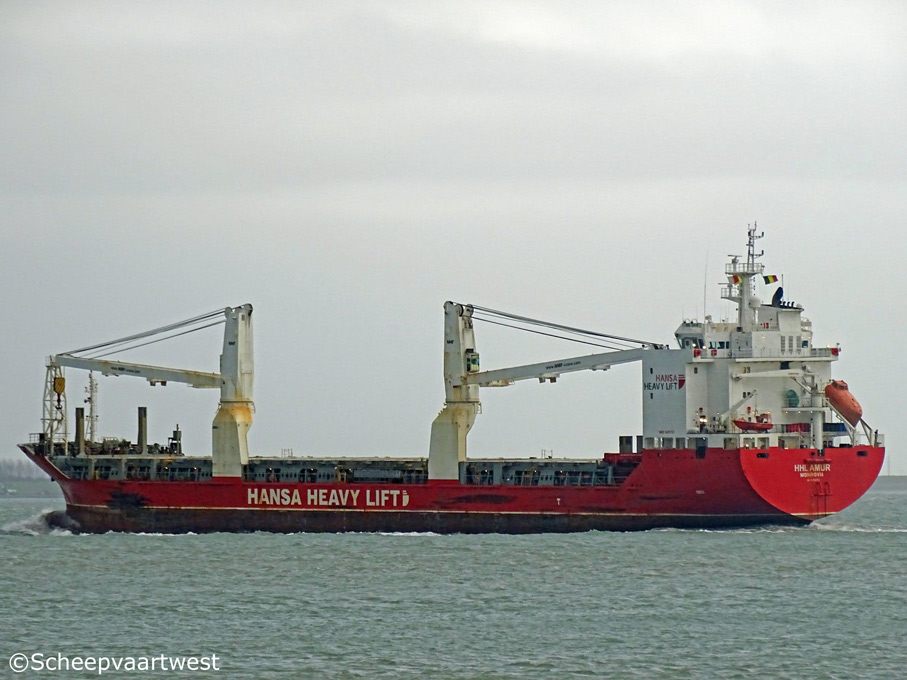

Westerschelde 25 November 2015 |
 |
 |
|

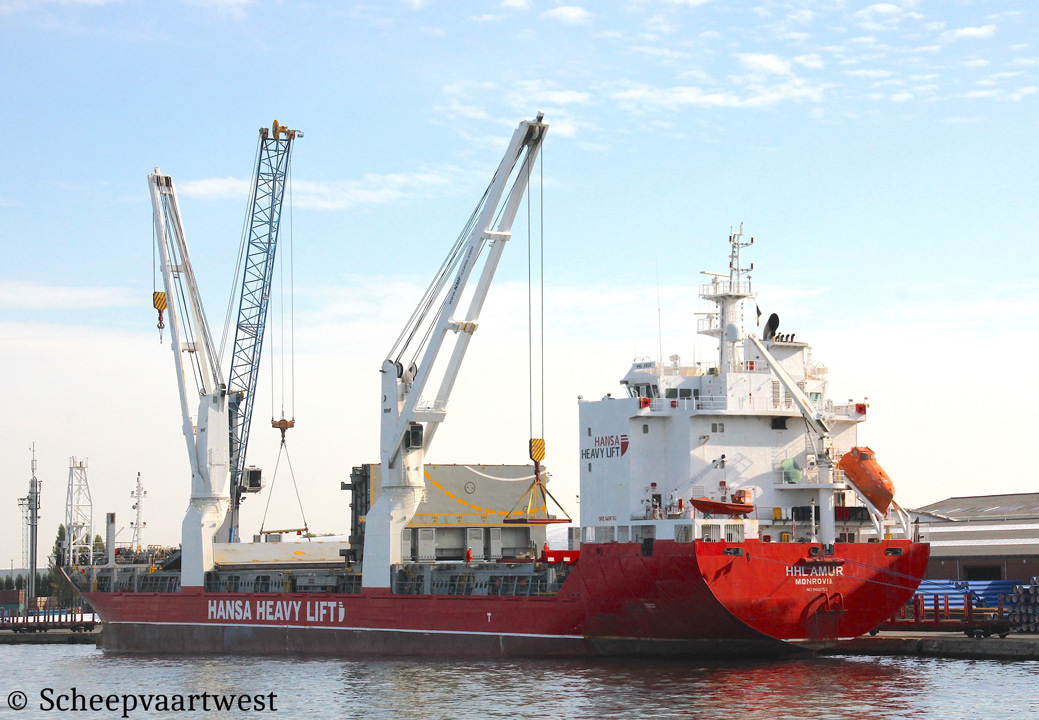

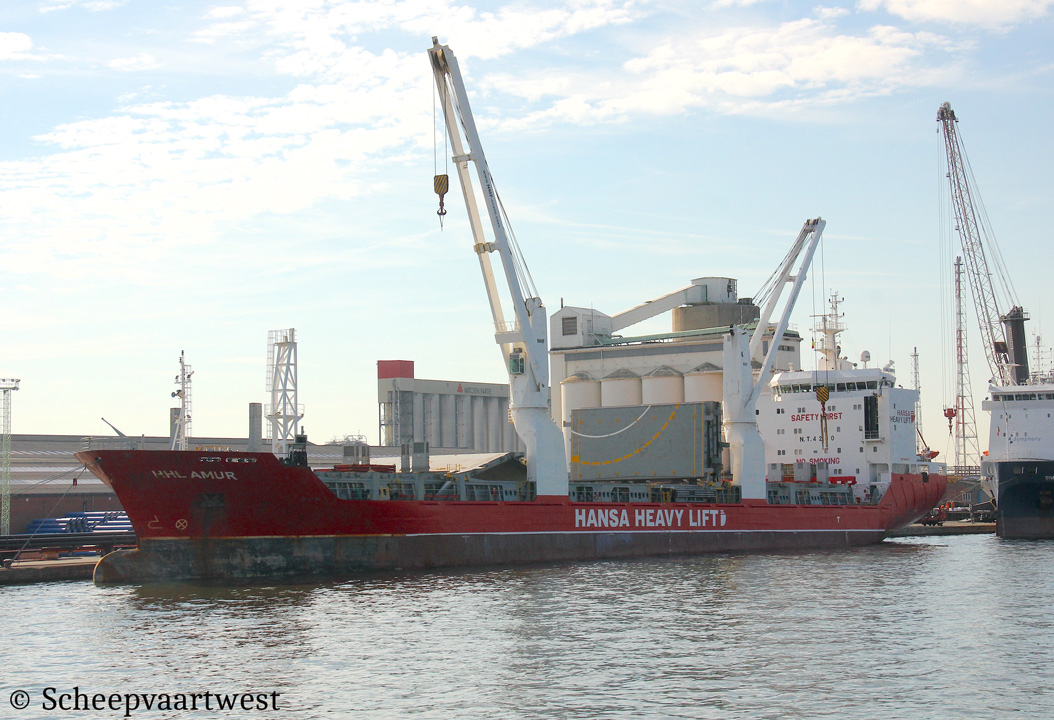

| Antwerpen 16/10/18 | Antwerpen 16/10/18 |
|
Name |
HHL AMUR |
|
Previous names |
01/2009 - 08/2011 Beluga Fidelity |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo and grab fitted |
|
IMO-number |
9435753 |
|
Call sign |
D5CV2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 08/2011 Antigua and Barbuda, St. John's - Call sign: V2DS3 |
|
GT |
9.611 t |
|
DWT |
Summer: 12.678,4 t |
|
NT |
4.260 t |
|
Number of 20ft containers |
On deck: 331 Under deck: 334 Total: 665 |
|
Reefer plugs |
25 |
|
Length |
138,11 m overall 129,96 m between perpendiculars |
|
Breadth |
21,36 m extreme 21,00 m moulded |
|
Draught |
8,00 m |
|
Air draft |
39,40 m to bottom keel |
|
Forecastle |
9,96 m |
|
Depth |
11,00 m moulded |
|
Speed |
Max.: 15,0 knots Eco: 14,0 knots |
|
Built |
2009 |
|
Keel laid |
05/09/2007 |
|
Launch date |
22/04/2008 |
|
Date of completion |
23/01/2009 |
|
Builder |
Jiangzhou Union Shipbuilding Co., Ltd. |
|
Yard number |
JZ1005 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW at 500 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller- aft at 132 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 88,6 m² Year of manufacture: 2007 Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 39,0 m² Year of manufacture: 2007 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
3x Plants each 400/230 V - 494 kVA 1x Plant 400 V - 875 kVA 1x Plant 400 V - 124 kVA 2x Plants each 24 V - 80 Ah 1x Plant 24 V - 135 Ah |
|
Shaft generator |
1x 750 kW |
|
Generators |
3x MAN D2840 LE301 diesel generatorsets each 395 kW |
|
Emergency generator |
1x MAN D2866E diesel generatorset 99 kW |
|
Batteries |
1x Battery for UPS radio 135 Ah 2x Batteries for start emergency engine each 80 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 1x Receiver 1.000 litres - 7,0 bar 1x Receiver 250 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Holds / hatches |
3x Double Skin Boxshaped Hold form: Hold 2: double skinned/boxshaped Hold 1+3: narrow stepwise in container dimensions Ramp: - Hatchcover: Hold 1: 19,30 m (18,75 m opening) x 15,42 m (15,00 m opening) Hold 2: 42,33 m (42,00 m opening) x 17,98 m (17,50 m opening) Hold 3: 26,00 m (25,50 m opening) x 17,98 m (17,50 m opening) Tweendeck: Hold 1: 18,75 m x 15,01 m Hold 2: 42,00 m x 17,50 m Hold 3: 25,50 m x 17,50 m Lower hold: Hold 1: 18,75 m x 15,01 m narrows to 10,06 m over 6,00 m Hold 2: 42,00 m x 17,50 m Hold 3: 25,50 m x 17,50 m narrows to 14,40 m over 5,25 m Heights: Tanktop - Hatchcover Hold 1: 10,53 m Tanktop - Hatchcover Hold 2: 11,18 m Tanktop - Hatchcover Hold 3: 10,77 m Tanktop - Tweendeck (bottom edge) Hold 1: 5,38 m Tanktop - Tweendeck (bottom edge) Hold 2: 3,33 m/ 5,95 m/ 7,40 m (adj.) Tanktop - Tweendeck (bottom edge) - Hold 3: 5,54 m Tweendeck (top edge) Hatchcover - Hold 1: 4,55 m Tweendeck (top edge) Hatchcover Hold 2: 2,98 m/ 4,43 m/ 7,05 m Tweendeck (top edge) Hatchcover - Hold 3: 4,43 m |
|
Hold capacity |
Hold 1: 2.701 m³ / 95.350 ft³ Hold 2: 8.362 m³ / 295.301 ft³ Hold 3: 4.890 m / 172.689 ft³ Total: 15.952 m³ / 563.340 ft³ |
|
Type hatch covers |
TTS hydraulically operated „trans-folding“ and „multi-folding“hatch cover |
|
Hatch cover area |
1.462 m² |
|
Type tweendeck |
Moveable, Pontoons; can be used as vertical bulkheads in holds; 0,60 m height of twd: 0,80 m |
|
Load distribution |
Tank top: 16,0 t/m² Hatch covers: 1,75 t/m² Tween deck: 4,0 t/m² |
|
Tank capacities |
Ballast: 5.000,1 m³ Freshwater: 128 m³ HFO: 948 m³ MGO: 150 m |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Length: 545,00 m Diameter: 52 mm |
|
Cargo gear |
2x Electric hydraulic NMF cranes - SWL each 180 t - combinable up to 360 t |
|
Manager |
Hansa Heavy Lift GmbH |
|
Previous managers |
2009 - 08/2011 Beluga Fleet Management GmbH & Co, KG |
|
Operator |
HHL - Hansa Heavy Lift |
|
Registered owner |
Hansa Heavy Lift UG (haftungsbeschränkt) Co. KG MS "HHL AMUR" |
|
Previous owners |
2009 - 08/2011 Beluga Shipping JZ1005 GmbH & Co. K.G., Bremen - Germany |
|
Renamed |
01/2019 Heerengracht The Netherlands, Amsterdam - Call sign: PBQV Manager: Spliethoff's Bevrachtingskantoor B.V., Amsterdam - The Netherlands |
|
Latest data adjustment |
26 March 2019 |
