Antwerpen 26 October 2015 |
|
Name |

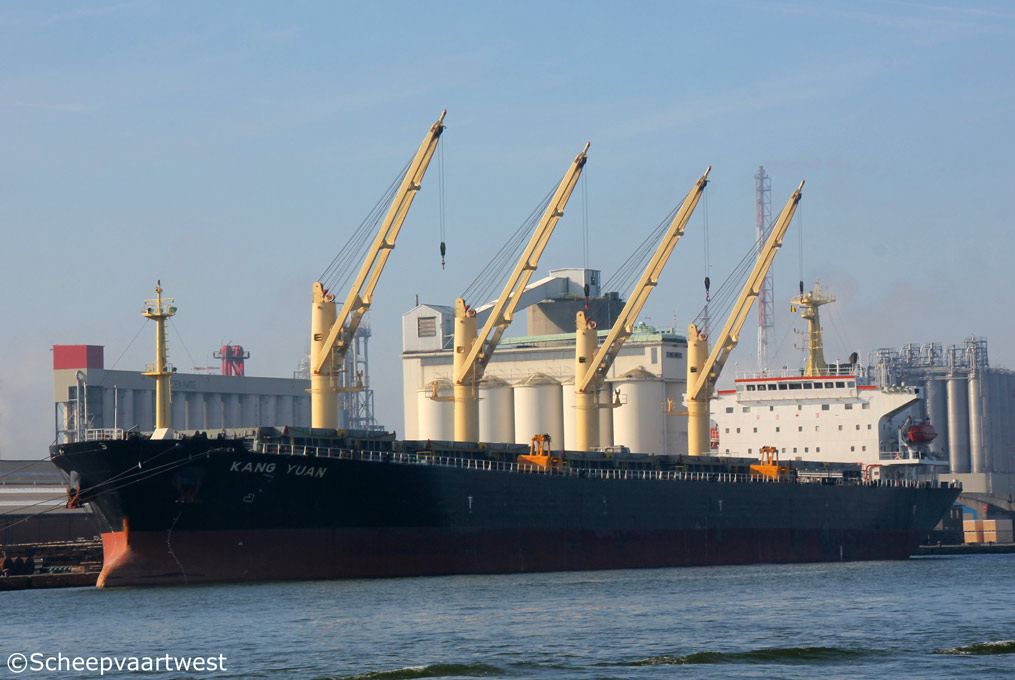

KANG YUAN |
|
Type |
Bulk carrier - Strengthened for heavy cargoes |
|
IMO-number |
9264453 |
|
Call sign |
VRXU5 |
|
Flag |
Hong Kong |
|
Port of registry |
Hong Kong |
|
GT |
29.145 t |
|
DWT |
Summer: 50.467 t |
|
NT |
17.716 t |
|
Length |
189,90 m overall 182,00 m between perpendiculars |
|
Breadth |
32,26m |
|
Draught |
11,60 m |
|
Freeboard |
5.018 mm |
|
Depth |
17,00 m moulded |
|
Speed |
Service: 14,5 knots |
|
Built |
2002 |
|
Keel laid |
01.02.2002 |
|
Launch date |
14.04.2002 |
|
Date of completion |
05.06.2002 |
|
Builder |
Hudong Zhonghua Shipbuilding (Group) Co. Ltd. |
|
Yard number |
H1292a |
|
Hull material |
Steel |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6S50MC - 2 stroke single acting 6 cylinder 500 x 1.910 mm diesel engine 8.561 kW / 11.640 hp at 127,0 rpm Built: 2002 Builder: Hudong Heavy Machinery Co. Ltd. - China |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Oil fired boiler - 7,8 bar / 27,8 m² Builder: Miura Co., Ltd. - Japan |
|
Generators |
3x FE541C-8 diesel generatorsets each 470 kW - 450 Volt |
|
Number of holds |
5 |
|
Total hold capacity |
Bale: Hold 1: 10.508 m³ Hold 2: 14.987 m³ Hold 3: 14.266 m³ Hold 4: 14.716 m³ Hold 5: 12.906 m³ Total: 67.383 m³ |
|
Number of hatches |
5 1x 19,20 x 18,72 m 2x 21,60 x 18,72 m 2x 20,80 x 18,72 m |
|
Lifting equipment |
1x Provision crane - SWL 3,0 t |
|
Cargo gear |
4x Cranes - SWL 40 t each |
|
Crew |
27 |
|
Manager |
COSCO Hk Shipping |
|
Operator |
COSCO ( H.K.) Shipping Co.,Ltd. |
|
Owner |
Top Smart Shipping Limited |
|
Latest data adjustment |
03 December 2015 |
