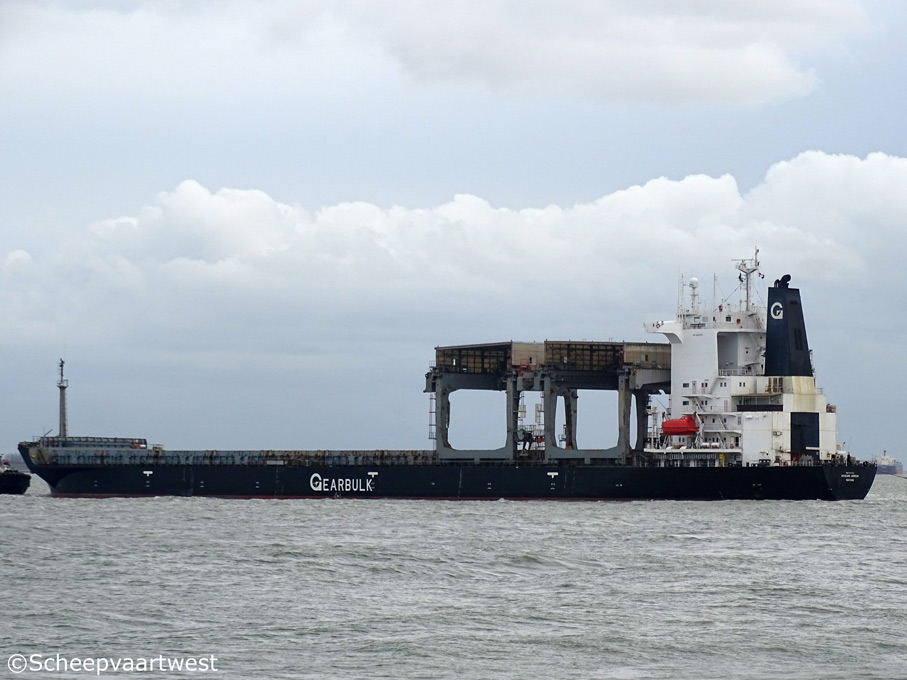

Westerschelde 30 May 2020 |
 |
 |
 |
||
| Westerschelde 30/05/20 | Westerschelde 20/11/15 | Westerschelde 12/03/20 | ||
|
Name |
ARACARI ARROW |
|
Previous names |
1992 launch as: Sea River 1992 - 03/2003 Saga River 03/2003 - 02/2005 Westwood Bridge 02/2005 - 07-2008 Bridge Arrow |
|
Type |
Geared grab fitted open hatch carrier - Forest product carrier |
|
IMO-number |
9008706 |
|
Call sign |
C6YT2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1992 - 2008 Norway 2008 - 2008 Bahamas 2008 - 2010 Norway |
|
GT |
29.369 t |
|
DWT |
Summer: 46.956 t |
|
NT |
12.409 t |
|
Number of 20ft containers |
1.556 |
|
Reefer capacity |
50 |
|
Length |
199,20 m overall 190,00 m between perpendiculars |
|
Breadth |
30,57 m extreme |
|
Draught |
11,82 m |
|
Keel to mast end |
48,30 m |
|
Depth |
16,40 m |
|
Speed |
Service: 14,5 knots Eco: 12,7 knots |
|
Built |
1992 |
|
Keel laid |
12/03/1992 |
|
Launch date |
29/05/1992 |
|
Date of completion |
02/09/1992 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10146 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 13 |
|
Main engine |
1x Sulzer 7RTA52 - 2 stroke single acting 7 cylinder 520 x 1.800 mm combustion engine 8.952 kW / 12.171 hp at 117,0 rpm Builder: Diesel United Ltd., Aioi - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 117,0 rpm |
|
Boilers |
1x Gadeli auxiliary boiler, composite type GCS-22 - 8,0 bar |
|
Generators |
3x Daihatsu 6DL-22 diesel generatorsets each 485 kW |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset 118 kW |
|
Number of hold |
10 |
|
Hold capacity |
Bale: 51.946 m³ |
|
Number of hatches |
10 13,70 x 25,30 m |
|
Deck capacity |
Under deck: 3.208 m² Weather deck: 3.208 m² |
|
Deck strength |
Hatch cobers: 2,50 t/m² Tank top: 25,0 t//m² |
|
Tank capacities |
Ballast: 16.185 m³ Fuel oil: 2.311 t MDO: 250 t |
|
Cargo gear |
2x Gantry cranes - SWL 40 t each Grabs: 2x 13 - 15 m³ |
|
Crew size |
30 |
|
Crew |
24 |
|
Commercial manager |
G2 Ocean AS Grieg-Gaarden, C. Sundtsgate 17 5809 Bergen Norway |
|
ISM Manager |
Gearbulk Norway AS Ytrebygdsvegen 215 5258 Blomsterdalen Norway |
|
Previous managers |
1992 - 2008 Borgestad Shipmanagement AS 2008 - 2011 Kristian Gerhard Jebsen Skipsrederi AS |
|
Registered owner |
Gearbulk Shipowning Ltd. Care of Gearbulk Ltd. Damsgaardsveien 165 5160 Laksevaag Norway |
|
Previous owners |
1992 - 2004 KS Borgestad Forest III 2004 - 2006 Borgestad Shipping AS 2006 - 2013 Gearbulk Shipping AS |
|
Latest data adjustment |
20 December 2021 |
