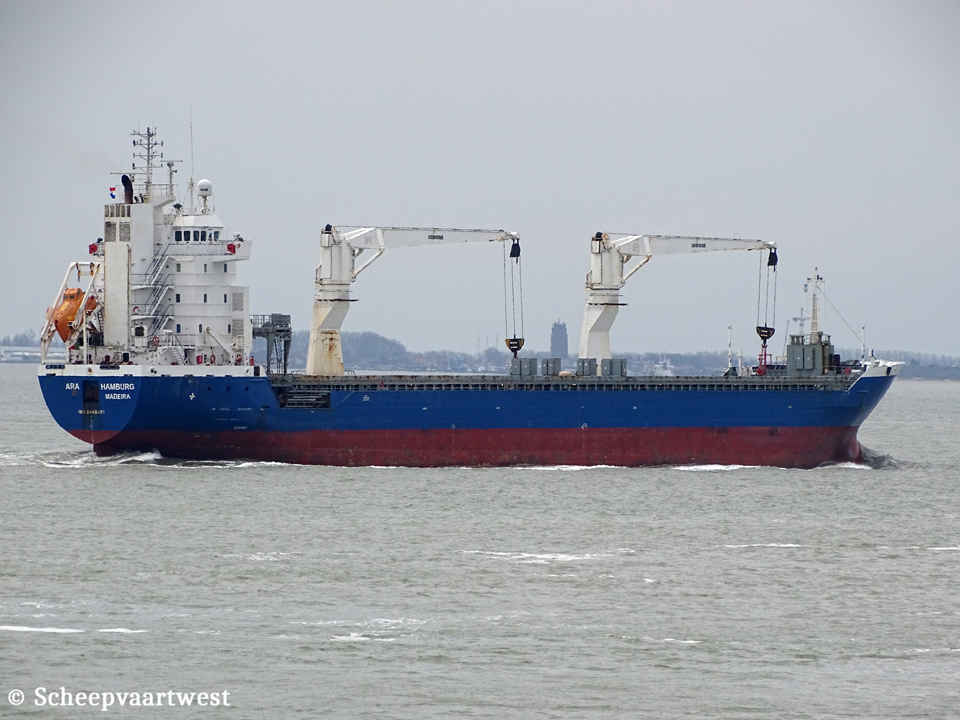

Westerschelde 06 April 2020 |
 |

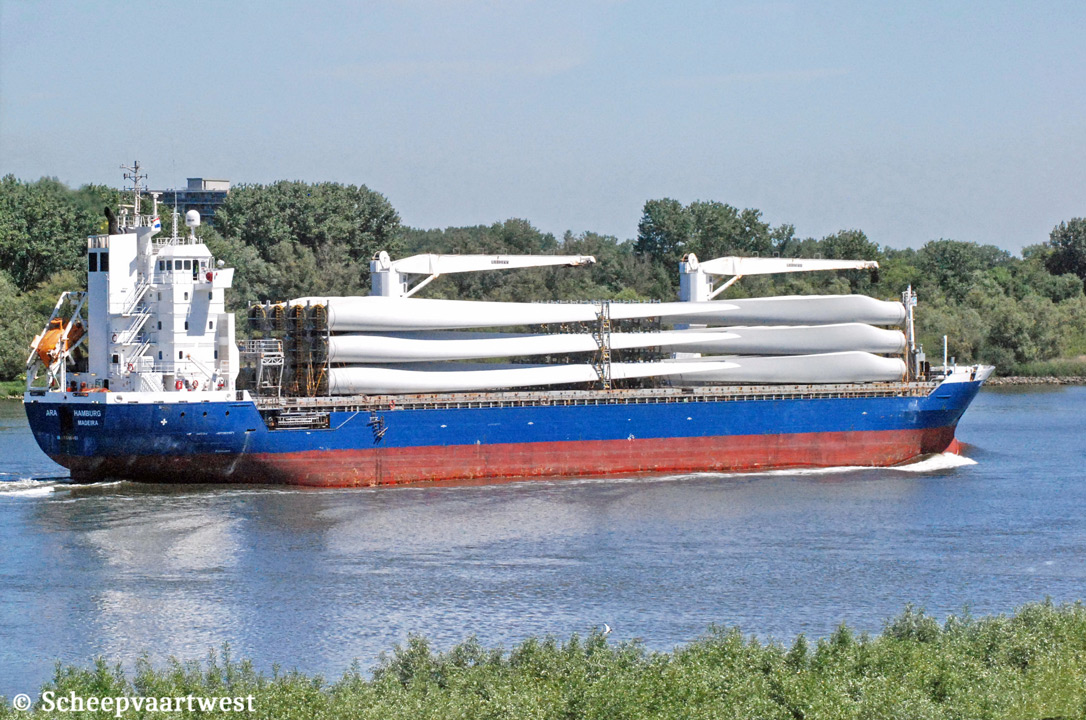

| Spijkenisse 29/05/20 |
|
Name |
ARA HAMBURG |
|
Previous names |
2009 Build as: Dutch Carina 03/2009 - 06/2009 Beluga Nation 06/2009 - 10/2011 BBC New York 10/2011 - 10/2013 Nina Scan 10/2013 - 08/2014 Thorco Adventure 08/2014 - 11/2016 Ikon Star 11/2016 - 2019 BBC New York |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Flush Tweendeck, removable |
|
IMO-number |
9448451 |
|
Call sign |
CQAO6 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
Antigua & Barbuda, St. John’s - Call sign: V2DM6 |
|
GT |
6.351 t |
|
DWT |
Summer: 9.825 t Winter: 9.525 t |
|
NT |
3.617 t |
|
Number of 20ft containers |
On deck: 210 In hold: 264 Total: 474 |
|
Container capacity 14t |
328 |
|
Reefer capacity |
In hold: 70 On deck: 130 Total: 200 - (400 V / 60 Hz) |
|
Length |
132,20 m overall 124,56 m between perpendiculars |
|
Breadth |
15,87 m extreme |
|
Draft |
Summer: 7,78 m Ballast: fore/aft 3,00 m / 4,40 m |
|
Air draft |
Ballast: 38,00 m |
|
Depth |
9,65 m |
|
Speed |
14,8 knots |
|
Built |
2009 |
|
Keel laid |
12/12/2007 |
|
Launch date |
09/03/2008 |
|
Date of completion |
20/03/2009 |
|
Builder |
Qingdao Heshun Shipyard Co., Ltd. China |
|
Yard number |
HS-8501 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
6 |
|
Movable bulkheads |
2x Bulkheads (8 positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW at 600 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, exhaust heated - 77,0 m² - 10,0 bar 1x Thermal oil heater, oil fired - 17,5 m² - 10,0 bar |
|
Shaft generator |
1x 694 kVA - 555 kW |
|
Generators |
2x Scania DI 1262 M - 4 stroke 6 cylinder 127 x 154 mm main diesel generatorsets 405 kVA - 324 kW - 455 hp |
|
Emergency generator |
1x Sisu 49-CTAG-4V diesel generatorset |
|
Bow thruster |
500 kW |
|
Number of holds |
2x Box type Hold 1: 39,96 x 13,20 x 10,80 m (narrowing fore) Hold 2: 52,54 x 13,20 x 10,80 m (narrowing aft) |
|
Cargo hold capacity |
Bale/grain: Hold 1: 5.028,19 m³ Hold 2: 7.010,23 m³ Total: 12.038,42 m³ |
|
Hold space |
Hold 1: Tank top: 462.,70 m² Tweendeck: 478,40 m² Hatchcover: 505,56 m² Total 1.446,66 m² Hold 2: Tank top: 685,40 m² Tweendeck: 690,37 m² Hatchcover: 673,20 m² Total: 2.048,97 m² |
|
Hold ventilation |
12x Air changes per hour |
|
Number of hatches |
2 Hatch 1: 41,36 x 13,55 m Hatch 2: 52,84 x 13,55 m |
|
Hatch type |
Pontoon |
|
Tweendeck |
Panels: 18 panels Height under td/above td : 4,55 m / 5,59 m |
|
Max permitted loads |
Tanktop hold 1: 14,7 t/m² Tanktop hold 2: 20,0 t/m² Tweendeck: 3,5 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
HFO: 540,73 m³ MGO: 59,70 m³ Fresh water: 73,11 m³ Ballast: 3.537,88 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 46 mm |
|
Lifting equipment |
1x Gantry crane to remove hatchcover panels |
|
Cargo gear |
2 x Liebherr electro hydraulic cranes: SWL 60 t (3,50 - 16,00m) SWL 40 t (2,00 - 24,00 m) SWL 36 t (2,00 - 28,00 m) m each 120 t / 16,00 m combinable |
|
Crew size |
12 |
|
Manager |
Werkendam Office ARA Ship Management BV Sijlweg 18-20 4251 NS Werkendam The Netherlands |
|
Registered owner |
ARA Hamburg Shipping B.V. |
|
Latest data adjustment |
25 December 2020 |
