Westerschelde 11 November 2015 |
|
Name |

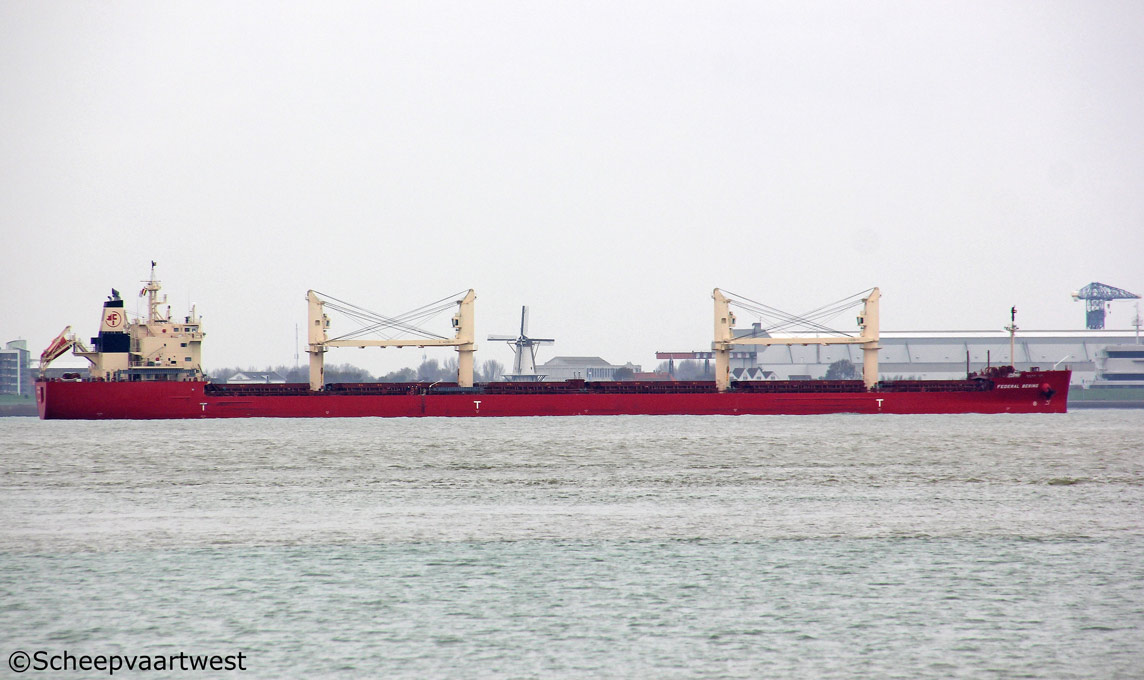

FEDERAL BERING |
|
Type |
Bulk carrier |
|
IMO-number |
9697832 |
|
Call sign |
V7NB6 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
GT |
20.789 t |
|
DWT |
Summer: 34.564 t Winter: 33.583 t |
|
NT |
11.617 t |
|
Length |
199,98 m overall 195,50 m between perpendiculars |
|
Breadth |
23,76 m |
|
Draught |
Summer: 10,86 m Winter: 10,63 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots |
|
Built |
2015 |
|
Keel laid |
08.11.2013 |
|
Launch date |
24.06.2015 |
|
Date of completion |
31.07.2015 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10767 |
|
Hull material |
Steel |
|
Main engine |
1x Kawasaki-MAN B&W 5S50ME-B9.3 - 5 cylinder diesel engine |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite Builder: Alfa Laval K.K. Marine & Offshore System |
|
Generators |
3x Daihatsu 6DK-20e diesel generatorsets Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Deutz TCD 914 L06 M diesel generatorset Builder: Deutz AG Werk, Ulm - Germany |
|
Number of holds |
6 Hold 1: 25,20 x 5,10/21,00 m Hold 2: 27,60 x 21,00/21,00 m Hold 3: 28,30 x 21,00/21,00 m Hold 4: 20,40 x 21,00/21,00 m Hold 5: 28,30 x 21,00/21,00 m Hold 6: 22,20 x 21,00/10,40 m |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 5.887 m³ / 5.842 m³ Hold 2: 7.751 m³ / 7.738 m³ Hold 3: 7.913 m³ / 7.900 m³ Hold 4: 6.185 m³ / 6.141 m³ Hold 5: 7.908 m³ / 7/895 m³ Hold 6: 6.007 m³ / 5.982 m³ Total: 41.651 m³ / 41.498 m³ |
|
Number of hatches |
6 Hatch 1: 15,00 x 13,20 m Hatch 2: 20,20 x 16,80 m Hatch 3 20,20 x 16,80 m Hatch 4: 14,10 x 16,80 m Hatch 5: 20,20 x 16,80 m Hatch 6: 15,80 x 16,80 m |
|
Hatch type |
Folding hydraulic |
|
Max. permitted loads |
Tank top: Hold 1: 20,2 t/m² Hold 2: 20,0 t/m² Hold 3: 20,0 t/m² Hold 4: 22,2 t/m² Hold 5: 20,0 t/m² Hold 6: 24,8 t/m² |
|
Tank capacities |
IFO: 1.386 m³ MDO: 449 m³ Ballast: 19.337,2 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
4x Cranes - SWL 35,0 t each |
|
Manager |
Anglo-Eastern Ship Management Limited |
|
Operator |
Fednav 1000 de La Gauchetière Street West, Suite 3500 |
|
Registered owner |
Federal Atlantic Ltd. |
|
Latest data adjustment |
05 March 2016 |
