| Westerschelde 03 February 2016 |
 |
 |
 |
||
| Westerschelde 03/12/16 | Westerschelde 30/04/18 | Westerschelde 21/01/16 | ||
|
Name |

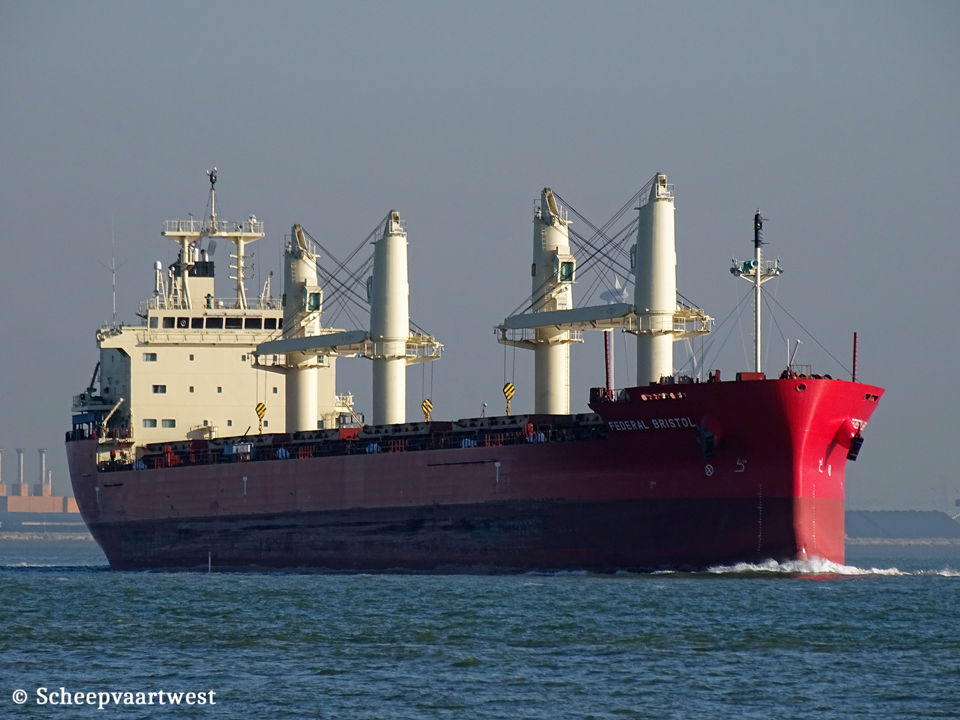

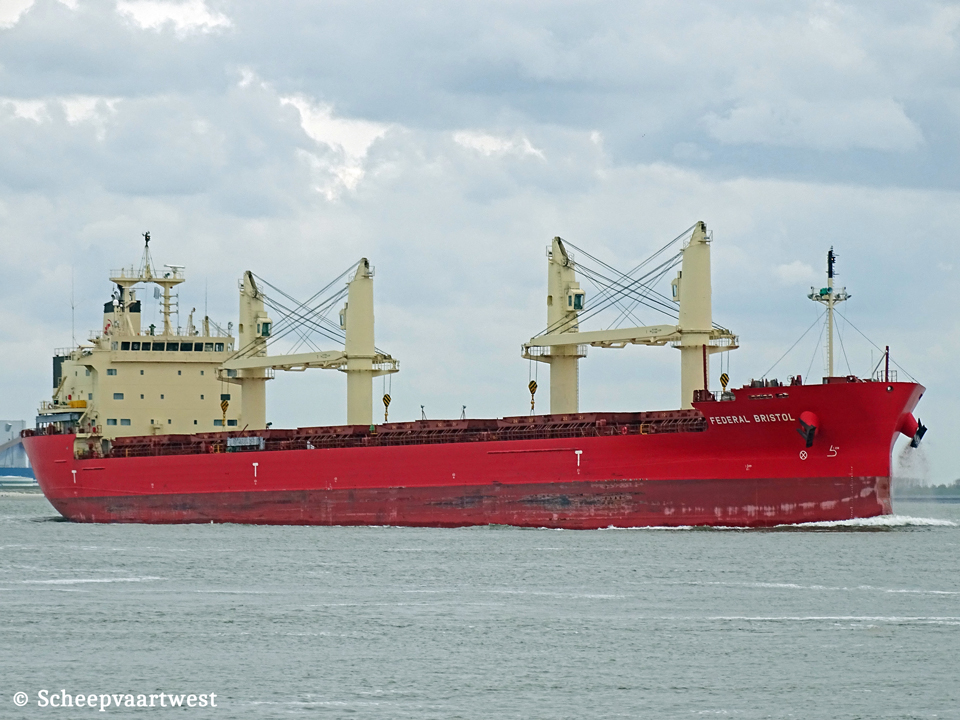

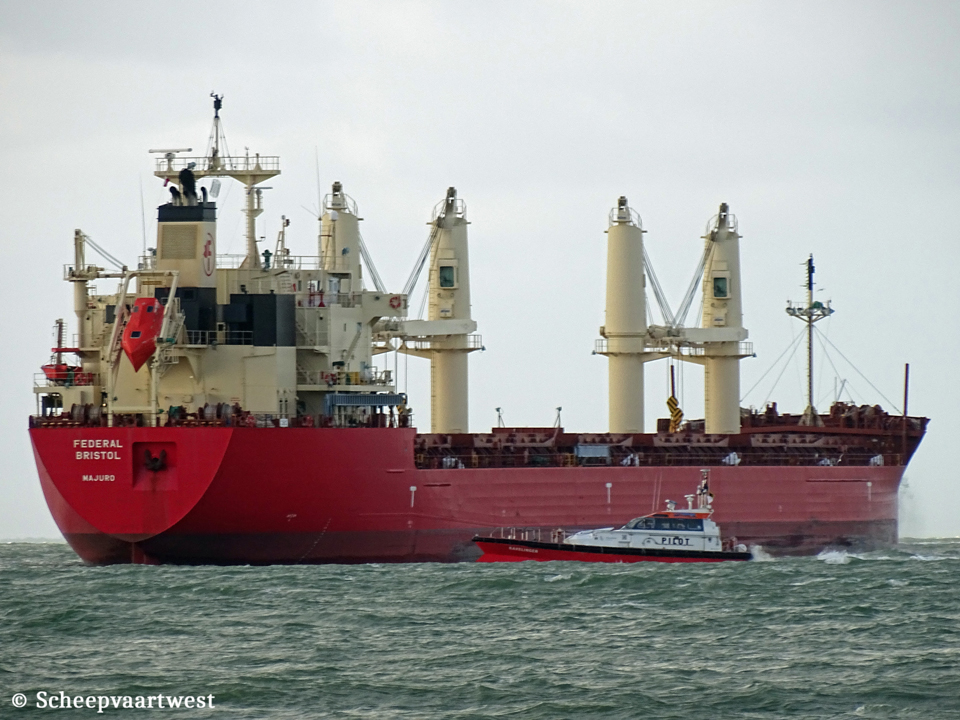

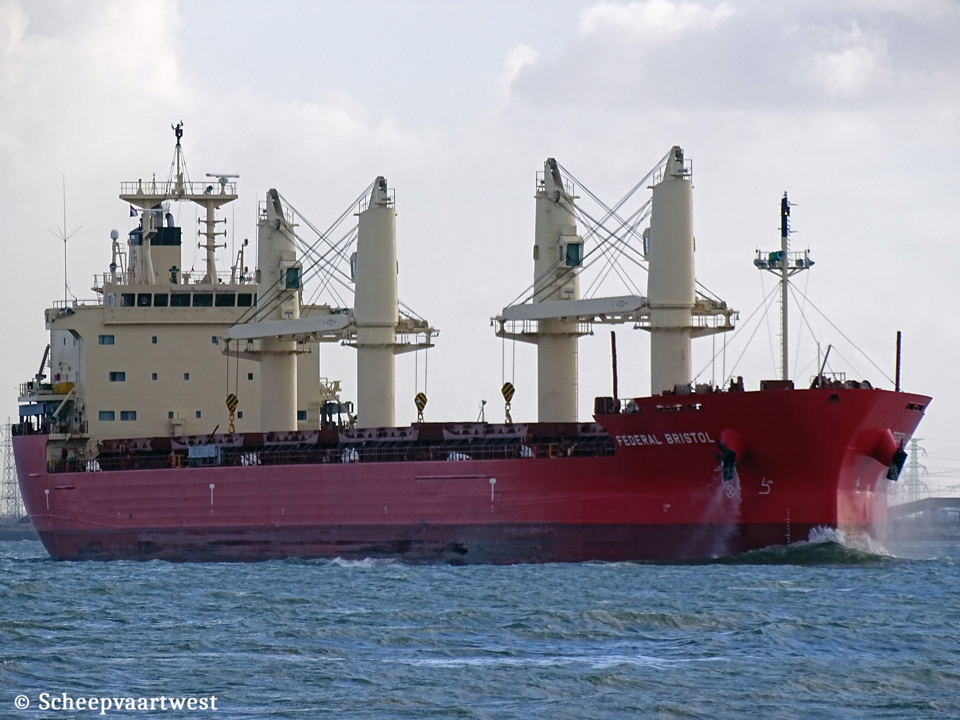

FEDERAL BRISTOL |
|
Type |
Bulk carrier - Suezmax |
|
IMO-number |
9697844 |
|
Call sign |
V7NB9 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
20.789 t |
|
DWT |
34.564 t |
|
Length |
199,98 m overall 195,50 m between perpendiculars |
|
Breadth |
23,76 m extreme |
|
Draught |
Summer: 10,86 m |
|
Depth |
14,85 m |
|
Speed |
Service: 14,0 knots Max: 17,9 knots |
|
Built |
2015 |
|
Keel laid |
08/11/2013 |
|
Launch date |
30/08/2015 |
|
Date of completion |
02/10/2015 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10768 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Kawasaki/MAN-B&W 5S50ME-B9.3 - 5 cylinder 500 x 2.214 mm combustion engine 8.900 kW |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite Manufacturer: Alfa Laval K.K. Marine & Offshore System |
|
Generators |
3x Daihatsu 6DK-20e main diesel generatorsets Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Deutz TCD 914 L06 M diesel generatorset |
|
Bow thruster |
1x Nakashima TCT-165 bow thruster |
|
Number of holds |
6 |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 5.887 / 5.842 m³ Hold 2: 7.751 / 7.738 m³ Hold 3: 7.913 / 7.009 m³ Hold 4: 6.185 / 6.141 m³ Hold 5: 7.908 / 7.895 m³ Hold 6: 6.007 / 5.982 m³ |
|
Number of hatches |
6 |
|
Tank capacities |
Ballast: 19.337,2 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
4x Deck cranes - SWL 35,0 t each |
|
Commercial manager |
Fednav Ltd. 1000 de La Gauchetière Street West, Suite 3400 Montreal, Quebec H3B 4W5 Canada |
|
ISM manager |
Anglo-Eastern Ship Management Ltd. 23rd Floor, 248, Queen's Road East Wan Chai, Hong Kong China |
|
Registered owner |
Federal Atlantic |
|
Latest data adjustment |
27 April 2023 |
