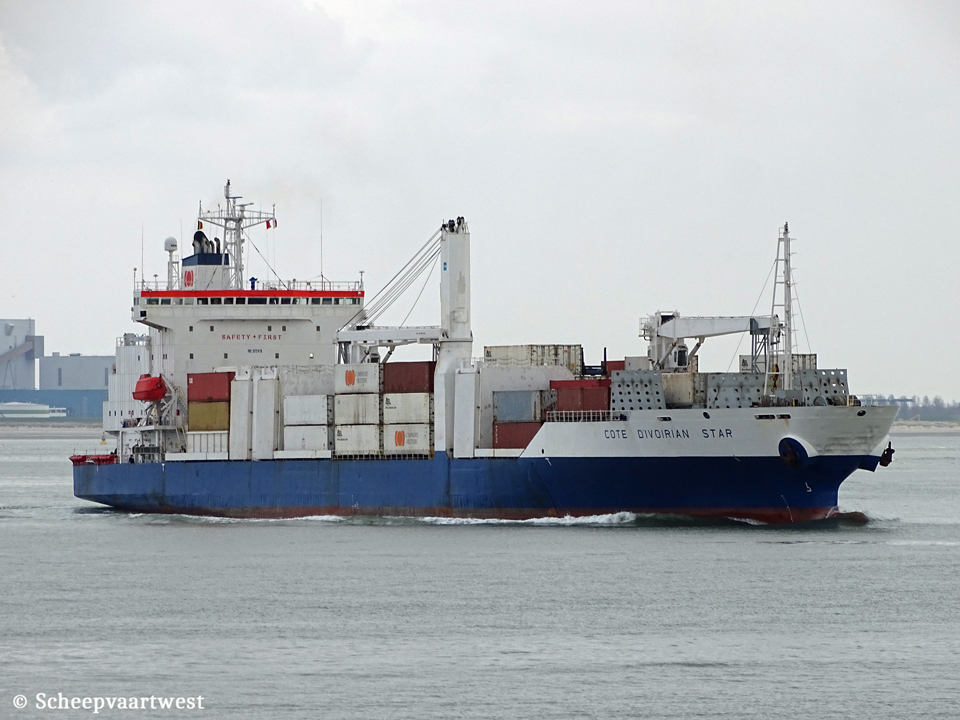

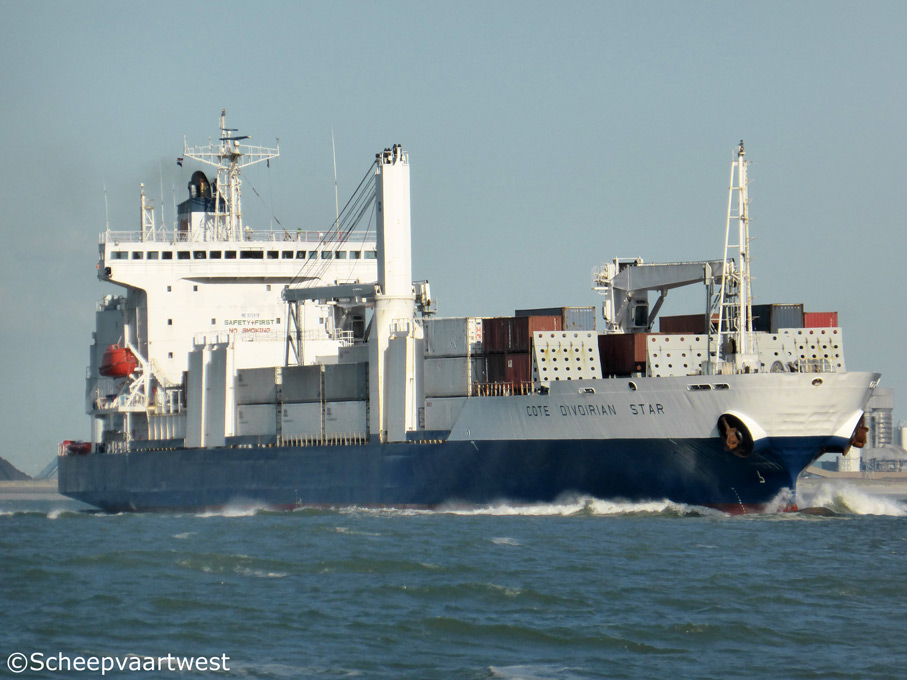

Westerschelde 25 June 2020 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 28/04/15 | Westerschelde 18/09/16 | Westerschelde 19/07/15 | Terneuzen 02/08/17 | Westerschelde 13/04/20 | Westerschelde 28/03/19 | |||||
 |
 |
|||||||||
| Westerschelde 28/03/19 | Westerschelde 21/07/15 | |||||||||
|
Name |
COTE D'IVOIRIAN STAR |
|
Type |
Refrigerated cargo ship - Equipped for carriage of containers - Equipped for Carriage of Cars |
|
IMO-number |
9172478 |
|
Call sign |
A8SL4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
15.292 t |
|
DWT |
Summer: 14.815 t |
|
NT |
7.414 t |
|
Displacement |
Summer: 24.454 t |
|
Number of 20ft containers |
On deck: 119 On hatch covers: 121 Under deck: 48 Container hold: 96 Total: 384 |
|
Reefer sockets |
196 |
|
Length |
184,80 m overall 175,40 m between perpendiculars |
|
Breadth |
24,00 m extreme |
|
Draught |
9,07 m |
|
Keel to top of mast |
41,49 m |
|
Freeboard |
Summer: 4.295 mm |
|
Depth |
13,30 m |
|
Speed |
Max: 21,4 knots |
|
Built |
1998 Transformation year: 2014 |
|
Keel laid |
13/10/1997 |
|
Delivery |
11/05/1998 |
|
Builder |
Shikoku Dockyard Co., Ltd. Takamatsu Japan |
|
Yard number |
887 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm combustion engine 12.268 kW / 16.668 hp at 105,0 rpm Built: 10/1997 Builder: Mitsui/MAN-B&W - Japan |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x CHM 275,00 m² - 7,0 bar |
|
Generators |
4x Main diesel generatorsets each 1.125 kVA - 900 kW - 1.223 hp |
|
Emergency generator |
1x Diesel generatorset 80 kVA - 64 kW - 111 hp |
|
Number of holds |
5 |
|
Total capacity of holds |
32.024 m³ |
|
Number of hatches |
5 |
|
Pallets |
5.134 |
|
Temperature compartments / zones |
16/8 |
|
Temperature range |
+15° / -25° C |
|
Controlled atmosphere zones |
8 |
|
Ventilation |
90x Air circulations per hour 2x Air renewals per hour |
|
Tank capacities |
HFO: 1.547,1 m³ MDO: 182,3 m³ Lub oil: 142,2 m³ Ballast: 3.805,13 m³ fresh water: 347,6 m³ |
|
Cargo gear |
2x Cranes - SWL 37 t each 1x Crane - SWL 45 t 3x Side loading system 12,5 t (8 pallets per lift) |
|
ISM & commercial manager |
Siem Shipping UK Ltd. 40 Brighton Rd Sutton SM2 5BN United Kingdom |
|
Registered owner |
SSI Shipowning I Inc. Care of Siem Shipping UK Ltd. 40, Brighton Road Sutton, SM2 5BN United Kingdom |
|
Latest data adjustment |
14 January 2022 |
