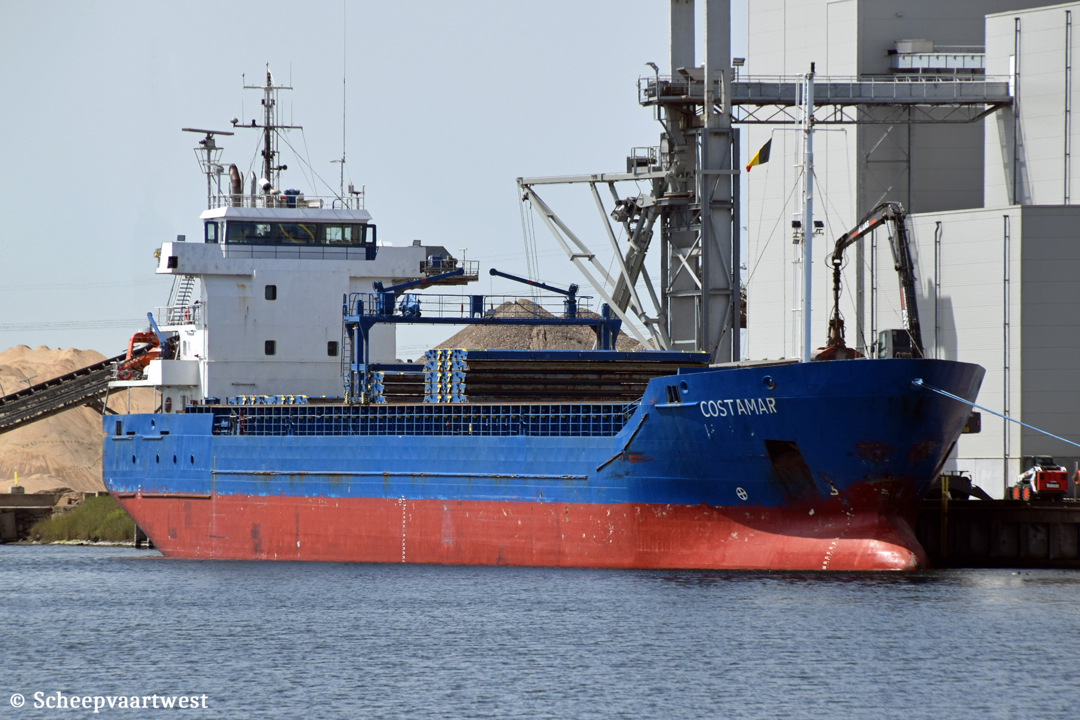

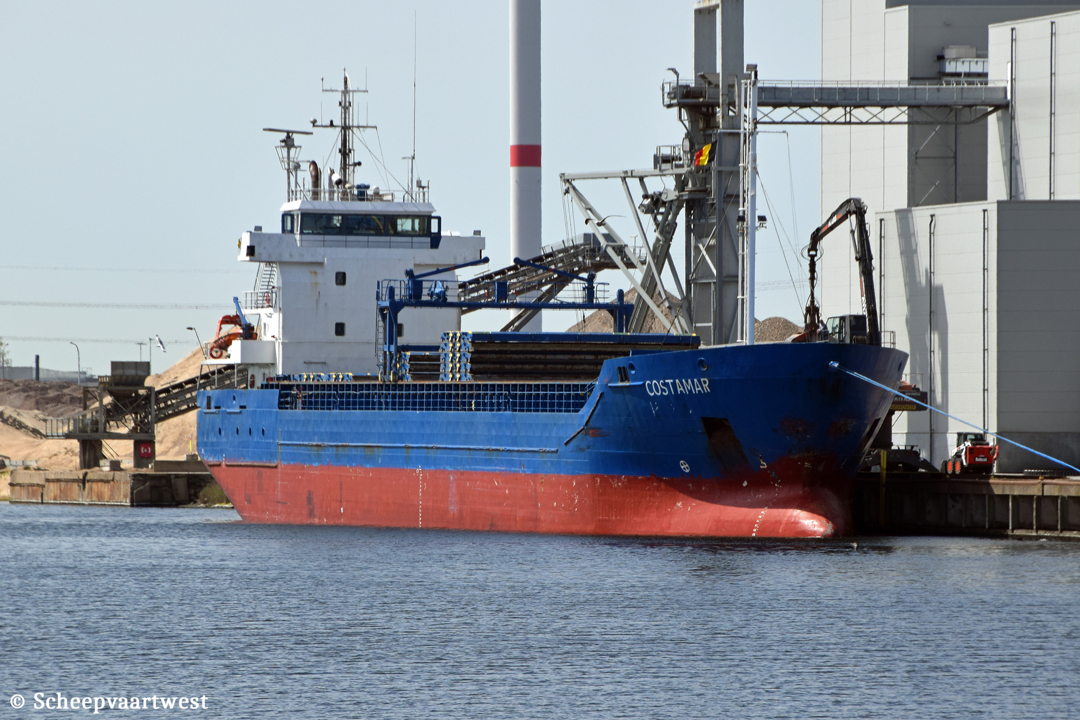

| Zeebrugge 01 May 2024 |
 |
|
| Zeebrugge 01/05/24 | |
|
Name |
COSTAMAR |
|
Previous names |
2010 Launch as: Grona Biessum 12/2010 - 07/2012 Emssea 07/2012 – 08/2016 Grona Biessum 08/2016 – 02/2017 Norma |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Gearless box single decker |
|
IMO-number |
9552020 |
|
Call sign |
CQIK9 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
Antigua & Barbuda, St. John's – Call sign: V2FG9 |
|
GT |
3.500 t |
|
DWT |
5.217,4 t |
|
DWCC |
Summer: 4.900 t Winter: 4.800 t |
|
NT |
1.382 t |
|
Light ship |
1.594 t |
|
Number of 20ft containers |
On deck: 80 In hold: 108 Total: 188 |
|
Number of 40ft containers |
On deck: 36 + 8 TEU In hold: 84 + 20 TEU Total: 120 + 28 TEU |
|
Length |
99,49 m overall 92,45 m between perpendiculars |
|
Breadth |
13,55 m extreme 13,36 m moulded |
|
Draught |
6,15 m fully laden |
|
Air draft |
24,50 m |
|
Depth |
9,11 m moulded |
|
Speed |
10,0 knots |
|
Built |
2010 |
|
Keel laid |
18/12/2008 |
|
Launch date |
26/07/2010 |
|
Date of completion |
15/15/2010 |
|
Builder |
Western Marine Shipyard Ltd. Chittagong Bangladesh |
|
Yard number |
928/02 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Movable bulkheads |
2 - 4 pontoons |
|
Main engine |
1x MaK 6M25 C – 4 stroke 6 cylinder 255 x 400 mm combustion engine 2.000 kW at 750 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired type Compact A 200 |
|
Generators |
2x SISU CTAG-4V 74.475 main diesel generatorsets each 182 kW |
|
Emergency generator |
1x SISU 49.548DTG diesel generatorset |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
1 Dimension: 61,80 x 11,20 x 9,60 m |
|
Cargo hold capacity |
Grain/bale: 6.646 m³ / 234.629 ft³ |
|
Number of hatches |
1 Dimension: 61,80 x 11,20 m |
|
Hatch cover type |
Pontoon hatch covers |
|
Floor space |
Under deck: 962 m²/ 7.448 ft² On deck: 713 m³ / 7.674 ft² |
|
Max. permitted loads |
Tank top: 15 t/m² Hatch cover: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 332 m³ MGO: 37 m³ Fresh water: 42 m³ Ballast: 1.909 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
ISM & commercial manager |
Briese Dry Cargo GmbH & Co. KG Hafenstrasse 12 26789 Leer Germany |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS “Norma” Leer Germany |
|
Latest data adjustment |
06 May 2024 |
