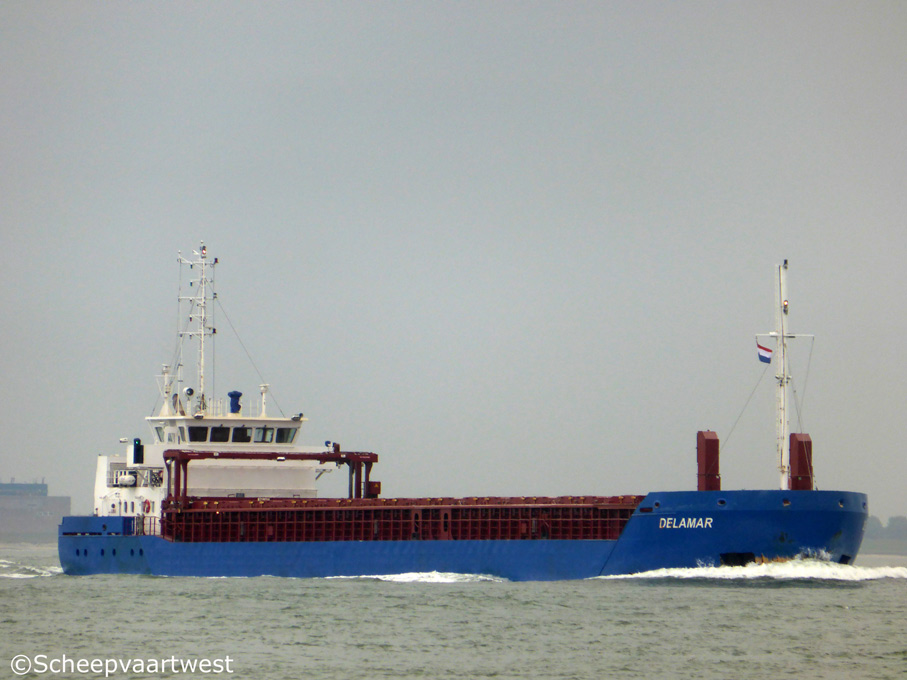

Delamar 01

Westerschelde 21 May 2014

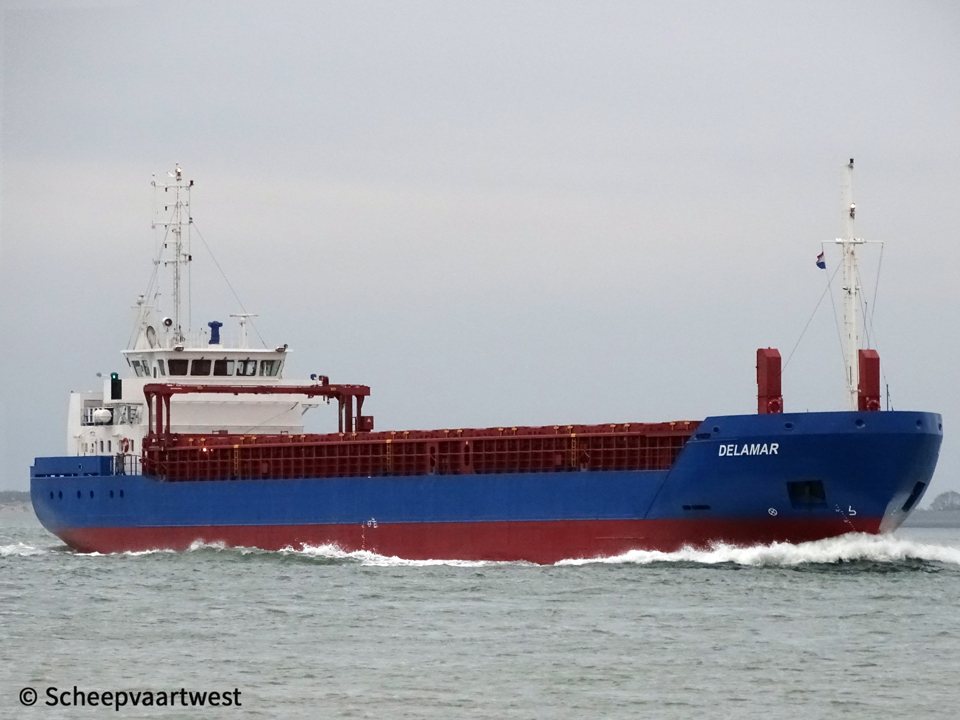

Delamar 02
Westerschelde 24/10/18









Name

DELAMAR

Type

General cargo ship - Tweendecker - Equipped for carriage of containers - Equipped for carriage of dangerous goods

IMO-number

9528500

Call sign

5BJJ5

Flag

Cyprus

Port of registry

Limassol

Previous flag

Gibraltar, Gibraltar - Call sign: ZDKG5

GT

2.779 t

DWT

Summer: 4.060 t

DWCC

Summer: 4.059,33 t

Winter: 3.935,32 t

NT

1.384 t

Number of 20ft containers

In hold: 96

On deck: 38

Total: 134

Length

87,90 m overall

84,47 m between perpendiculars

Breadth

12,62 m

Draught

Summer: 5,67 m

Air draft

25,40 m

21,30 m with lower aft mast

Depth

6,10 m moulded

Speed

12,5 knots in ballast

Built

2011

Delivery date

07/2011

Builder

MARPRO - Marine Projects Ltd. Spolka Z Ograniczona Odpowiedzialnoscia

Gdansk

Poland

Builder completion

Bodewes Scheepswerven B.V.

Hoogezand

The Netherlands

Yard number

705

Hull material

Steel

Hull type

Single hull

Number of decks

1

Movable bulkheads

2x 4 pontoons / transv. to tweendeck (17,20 m)

Main engine

1x MaK 6M25 - 6 cylinder combustion engine 1.880 kW at 750 rpm

Propellers

1x Four bladed controllable pitch propeller

Shaft generator

1x 264 kW

Generators

1x Main diesel generatorset 182 kW

Emergency generator

1x Diesel generatorset 146 kW

Bow thruster

1x 280 kW

Number of holds

1

61,95 x 10,30 m x 8,99 m

Hold capacity

Bale / Grain: 197.935 ft³ / 5.605 m³

Hold ventilation

6x Times / hour

Number of hatches

1

64,53 x 10,30 m

Hatch type

10x Pontoon steel hatch covers, lift away covers by gantry crane

Max. permitted loads

On tank top abt.: 13,00 t/m²

Tweendeck abt.: 2,40 t/m²

On deck abt.: 1,60 t/m²

Tank capacities

IFO abt.: 180 m³

MGO abt.: 47 m³

Ballast abt.: 1.649 m

Freshwater abt.: 32 m³

Accommodation

7 Cabins

Operator

AtoB@C Shipping AB

Terminal Fyrkajen”

Hamntorget 2

271 39 Ystad

Sweden

Latest data adjustment

23 January 2020
