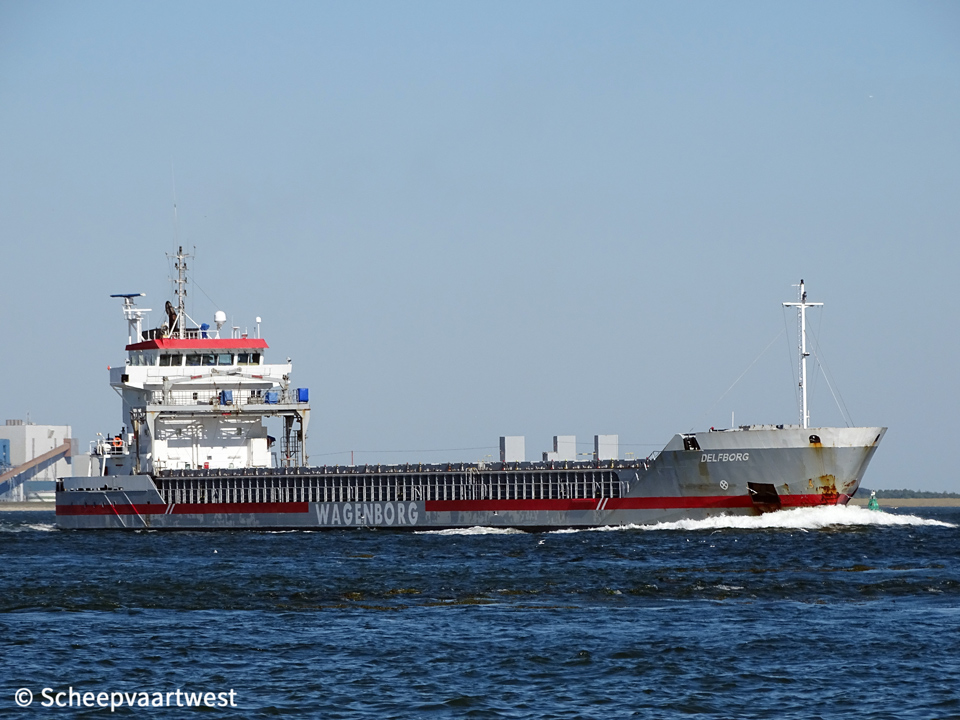

Delfborg 02

Westerschelde 02 July 2018

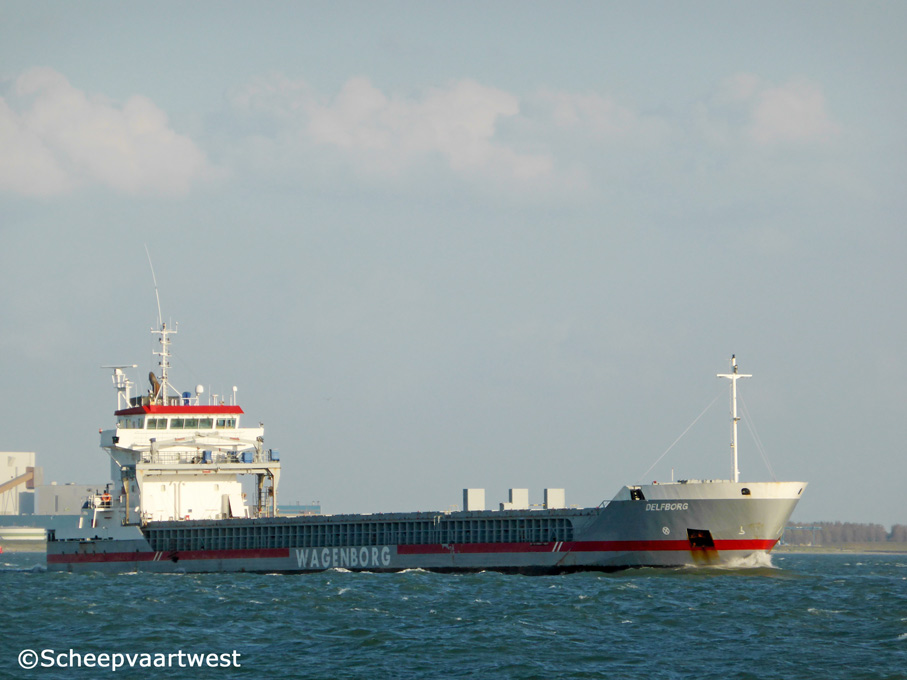

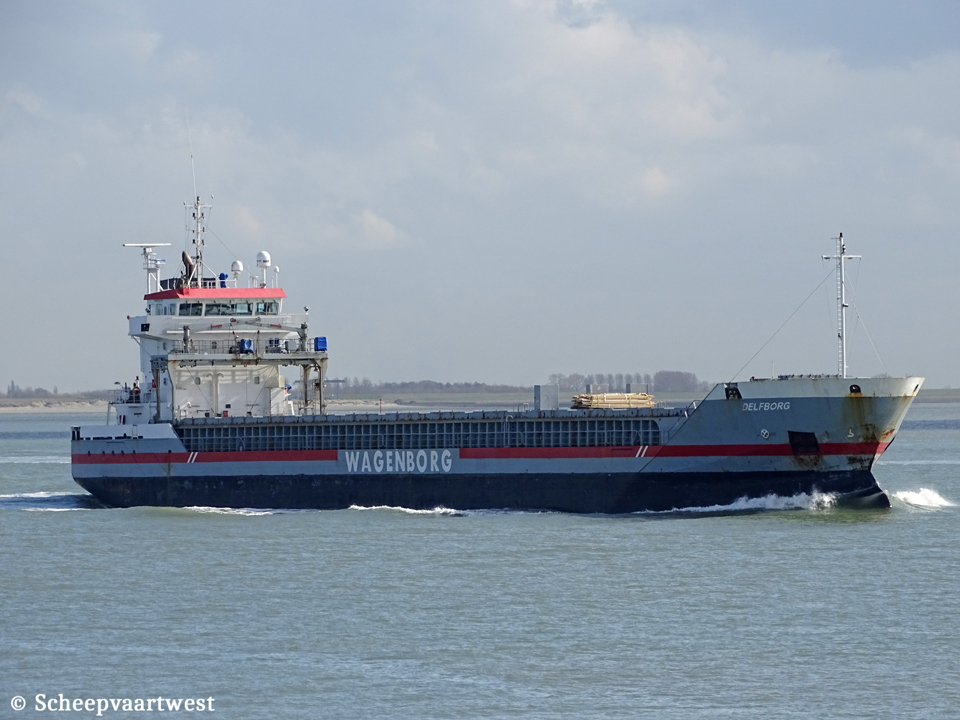

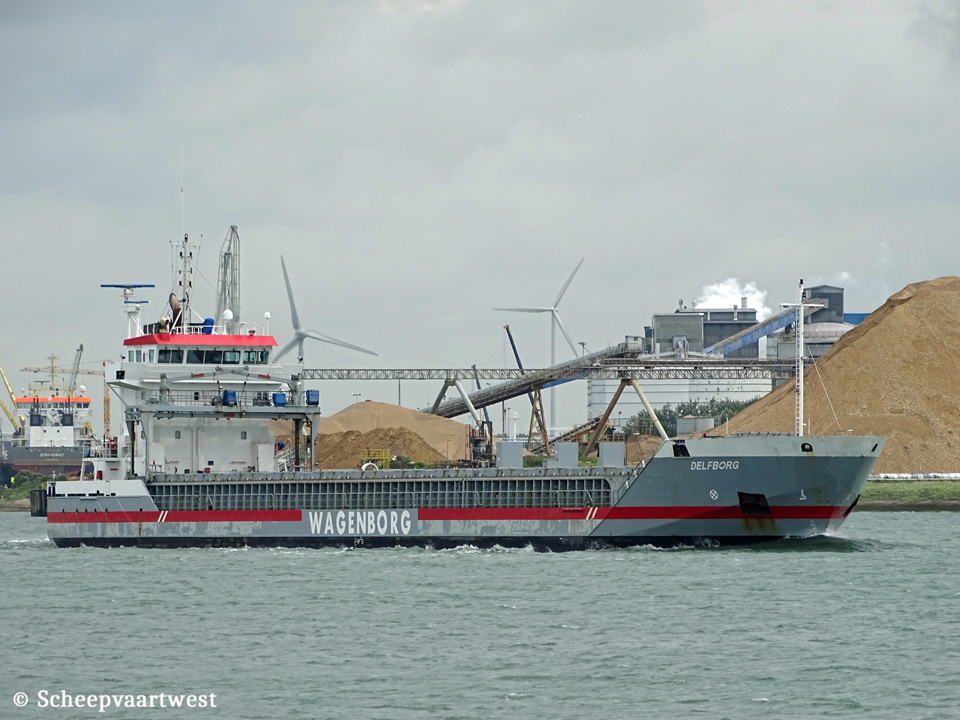

Delfborg 01   Delfborg IMO 9393266 03   Delfborg IMO 9393266 04
Westerschelde 09/10/14   Westerschelde 08/03/19   Westerschelde 18/08/17


Name

DELFBORG

Type

Multi-purpose general dry cargo ship

IMO-number

9393266

Call sign

PHMR

Flag

The Netherlands

Port of registry

Delfzijl

GT

3.990 t

DWT

Summer: 6.000 t

NT

2.208 t

Number of 20ft containers

242

Length

110,78 m overall

105,48 m between perpendiculars

Breadth

14,00 m moulded

Draught

Max.: 6,09 m

Air draft

25,00 m

Depth

8,13 m moulded

Speed

14,0 knots

Built

2007

Keel laid

05/04/2007

Launch date

16/11/2007

Date of completion

14/12/2007

Builder

Ferus Smit Leer GmbH KG

Leer

Germany

Yard number

383

Hull material

Steel

Hull type

Single hull

Watertight compartments

5

Number of decks

1

Main engine

1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm

Built: 2006

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel, Germany

Propellers

1x Controllable pitch propeller - aft at 200 rpm

Electrical installation

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x 390 kW - 400 Volt

Generators

2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp

Emergency generator

1x Diesel generatorset 52 kVA - 42 kW - 68 hp

Bow thruster

1x 340 kW

Number of holds

2

Hold 1: 27,58 x 11,47 x 9,00 m

Hold 2: 50,88 x 11,47 x 9,00 m

Cargo hold capacity

Bale & Grain: 7.946 m³

Number of hatches

2

Hatch 1: 27,58 x11,47 m

Hatch 2: 50,88 x 11,47 m

Tank capacities

Bunker: 400 t

Fuel: 444,9 m³

Crew size

8

Commercial manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

ISM manager

Rederij H.J. Smith

Capelle aan den IJssel

The Netherlands

Registered owner

C.V. Scheepvaartonderneming Delfborg (Steven M. Smith, Assen - The Netherlands)

Delfzijl

The Netherlands

Latest data adjustment

06 August 2024
