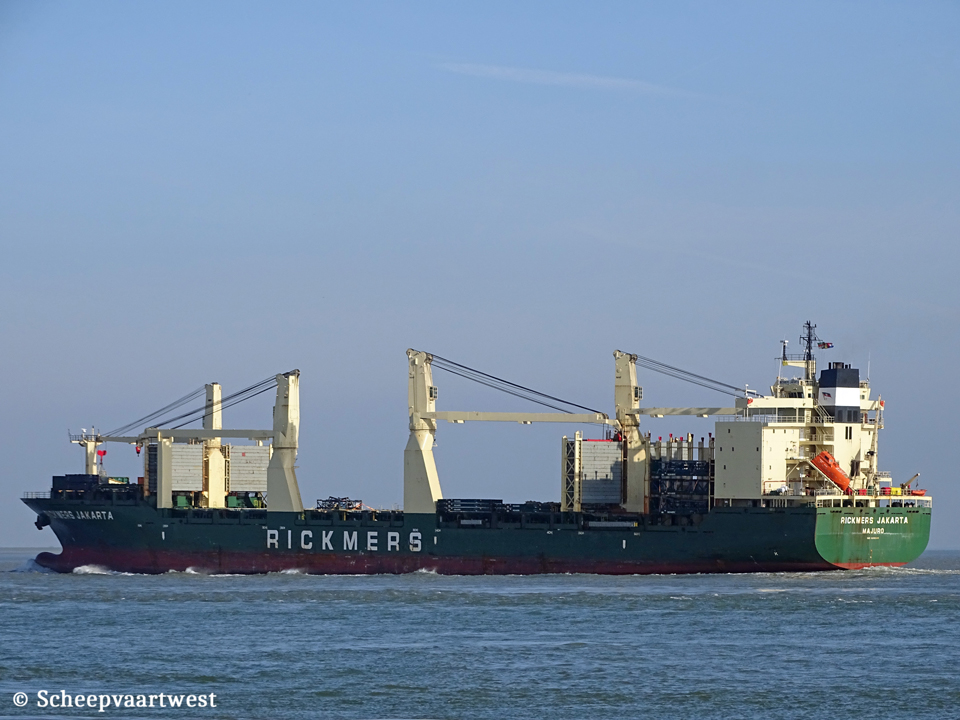

Westerschelde 21 May 2014 |
 |
| Westerschelde 21/05/14 |
|
Name |
RICKMERS JAKARTA |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9292010 |
|
Call sign |
V7FE9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.119 t Panama: 23.119 t Suez: 23.617 t |
|
DWT |
Summer: 29.900,2 t |
|
NT |
9.752 t Panama: 20.277 t Suez: 20.277 t |
|
Number of 20ft containers |
In hold: 830 On deck: 1.058 Total: 1.888 |
|
Container capacity 14t |
1.350 |
|
Reefer capacity |
150 |
|
Length |
192,99 m overall 183,56 m between perpendiculars |
|
Breadth |
27,86 m extreme |
|
Draught |
11,20 m |
|
Depth |
15,50 m moulded |
|
Speed |
Max.: 19,5 knots Service: 18,0 knots |
|
Built |
2003 |
|
Keel laid |
29.05.2002 |
|
Launch date |
16.06.2003 |
|
Date of completion |
28.11.2003 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. |
|
Yard number |
439G |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W-Hudong 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm diesel engine 15.875 kW at 105,0 rpm Manufacturer: Hudong Heavy Machinery Co.Ltd. (B&W), Shanghai |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 30,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 198,0 m² Year of manufacture: 2001 Manufacturer: Dalian Marine Diesel Co., Ltd. |
|
Generators |
2x MAN 7L23/30H diesel generatorsets each 1.060 kVA 1x MAN L23/30H diesel generatorset 910 kVA |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 170 kVA |
|
Batteries |
2x Receivers each 6.500 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 3x Receivers each 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 900 kW, forward |
|
Hold & Hatches |
Hold 1: 15,40 x 12,80 m 20,40 x 12,80 m Hold 2 (twin): 25,60 x 10,32 m 25,60 x 10,32 m Hold 3 (twin): 32,00 x 10,32 m 32,00 x 10,32 m Hold 4 (twin): 25,60 x 10,32 m 25,60 x 10,32 m Hold 5: 12,80 x 20,64 m |
|
Hold capacity |
34.600 m³ |
|
Unobstructed deck space |
90,00 x 25,00 m |
|
Tank capacities |
Ballast: 12.196,5 m³ Fuel oil: 2.908 m³ |
|
Cargo gear |
1x Crane forward - SWL 45 t 2x Cranes each - SWL 320 t combined 640 t 1x Crane aft - SWL 100 t |
|
Manager |
Rickmers Shipmanagement GmbH & Cie. KG |
|
Operator |
Rickmers Group |
|
Registered owner |
Willric Shipping Co. Ltd. |
|
Latest data adjustment |
25 May 2016 |
