Westerschelde 18 August 2018 |
 |
 |
|
| Westerschelde 13/09/14 | Westerschelde 24/08/15 | |
|
Name |

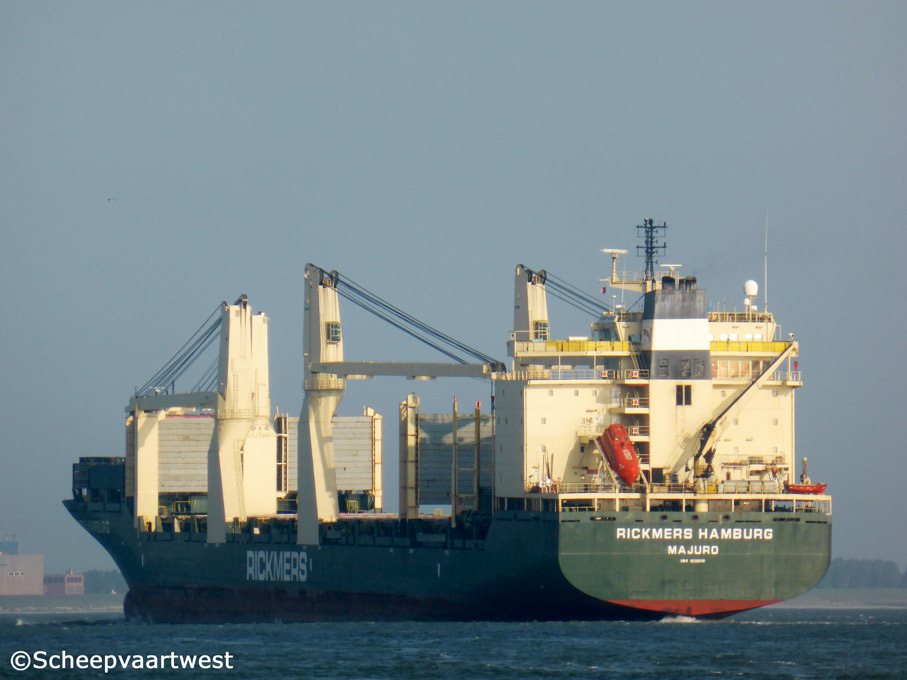

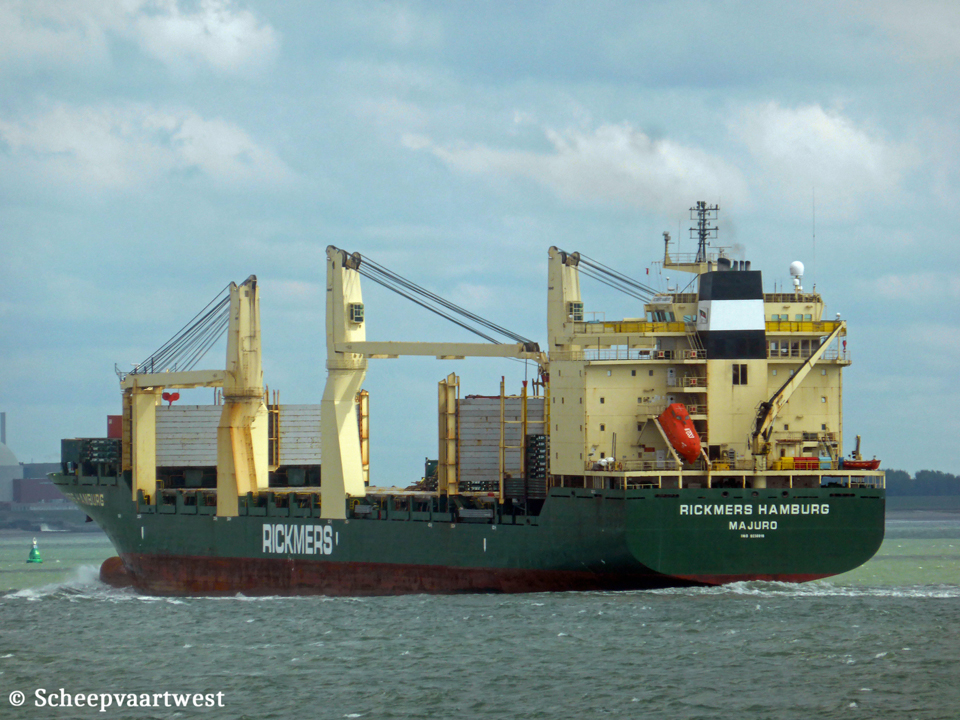

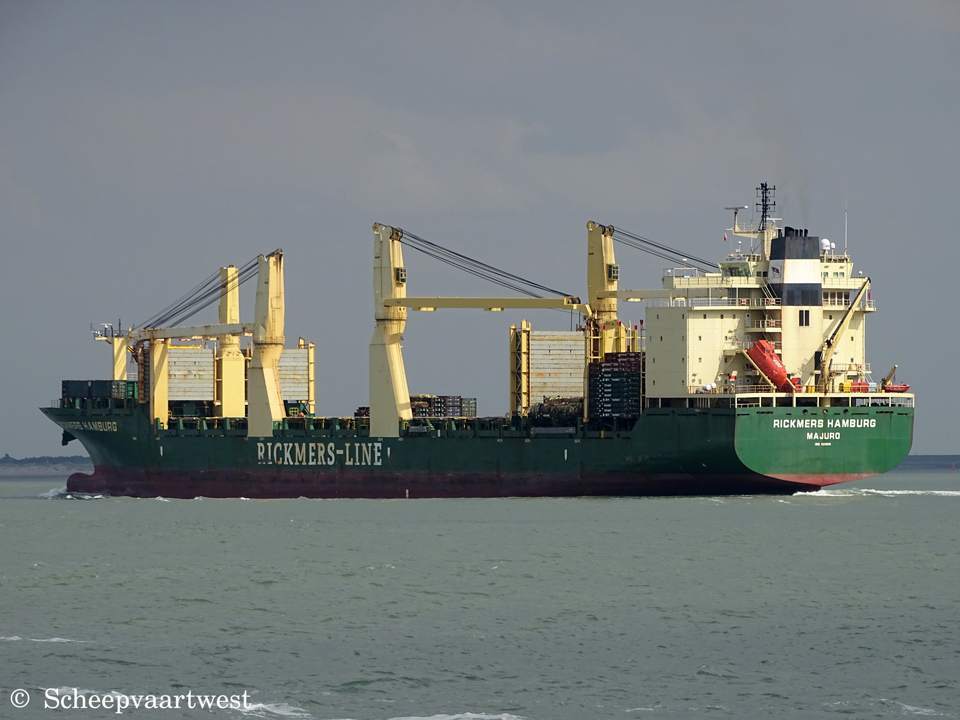

RICKMERS HAMBURG |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9238818 |
|
Call sign |
V7DS3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.119 t Suez: 23.617 t |
|
DWT |
Summer: 29.980 t |
|
NT |
9.752 t Panama: 20.277 t |
|
Number of 20ft containers |
1.868 |
|
Container capacity 14 t |
1.350 homogeneous load |
|
Reefer plugs |
150 Reefer plugs on deck |
|
Length |
192,92 m overall 183,56 m between perpendiculars |
|
Breadth |
27,80 m moulded |
|
Draught |
Summer: 11,20 m |
|
Forecastle |
37,95 m |
|
Poop |
16,00 m |
|
Depth |
15,50 m moulded |
|
Speed |
Service: 18,0 knots Max.: 19,5 knots |
|
Built |
2002 |
|
Keel laid |
18/03/2001 |
|
Launch date |
20/08/2001 |
|
Date of completion |
01/06/2002 |
|
Builder |
China Chang Jiang National Shipping Group Corporation Jinling Shipyard 55, Yanjiang Road Nanjing, Jiangsu People's Republic of China |
|
Yard number |
JLZ000-102 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.785 kW / 21.159 hp at 105,0 rpm Year of manufacture: 2001 Manufacturer: Dalian Marine Diesel Co., Ltd. 1, Hai Fang Street Xigang District Dalian, Liaoning People's Republic of China |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
Steam boiler, oil fired - 9,0 bar Heating surface: 30,0 m² Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 198,0 m² Year of manufacture: 2001 Manufacturer: Dalian Marine Diesel Co., Ltd. 1, Hai Fang Street Xigang District Dalian, Liaoning People's Republic of China |
|
Electric installations |
1x Plant 440/220 V - 910 kVA 2x Plant 440/220 V - 1.060 kVA 1x Plant 440 V - 170 kVA |
|
Generators |
2x Main diesel generatorsets each 1.060 kW 1x Main diesel generatorset 910 kVA |
|
Emergency generator |
1x Diesel generatorset 170 kVA |
|
Compressed air receivers |
2x Receivers each 6.500 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 3x Receivers each 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 900 kW, forward |
|
Number of holds |
5 Hold#1: 12,80 x 15,40 / 12,80 x 20,40 m Hold#2: (twin) 25,60 x 10,32 m Hold#3: (twin) 32,00 x 10,32 m Hold#4: (twin) 25,60 x 10,32 m Hold#5: 12,80 x 10,32 m |
|
Cargo capacity |
Hold#1: 5.599 m³ / 197.727 ft³ Hold#2: 8.114 m³ / 286.543 ft³ Hold#3: 10.358 m³ / 365.789 ft³ Hold#4: 8.200 m³ / 289.580 ft³ Hold#5: 3.638 m³ / 128.474 ft³ Total: 35.909 m³ / 1.268.114 ft³ |
|
Floor space |
Under Deck: 2.439 m² / 26.253 ft² On Deck: 2.250 m² / 24/219 ft² |
|
Max permitted loads |
Weather deck: 2,50 t/m² Tweendeck: Hold#2: 4,00 t/m² (for all 4 levels) Hold#3: 4,00 t/m² (for all 4 levels) Hold#4: 4,00 t/m² (for all 4 levels) Tanktop: 22,00 t/m² except for hold 1: 13,75 t/m² , for hold 5: 13,5 t/m² |
|
Fuel oil capacity |
2.908 m³ |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Chain Length: 632,50 m |
|
Cargo gear |
1x NMF crane forward - SWL 45 t 2x NMF cranes - SWL each 320 t, combined 640 t 1x NMF crane aft - SWL 100 t |
|
Manager |
ZEABORN Ship Management GmbH & Cie. KG Ludwig-Erhard-Straße 22 20459 Hamburg Germany |
|
Previous manager |
2002 - 2017 Rickmers Shipmanagement GmbH & Cie. KG, 22763 Hamburg - Federal Republic of Germany |
|
Operator |
Rickmers Linie GmbH & Co. KG |
|
Registered owner |
ZEA Hamburg Shipping Limited |
|
Previous owners |
2002 - 2017 Rickmers Hamburg Schiffahrtsges. mbH & Cie. KG, 22763 Hamburg - Federal Republic of Germany |
|
Renamed |
2019 Zea Hamburg Marshall Islands, Majuro 2020 Hamburg Saint Kitts and Nevis - Call sign: V7DS3 |
|
Scrapped |
06/2020 as Hamburg, beached at Alang – India Shree Ram Green Ship Recycling |
|
Latest data adjustment |
19 May 2024 |
