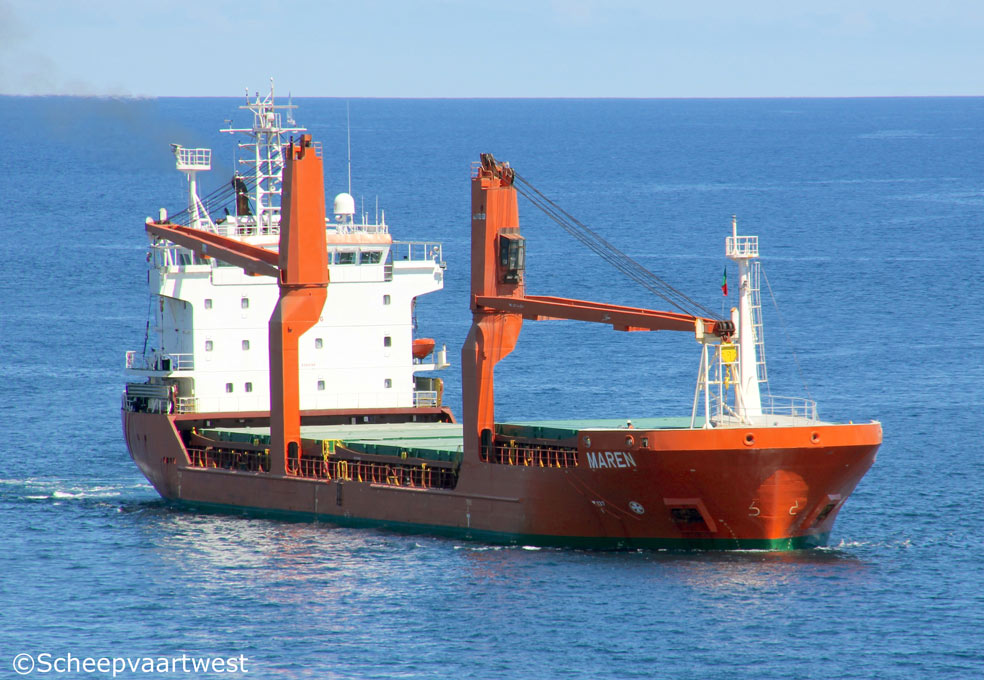

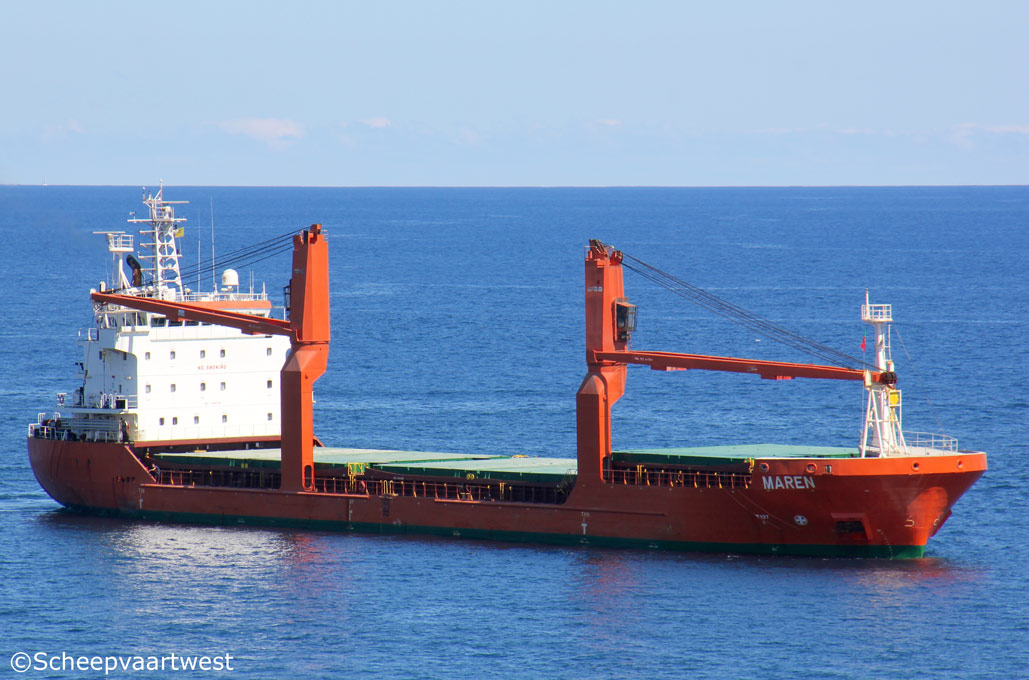

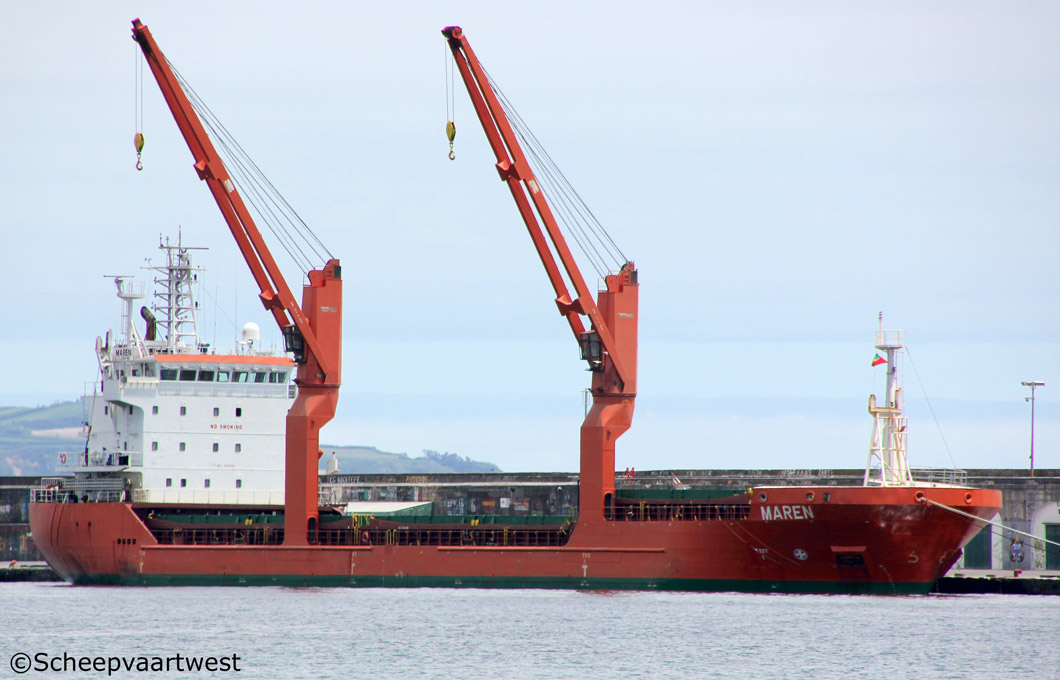

Ponta Delgada - Azores 18 June 2016 |
 |
 |
 |
||

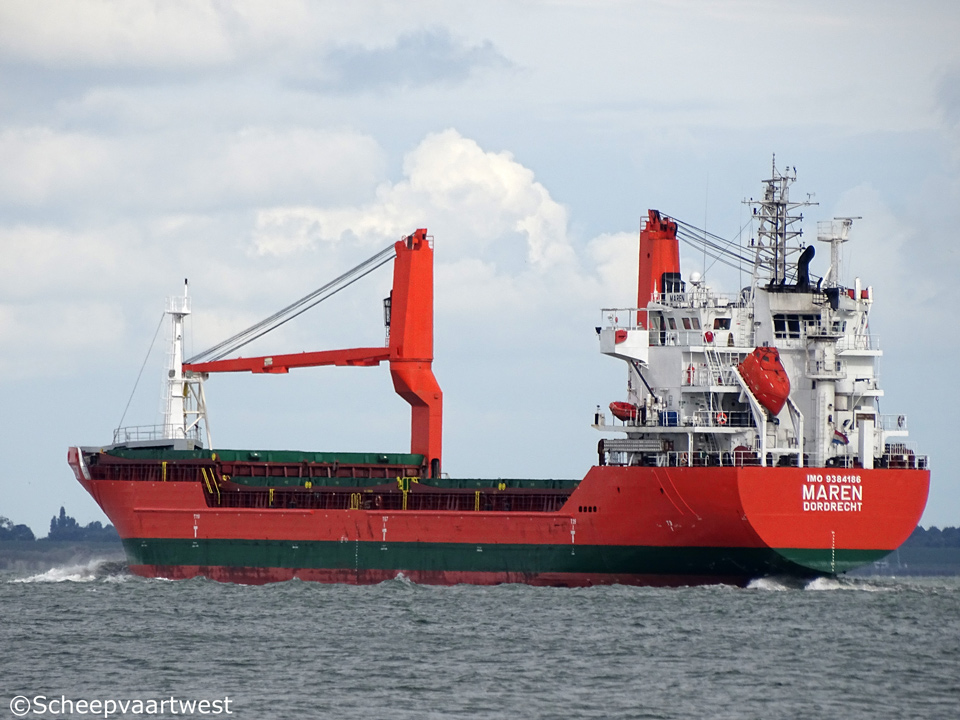

| Ponta Delgada 18/06/16 | Ponta delgada 19/06/16 | Westerschelde 25/07/17 |
|
Name |
MAREN |
|
Previous names |
2007 - 03.2013 Klazina C |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo Geared / Singledeck / Boxy / Steel floor |
|
IMO-number |
9384186 |
|
Call sign |
PCTN |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
Previous flags |
03.2007 - 02.2013 Cowes, Isle of Wight - United Kingdom - Call sign: MIWS |
|
GT |
5.629 t |
|
DWT |
Summer: 8.071 t |
|
NT |
2.877 t |
|
Length |
108,17 m overall 103,90 m between perpendiculars |
|
Breadth |
18,48 m extreme 18,20 m moulded |
|
Draught |
7,06 m |
|
Depth |
9,00 m moulded |
|
Speed |
Service: 11,0 knots |
|
Built |
2007 |
|
Keel laid |
19.11.2004 |
|
Launch date |
23.12.2006 |
|
Date of completion |
19.03.2007 |
|
Builder |
Jiangsu Yangzijiang Shipyard Co. Ltd. |
|
Yard number |
YZJ2005–704C |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W Alpha STX 7S26MC Mk6 - 4 stroke single acting7 cylinder combustion engine 2.800 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite type AQ16 |
|
Generators |
2x Volvo Penta D16C-A main diesel generatorsets each 456 kVA - 440 Volt 60 Hz |
|
Emergency generator |
1x MAN D 2866 LXE 30 diesel generatorset 331 kVA - 440 Volt 60 Hz |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
3x Boxy type cargo Hold 1: 18,80 x 15,00 m (height 11.00 m) - holds start to narrow abt. 2,20 m from the after bulkhead to a width of abt. 6,40 m at the fore peak Hold 2: 29,00 x 15,00 m (height 9,00 m) pure box Hold 3: 28,00 x 15,00 m (height 9,00 m) holds start to narrow abt. 17,0 m from forward bulkhead to a width of abt. 7,60 m at the after bulkhead |
|
Cargo hold capacity |
Hold 1: 95.844 ft³ Hold 2: 137.837 ft³ Hold 3: 130.984 ft³ Total: 364.665 ft³ |
|
Hold ventilation |
6x Air-changes /h |
|
Number of hatches |
3 Hatch 1: 17,50 x 15,20 m Hatch 2: 25,90 x 15,20 m Hatch 3: 25,90 x 15,20 m |
|
Hatch type |
Hydraulically folding type hatch covers |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 2,5 t/m² |
|
Tank capacities |
Ballast: 2.511,9 m³ |
|
Lifting equipment |
Length: 494,20 m Diameter: 46 mm |
|
Cargo gear |
2x Macgregor cranes starboard side mounted - SWL 25,0 t each |
|
Manager |
Noordriver Shipping B.V. |
|
Previous managers |
03.2007 - 11.2012 Carisbrooke Shipping Ltd., Cowes, Isle of Wight - United Kingdom 11.2012 - 02.2013 Stieglis Shipbrokers B.V., Harlingen - The Netherlands |
|
Owner |
Maren Shipping Managent B.V. |
|
Previous names & owners |
03.2007 - 02.2013 Carisbrooke Shipping Ltd., Cowes, Isle of Wight - United Kingdom |
|
Latest data adjustment |
03 July 2016 |
