Westerschelde 26 May 2016 |
|
Name |

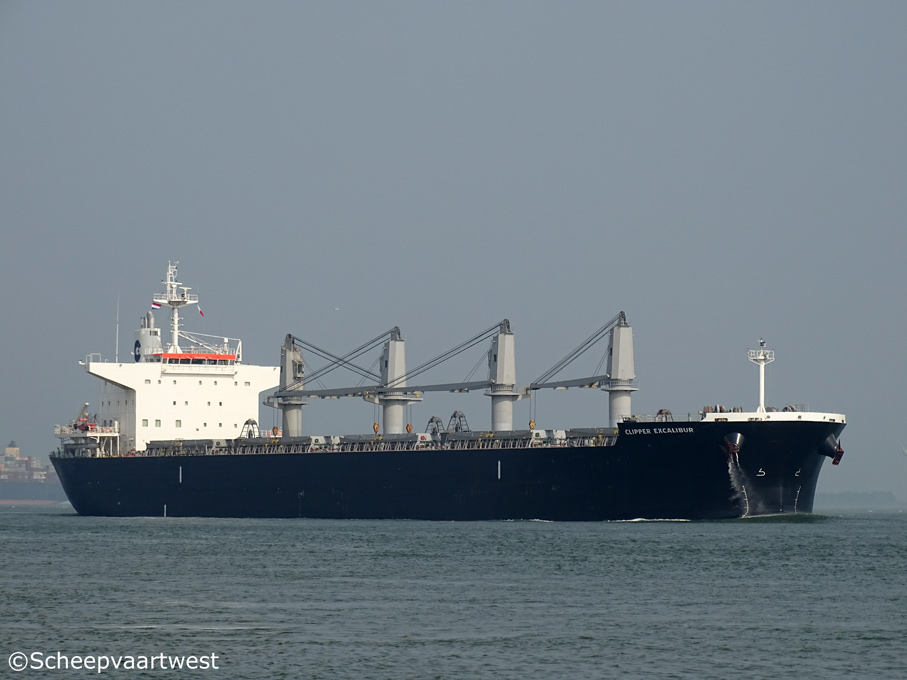

CLIPPER EXCALIBUR |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9636450 |
|
Call sign |
3FQX |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
38.203 t registered |
|
DWT |
Summer: 66.721 t |
|
NT |
21.630 t registered |
|
Length |
199,99 m overall |
|
Breadth |
36,00 m |
|
Draught |
Summer: 12,92 m |
|
Moulded L x B x D |
192,90 x 36,00 x 18,45 m |
|
Registered L x B x D |
193,61 x 36,00 x 18,45 m |
|
Freeboard |
5.577 mm |
|
Depth |
18,45 m moulded |
|
Speed |
Max.: 16,0 knots Service: 14,3 knots |
|
Built |
2013 |
|
Keel laid |
12.12.2011 |
|
Launch date |
08.08.2013 |
|
Date of completion |
06.11.2013 |
|
Builder |
Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Yard number |
1858 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 7 cylinder 500 x 2.214 mm diesel engine 8.470 kW at 99,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 530 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,0 bar Evaporation: 3.00 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generators - 2.416 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 79.691 m³ Grain: 83.102 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 3.037 m³ Fresh water: 426 m³ Water ballast: 20.698 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each Grabs fitted |
|
Manager |
Cleanseas Shipmanagement, Inc. |
|
Operator |
Clipper group |
|
Registered owner |
Southern Route Maritime, S.A. |
|
Latest data adjustment |
12 July 2016 |
