Antwerpen 24 October 2014 |
|
Name |

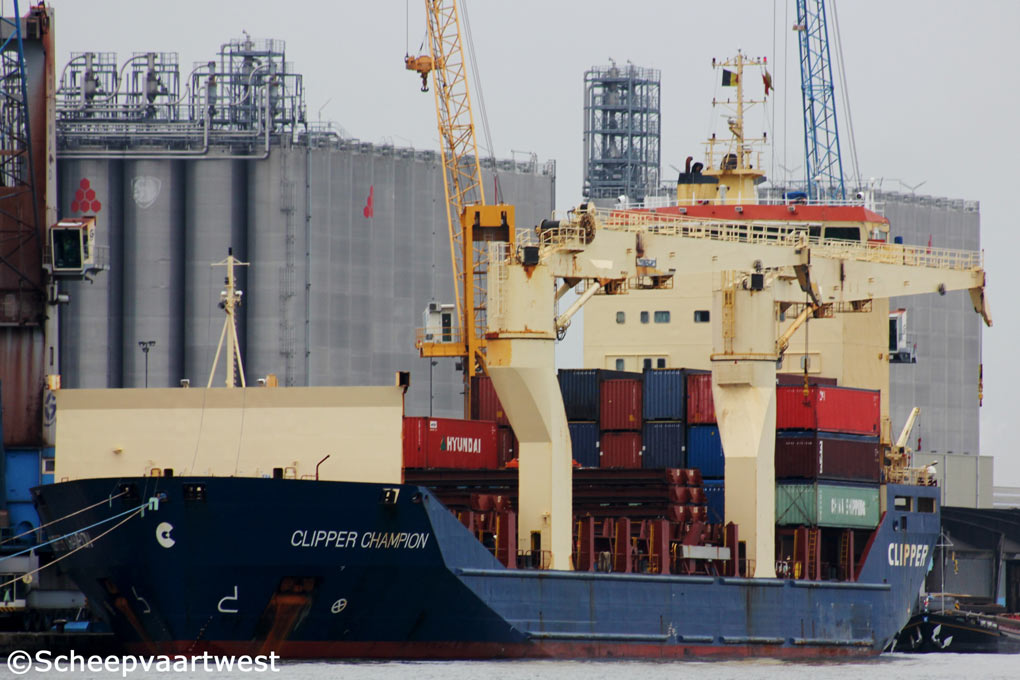

CLIPPER CHAMPION |
|
Previous names |
1998 - 11.1999 Clipper Westoe 11.1999 - 05.2000 Industrial Confidence 05.2000 - 2003 CEC Westoe 2003 - 09.2004 CEC Champion 09.2004 - 04.2007 Nirint Champion 04.2007 - 07.2007 CEC Champion 07.2007 - 01.2012 UAL Congo |
|
Type |
General cargo carrier - Container carrier |
|
IMO-number |
9169861 |
|
Call sign |
C9OH9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
6.714 t Suez: 6.656 t |
|
DWT |
Summer: 8.447 t without tweendeck |
|
NT |
2.890 t Suez: 4.861 t |
|
Number of 20ft containers |
650 without tweendeck pontoons onboard |
|
Reefer plugs |
24 reefer plugs in hold 82 reefer plugs on deck |
|
Length |
100,48 m overall 95,00 m between perpendiculars |
|
Breadth |
20,41 m |
|
Draught |
Summer: 8,20 m |
|
Air draft |
42,50 m |
|
Depth |
11,10 m |
|
Speed |
16,5 knots |
|
Built |
1998 |
|
Keel laid |
19.04.1998 |
|
Launch date |
08.09.1998 |
|
Date of completion |
28.12.1998 |
|
Builder |
Hudong Zhonghua Shipbuilding Group |
|
Yard number |
398 |
|
Hull material |
Steel |
|
Main engine |
Wärtsilä 8L46B - 4 stroke single acting 8 cylinder 460 x 580 mm diesel engine 7.800 kW / 10.605 hp at 500 rpm Builder: Wärtsilä NSD Finland Oy – Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 145 rpm |
|
Shaft generator |
1 |
|
Generators |
3x Main diesel generatorsets each 900 kW |
|
Emergency generator |
1x Diesel generatorset 108 kW |
|
Holds |
1x Box-shaped double skinned cargo hold 64,40 long x 15,20 m wide x 11,75 m high |
|
Cargo capacity |
Bales / Grain 371.863 ft³ / 10.530 m³ without tweendeck 345.165ft³ / 9.774 m³ with tweendeck |
|
Hatches |
1x Large hatch 64,40 x 15,30 m |
|
Hatchs type |
MacGregor non sequential pontoon hatch cover |
|
Heights |
Lower hold - Tweendeck: 5,80 m Tweendeck - Hatch cover: 5,00 m Lower hold - Hatch cover: 11,67 m |
|
Ventilation |
25 air changes per hour (based on empty hold) |
|
Tank capacities |
Heavy fuel oil (IFO): 881 m³ Diesel oil (MGO): 113,5 m³ Water ballast: 3.035 m³ Fresh Water: 59 m³ |
|
Cargo gear |
2x Electro-hydraulic cranes mounted in port side. Combinable up to 300 t for 150 t cranes and for 200 t cranes up to 400 t. |
|
Manager |
Clipper Fleet Management |
|
Commercial manager |
Clipper Projects A/S |
|
Operator |
Clipper |
|
Owner |
Clipper Project Shipping |
|
Latest data adjustment |
25 November 2014 |
