Antwerpen 26 May 2016 |
 |
| Antwerpen 18/02/19 |
|
Name |

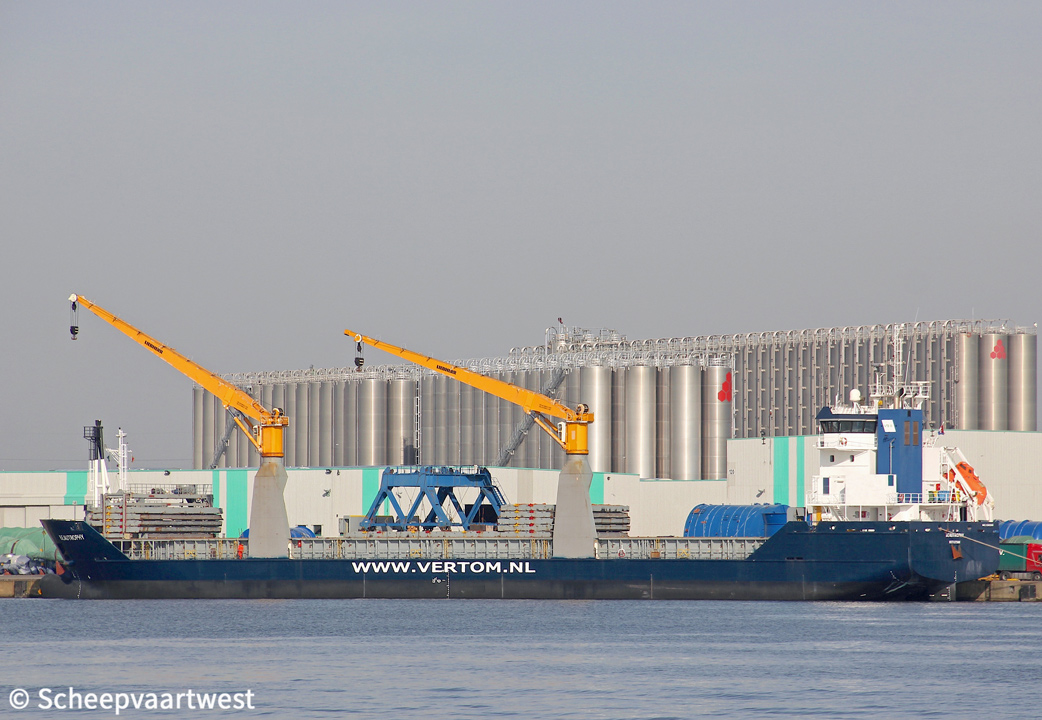

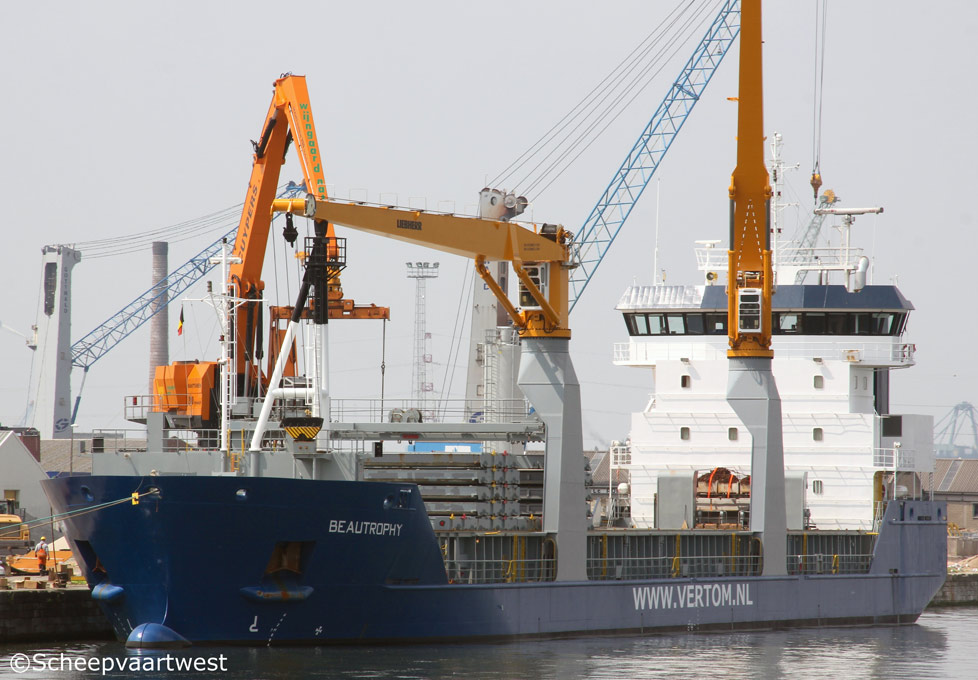

BEAUTROPHY |
|
Type |
Multi-purpose cargo ship - Equipped for dangerous goods - Strengthened for heavy cargo Damen Combi Freighter 7200 |
|
Basic functions |
Transport of bulk - steel coils - containers - forest products |
|
IMO-number |
9369306 |
|
Call sign |
PBNR |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flag |
2008 - 2016 The Netherlands, Sneek - Call sign: PBNR |
|
GT |
5.132 t |
|
DWT |
Summer: 7.120 t |
|
DWCC |
Summer: 7.215 t Winter: 6.980 t |
|
NT |
2.861 t |
|
Number of 20ft containers |
In hold: 171 On deck: 165 Total: 336 |
|
Length |
118,14 m overall 115,70 m between perpendiculars |
|
Breadth |
15,90 m moulded |
|
Draught |
Max.: 6,54 m 4,60 m ballast |
|
Air draft |
27,90 m |
|
Depth |
8,80 m moulded |
|
Speed |
Max: 13,6 knots |
|
Built |
2008 |
|
Delivery date |
13/11/2008 |
|
Builder casco |
Zaliv Shipyards Kerch Ukraine |
|
Builder completion |
Damen Shipyards Bergum Bergum The Netherlands |
|
Yard number |
9404 |
|
Hull material |
Steel |
|
Movable bulkheads |
4x Tweendeck parts can be placed as 2 movable grain bulkheads (10 positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm combustiuon engine 2.970 kW / 4.038 bhp at 750 rpm Manufacturer : M.A.K. Caterpillar, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - Diameter: 4.250 mm |
|
Shaft generator |
1x 435 kVA |
|
Generators |
2x Main diesel generatorsets each 325 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller 300 kW electrically driven |
|
Number of holds |
2x Full box Hold 1: 32,66 x 13,20 x 9,70 m height length tanktop complete box 21,33 m Hold 2: 51,12 x 13,20 x 9,70 m height length tanktop complete box 45,44 m |
|
Tweendeck |
Hold 1: 21,33 X 13,20 X 5,30 m height Hold 2: 53,50 X 13,20 X 5,30 m height Hold 2: 51,12 X 13,20 m when 4 tweendeck pontoons stored ("Hanging") |
|
Lower hold |
Hold 1: 32,66 X 13,20 X 3,80 m height (length tanktop complete box 21,33 m) Hold 2: 3,80 m height |
|
Hold capacity |
10.510 m³ - 371.155 ft³ |
|
Number of hatches |
2 Hatch 1: 53,00 X 13,20 m Hatch 2: 32,82 X 13,20 m |
|
Pontoon hatch covers |
13 |
|
Hatches type |
Weatherdeck hatches pontoon type, tweendecks pontoon type, operated by gantry crane and cargo cranes |
|
Max. permitted loads |
Tanktop: 17,0 t/m² suitable for heavy cargo capable to load steel coils of max 4,5 t each Hatch covers: 1,6 t/m² |
|
Tank capacities |
HFO (IFO 380): 497 m³ Gas oil: 36 m³ Lub oil clean: 34 m³ Dirty oil: 10 m³ Sludge: 19 m³ Sewage: 52 m³ Potable water: 52 m³ Ballast water: 3.028 m³ |
|
Cargo gear |
2x Cargo cranes: SWL 40,0 t each at 24,00 m reach SWL 32,0 t each at 28,00 m reach |
|
Accommodation |
For captain, officers and crew for a total of 11 persons with heating, ventilation and air-conditioning |
|
Manager |
Vertom Shipping & Trading B.V. Rotterdam The Netherlands |
|
Previous manager |
10/2018 - 09/2013 Unisea Shipping B.V.,8606 VP Sneek - The Netherlands 09/2013 - 05/2021 Focus Shipmanagement B.V.; Sneek - The Netherlands |
|
Owner |
Vertom Beautrident B.V. Rotterdam The Netherlands |
|
Previous owner |
10/2008 - 05/2021 Beautrophy B.V., Sneek - The Netherlands |
|
Renamed |
08/06/2021 Beautrident G.D. Luxembourg, Luxembourg City - Call sign: LXIR Owner: Vertom Beautrident B.V., Rotterdam - The Netherlands Manager: Vertom Shipping & Trading B.V., Rhoon - The Netherlands |
|
Latest data adjustment |
05 August 2016 |
