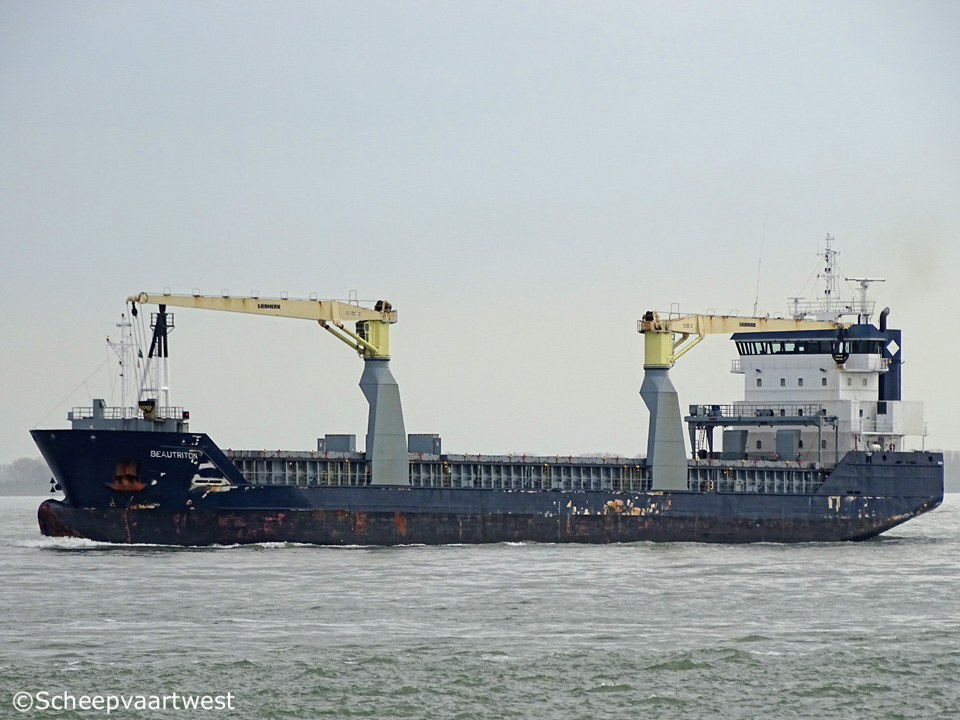

Westerschelde 14 March 2020 |

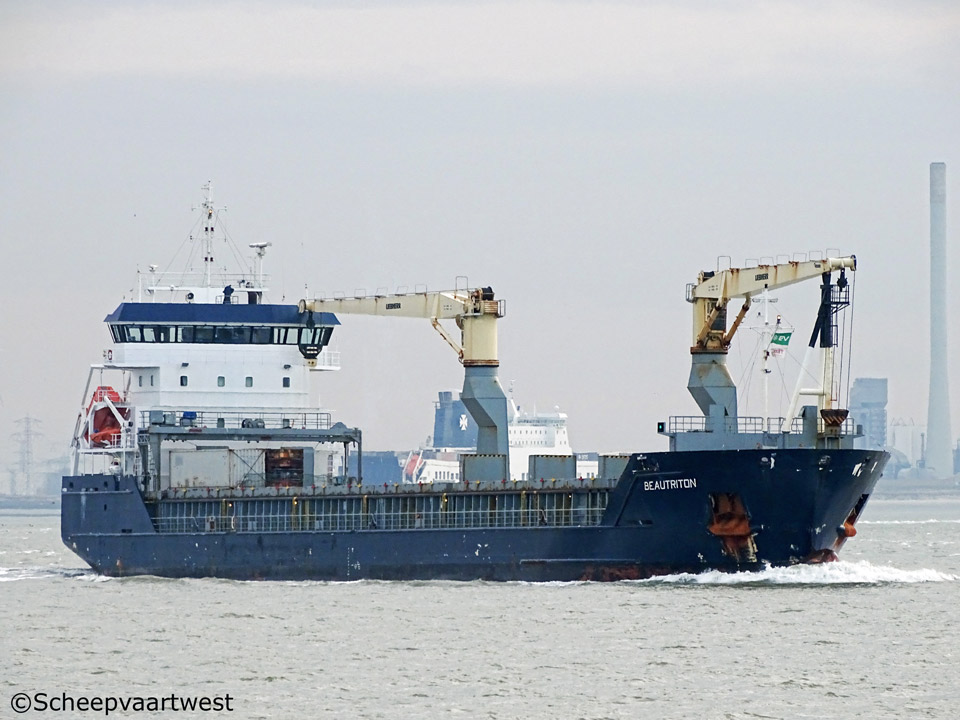

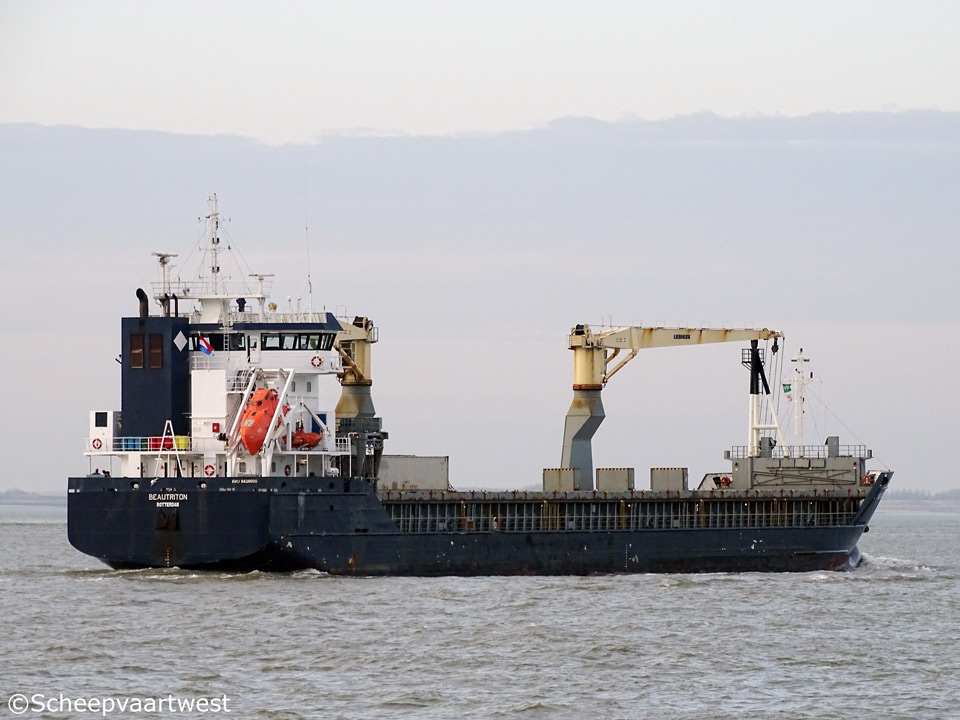

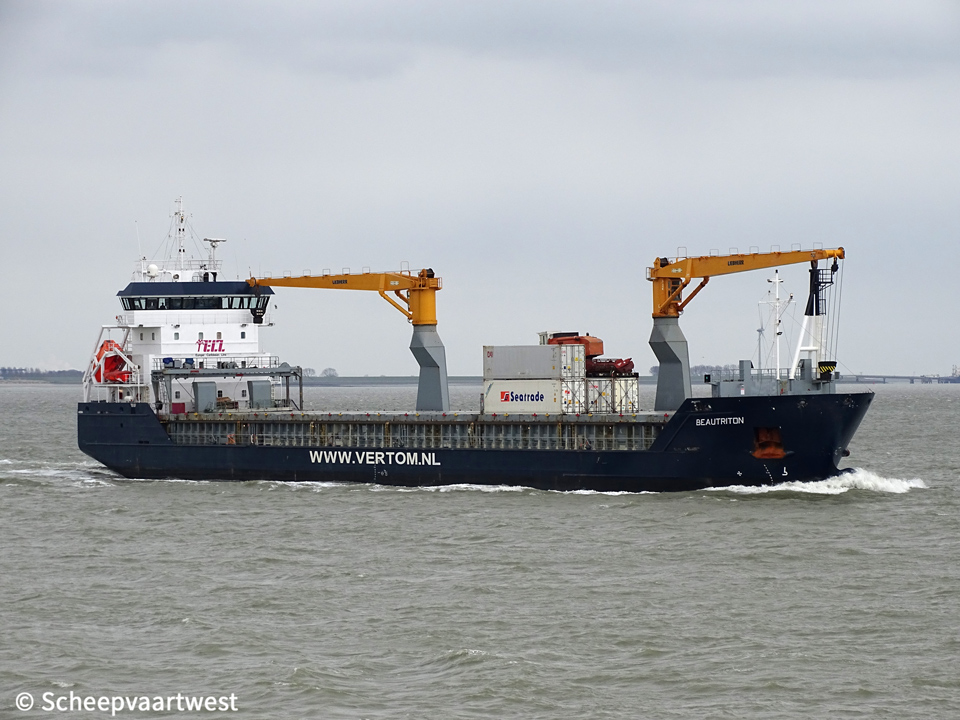

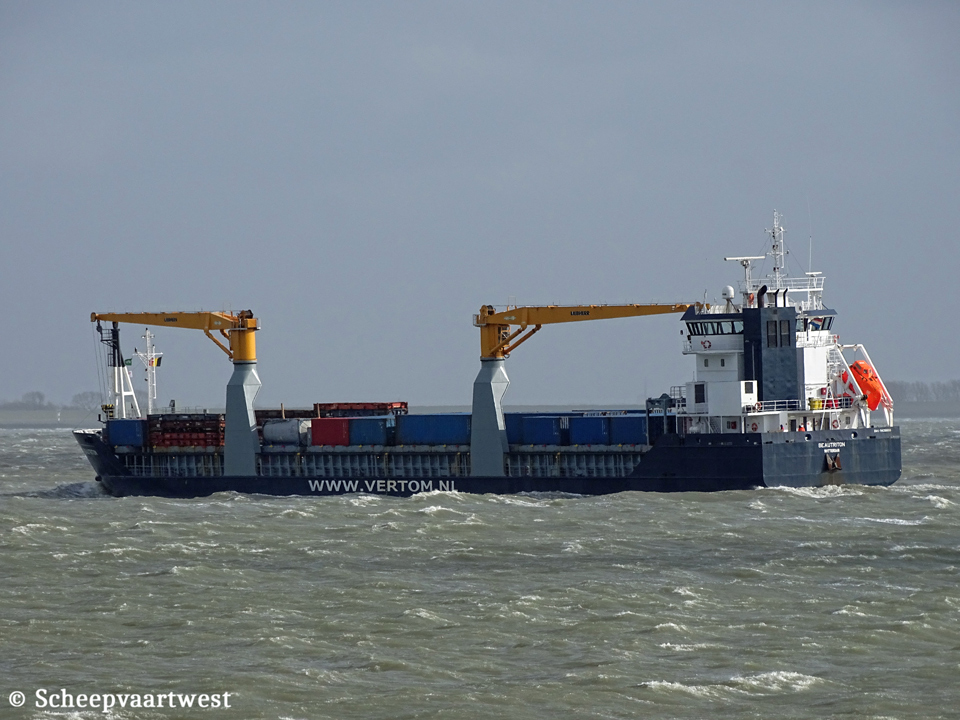

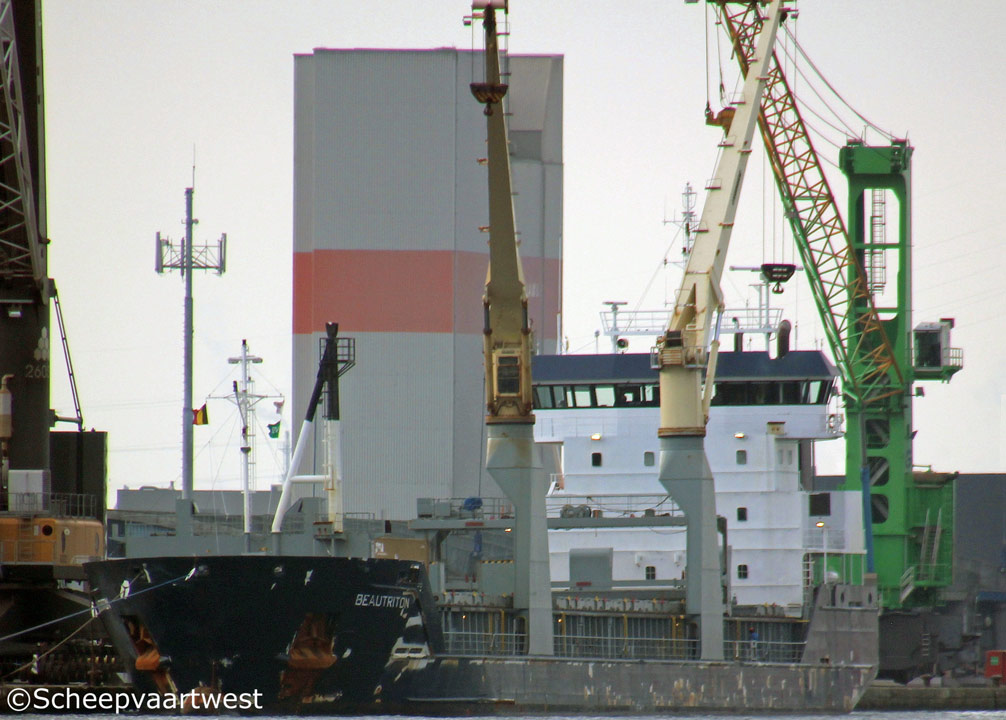

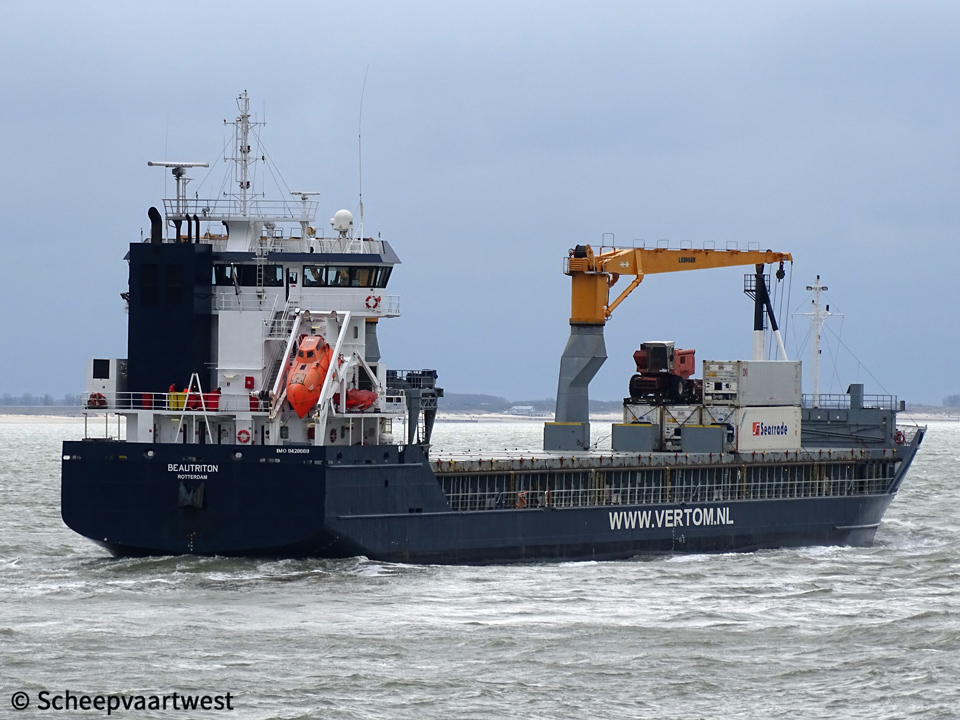

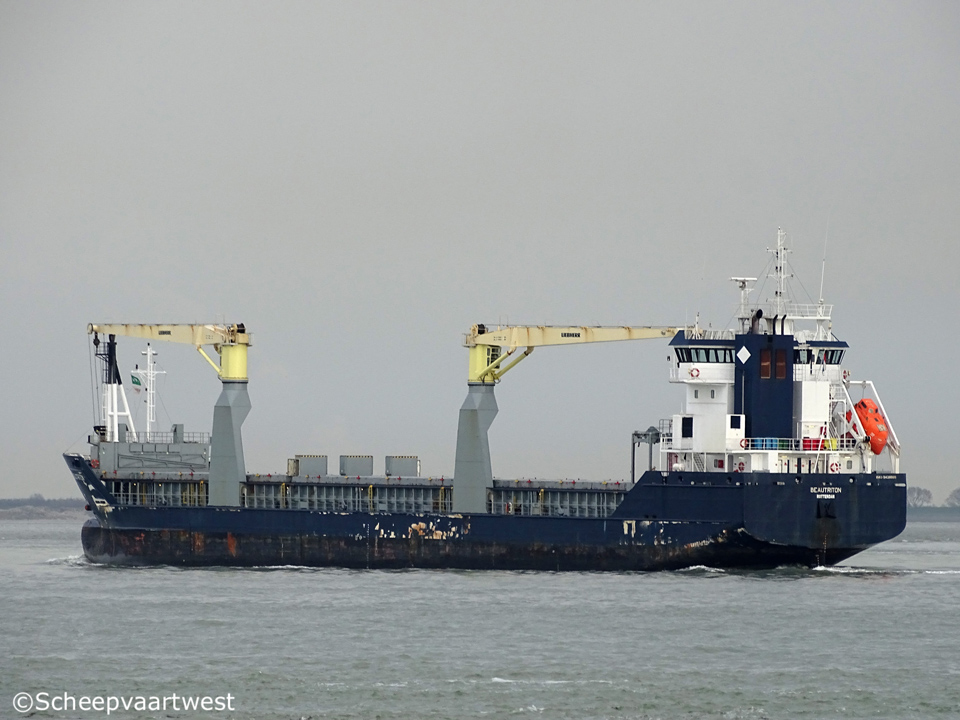

Westerschelde 14/03/20 | Westerschelde 28/01/17 | Westerschelde 28/01/17 | Antwerpen 23/11/16 | Westerschelde 01/04/17 | Westerschelde 01/04/17 |
Westerschelde 9428669 |
Name |
BEAUTRITON |
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Geared multi-purpose box shaped single/tween decker |
IMO-number |
9428669 |
Call sign |
PHQC |
Flag |
The Netherlands |
Port of registry |
Rotterdam |
Previous flags |
06/2009 - 03/2016 The Netherlands, Sneek - Call sign: PHQC |
GT |
5.132 t |
DWT |
Summer: 7.120 t |
DWCC |
Summer: 6.450 t Winter: 6.250 t |
NT |
2.891 t |
Number of 20ft containers |
In hold: 171 On deck: 165 Total: 336 |
Length |
118,14 m overall 112,29 m between perpendiculars |
Breadth |
15,90 m moulded |
Draught |
Summer: 6,65 m Winter: 6,51 m |
Depth |
8,80 m |
Speed |
13,7 knots |
Built |
2009 |
Keel laid |
16/07/2007 |
Launch date |
16/08/2008 |
Date of completion |
09/10/2009 |
Builder casco |
Zaliv Shipyards Kerch Ukraine |
Builder completion |
Damen Shipyards Bergum Bergum The Netherlands |
Yard number |
9406 |
Hull material |
Steel |
Movable grain bulkheads |
4x t/d part placeable as bulkhead in @ 10 pos. |
Continuous decks |
1 |
Main engine |
1x Mak 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.147 bhp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
Propellers |
1x Controllable pitch propeller |
Shaft generator |
1x Stamford 534E |
Generators |
2x Saab-Scania D1262M diesel generatorsets |
Bow thruster |
Yes |
Number of hold |
2 Hold 1: 32,60 x 13,20 x 9,70 m Tweendecks hold 1: 19,35 x 13,20 x 4,60 m Hold 2: 51,10 x 13,20 x 9,70 m Tweendecks hold 2: 53,50 x 13,20 x 4,60 m |
Cargo hold capacity |
10.510 m³ / 371.155 ft³ |
Hold ventilation |
6x Air-changes p/h |
Hatch cover |
13x Pontoon hatchcovers |
Max. permitted loads |
Tanktop: 17 t/m² Hatchcovers: 1,60 t/m² Tweendeck: 3,00 t/m² |
Tank capacities |
Ballast: 2.943 m³ |
Lifting equipment |
1x Gantry crane for hatchcover pontoons |
Cargo gear |
2x Deck cranes - SWL 40,0 t each 24,80 m reach |
Manager |
Vertom-Bojen Bereederungs GmbH & Co. KG |
Previous managers |
06.2009 - 02.2004 Unisea Shipping B.V., Sneek - The Netherlands 02.2004 - 03.2016 Focus Shipmanagement B.V., Sneek - The Netherlands |
Registered owner |
Beautriton B.V. Sneek The Netherlands |
Latest data adjustment |
25 December 2016 |
